ABB AC 800F

3 Mounting the AC 800F
3-15

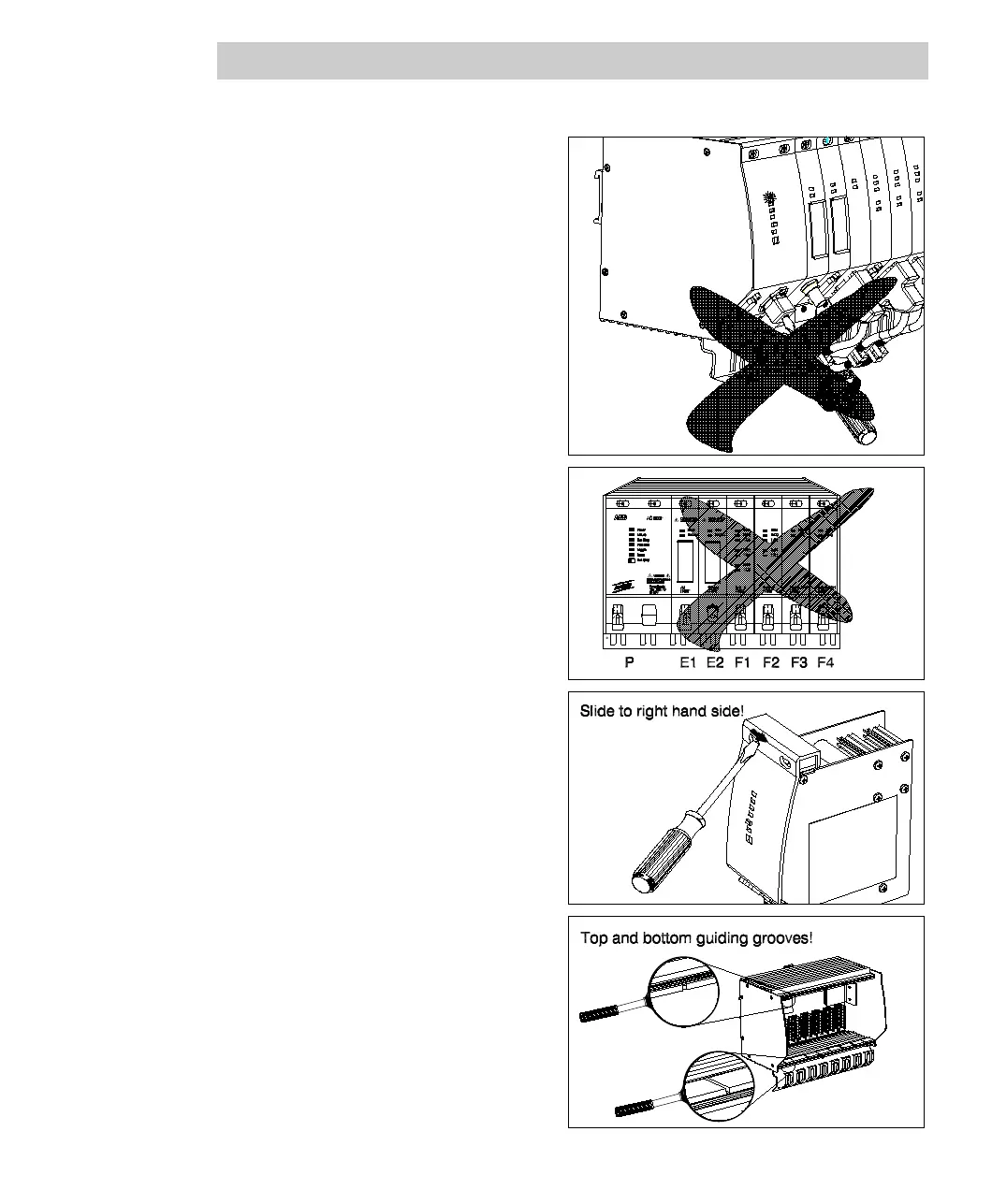

If the power supply is still on:
• Do not unplug the connector !
The connector must not be
used as an on/off switch.
• Don’t undo the screws !
First switch off power !
• Use slot P for the power
supply module.
• Use an appropriate tool to slide
the lock to the right hand side
until the screw head is
completely accessible and the
Lock inscription is no longer
visible.
• Insert the power supply module
into the guiding grooves of
slot P and slide it in.
