ABB AC 800F

3 Mounting the AC 800F
3-34

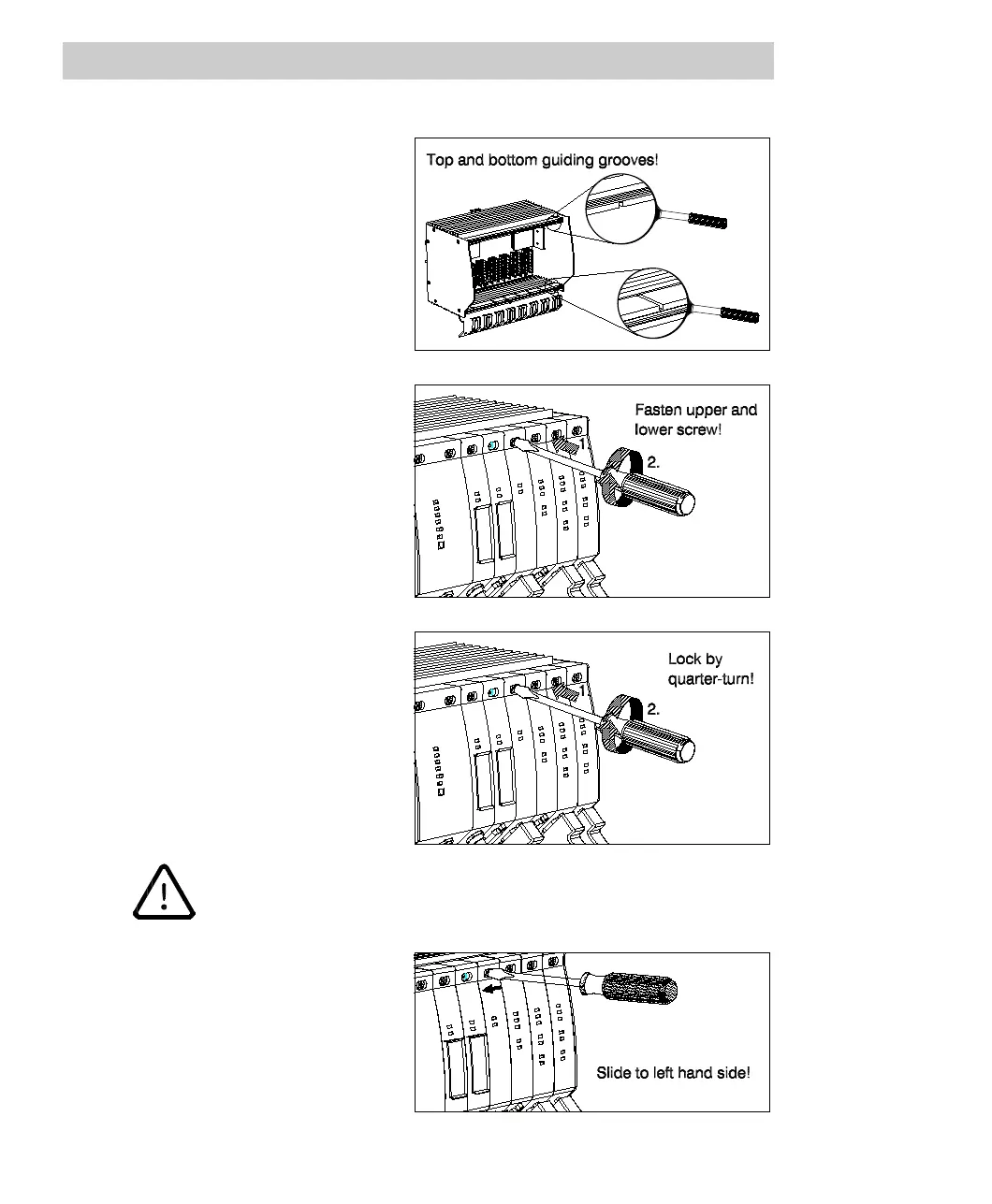

• Insert the fieldbus module into
the guiding grooves of slot
F1 ... F4 and slide it in.
• Fasten fieldbus module at the
top and at the bottom. Slightly
push in the module screws
using a screw driver and turn
clockwise. Only hand-tighten
the screws.
• Alternatively, bayonet locks are
available. When using such
locks, a quarter-turn
(clockwise) will do to fasten the
module.
Check for correct seat and if the connector snaps in the CPU board.
• Push slide-lock to the left
hand side until it snaps in.
–Done !
