MECHANICAL INSTALLATION
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
104/266
CAUTION! Hazardous voltage! Make sure that the heat exchanger cables DO
NOT touch the high-voltage carrying DC busbars (2 in Fig. 5-11).

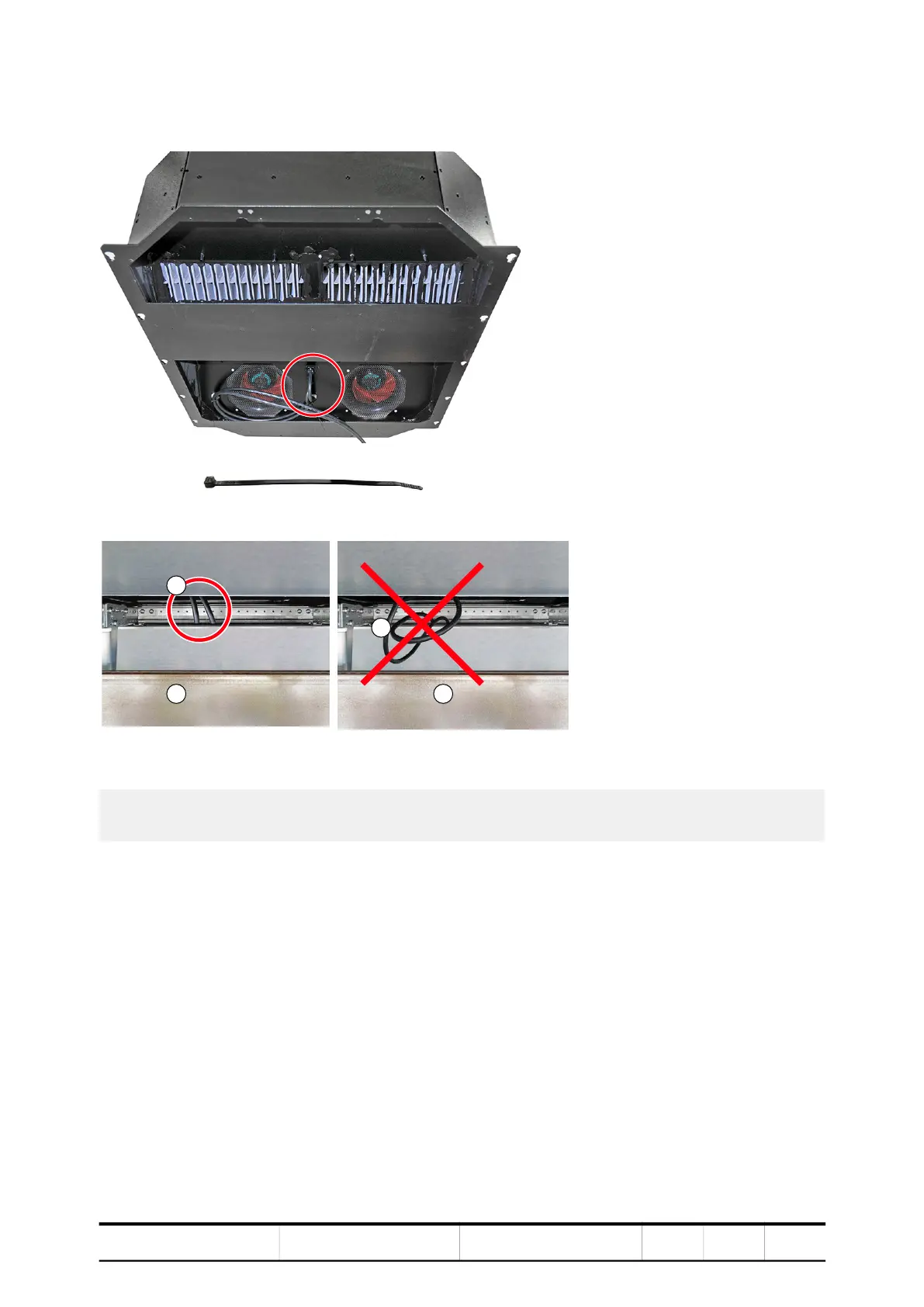

Figure 5-11 Correct and incorrect cable installation
4. Remove the cover on the roof where the heat exchanger is installed.
5. Lift the heat exchanger above the opening in the roof and orientate the heat
exchanger with the LEDs (circle) pointing to the front of the cabinet.
1) Correct cable installation
2) DC busbar
3) Incorrect cable installation
1
2 2
3
