8.4.2.1. Lamp test
The illuminated push buttons on the doors can be tested with the lamp test
function as described in the firmware manual, see “Appendix G - Signal and
parameter table”.
8.4.3. Semi-redundant drive control panel (drive backup control)
The semi-redundant drive system applies to single drives with an even number of
inverter units.
A semi-redundant drive system consists of the following features:
– One single-motor drive with double or quadruple inverter units for one
common motor.
– One common control unit for the whole drive system.
– Transfer between full- and half-power is not bumpless.
– Line disconnectors are provided in the inverter units to separate the inverters
from the motor.
Note: The configurations shown here are typical examples. Different
configurations are possible. The optional ISU can be used to split up the drive
lineup in half-power mode by opening the DC link.

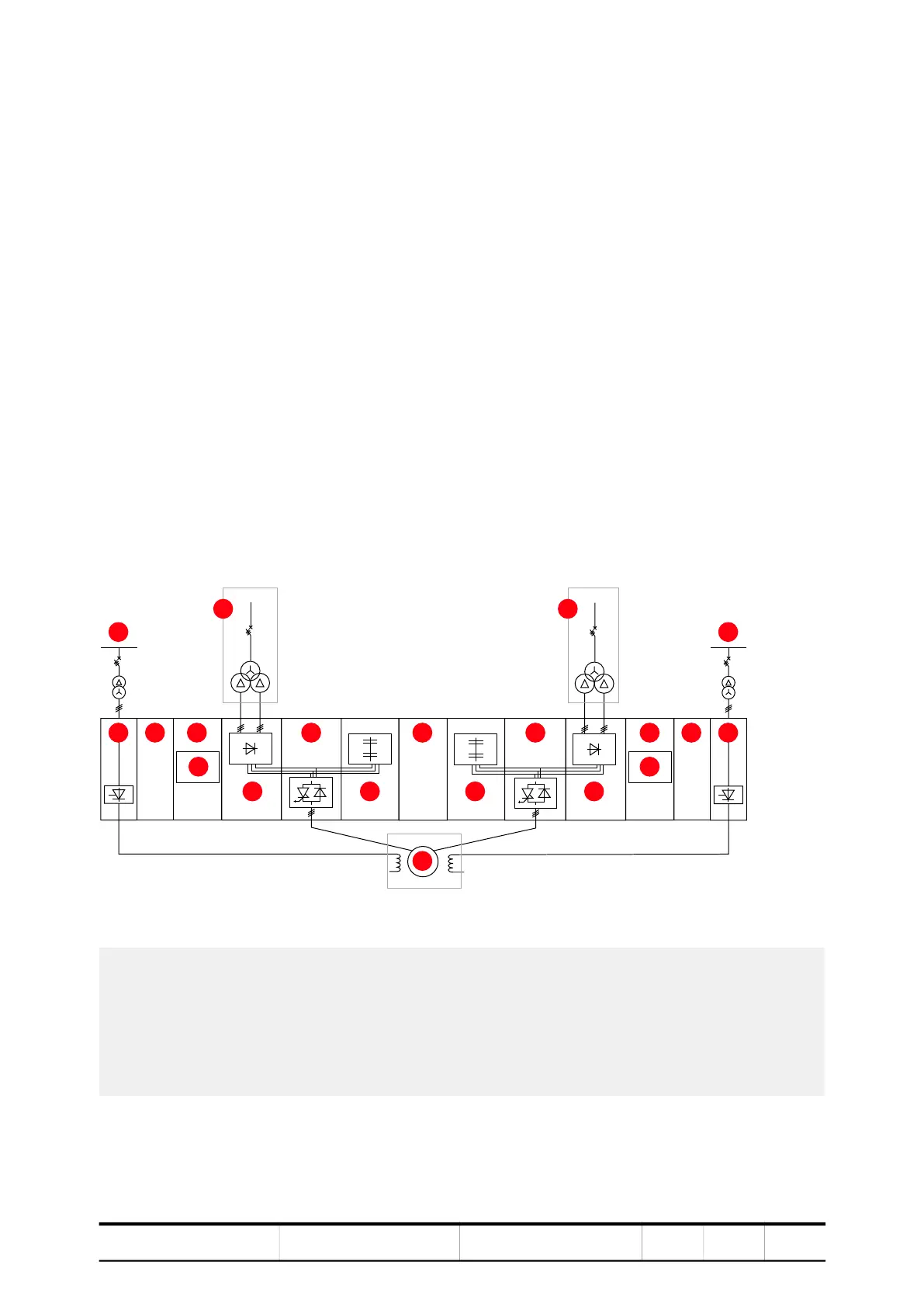

Figure 8-3 Typical semi-redundant drive configuration
1) Excitation power
2) Mains
3) EXU
4) WCU
5) COU
6) Control
7) LSU
8) INU
9) CBU/RBU
10) ISU
11) Motor
1 1
2 2
3 344 5 5
6 6
7 7
8 8
9 9
10
11
