ABB ACS6080 - Figure 6-10 Cable Entry Frame with Type 1 Sealing Modules; Table 6-1 Cable Entry Frames for Type 1 Sealing Modules

ELECTRICAL INSTALLATION
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
126/266
Usage

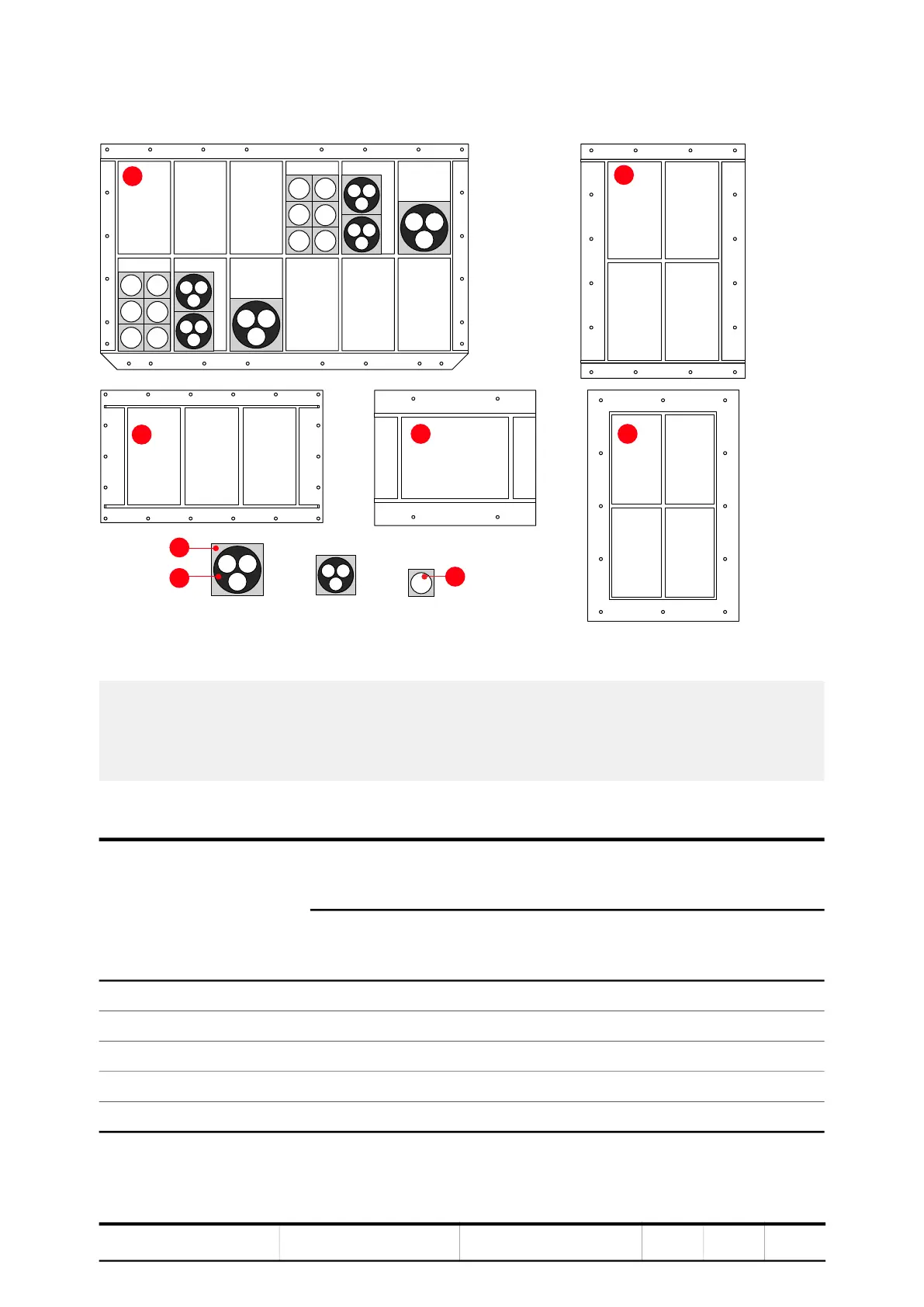

Figure 6-10 Cable entry frame with type 1 sealing modules
1) Cable entry frame 1
2) Cable entry frame 2
3) Cable entry frame 3
4) Cable entry frame 4
5) Cable entry frame 5
6) Sealing module
7) Three-core cable
8) Single-core cable
Table 6-1 Cable entry frames for type 1 sealing modules
Cabinet
entry
frame
Cabinet Maximum number of
sealing modules/
openings
Maximum number of cables/
openings
RM120 RM90 RM60 Single-core
Ø28 - 50
mm
Three-core
Ø68 - 99
mm
Single-core
Ø48 - 71
mm
1 TEU 1000 mm 1 2 6 6 1 2
2 TEU 600 mm 1 2 6 6 1 2
3 ARU 1 2 6 6 1 2
4 BCU 1 1 4 3 1 1
5 EXU 1 2 6 6 1 2
L1 L2
L3
L1 L2
L3
L1 L2
L3
L3
L1 L2
L1
L3L2
L1 L2
L3
L3
L1 L2
L1
L3L2
L1 L2
L3
L1 L2
L3
L1 L2
L3
L1 L2
L3
L1
