PREVENTIVE AND CORRECTIVE MAINTENANCE
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
262/266

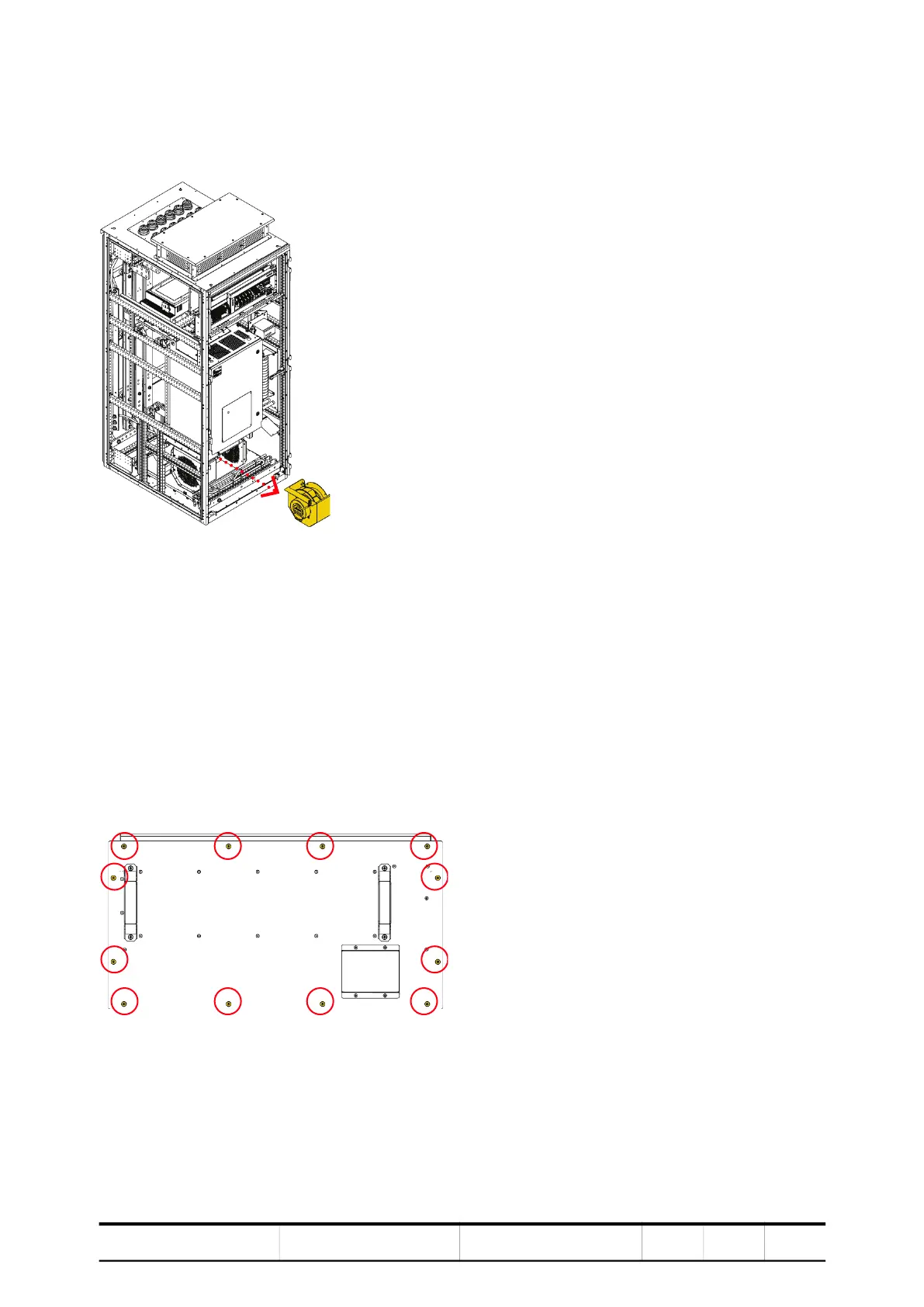

5. Pull the fan unit out of the cabinet.
CAUTION! To prevent the fan from falling onto you, place a support (ie, a box)
underneath.
6. Install the new fan in reverse order of removal.
10.4.19. Replacing the air-to-water heat exchanger of the EXU
1. Switch off the miniature circuit breaker of the heat exchanger.
NOTE – To identify the miniature circuit breaker, see “Appendix D -
Wiring diagrams”.
2. Close valves V30 and V31 in the water-cooling unit.
3. Disconnect the hose from valve V30 to drain the WCU.
NOTICE Expect approximately 5 liters of water.
4. Unscrew the top plate.
