ABB ACS6080 - Routing Cables in a WCU; Routing Cables in a COU Cabinet; Figure 6-29 Preparing Control Cables for EMC Plates

ELECTRICAL INSTALLATION
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
143/266

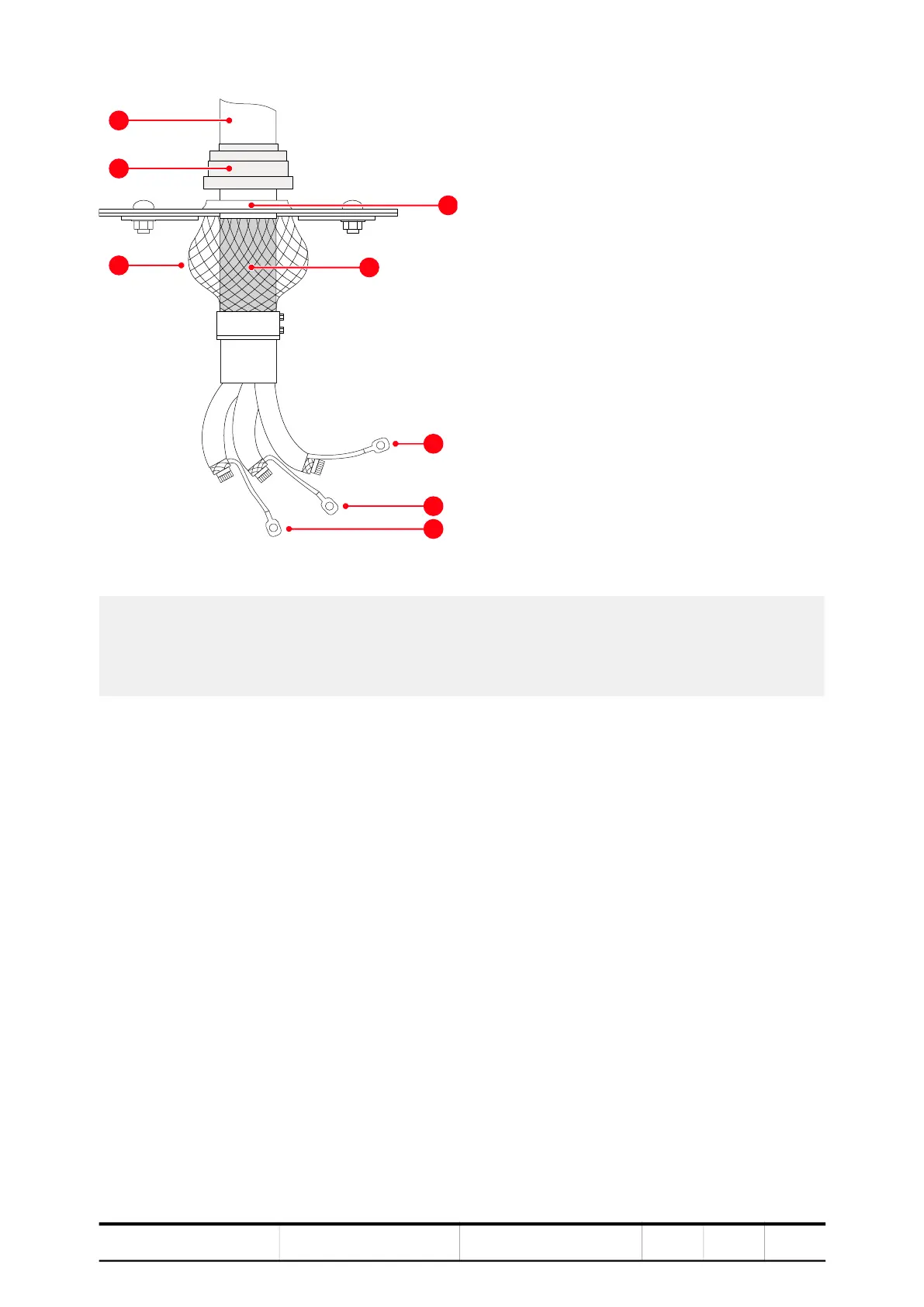

Figure 6-29 Preparing control cables for EMC plates
6.8.5. Routing cables in a WCU
For the available cable routing options in WCU800 and WCU1400, such as top entry
and bottom entry, see “Appendix C - Mechanical drawings”.
6.8.6. Routing cables in a COU cabinet
The serial communications and encoder cables are connected inside a COU.
Top and bottom cable entries are covered with blanking plates.
Materials for cable fitting, EMC requirements and sealing are not supplied.
1) Outer cable sheath
2) Grommet
3) EMC sleeve
4) Plate
5) Cable sheath removed to expose
cable shield
6) Conductor screen extension to connect to
PE terminal
1
4
2
3
5
6
6
6
