5.11. Installing the roof joints and the roof attachments
This section applies to drives that are delivered in several transport units.
5.11.1. Installing roof joints
For information on the fitting position, see “Appendix C - Mechanical drawings”.
– Install the joints at the front and the back of the roof of two adjoining
transport units using the supplied installation material.
NOTE – The joints (1) within a transport unit are factory-installed.

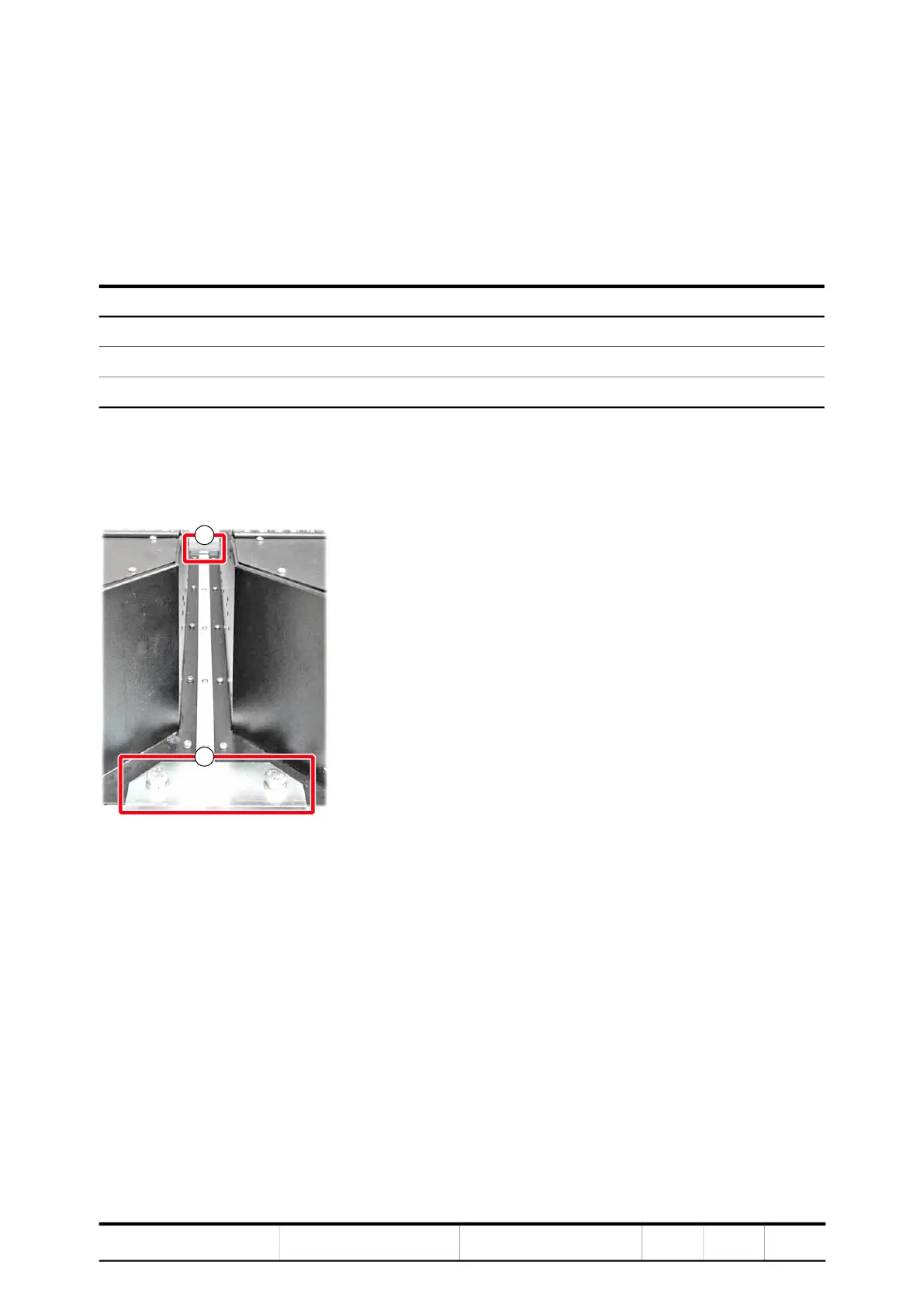

Figure 5-22 Roof joints (1)
Table 5-2 Installation material for roof joints
Item Technical parameter Identification
Connecting plate 8 x 80 x 220 mm 3BHB011552R0001
Hex-head bolt M16 x 40-A2 NB 312350P0464
Washer 17 x 30 x 3 9ABA450078P0008
1
1
