ABB ACS6080 - AMC Circuit Board; Figure 10-3 Leds of AMC Circuit Board

PREVENTIVE AND CORRECTIVE MAINTENANCE
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
212/266
10.3.3.1. AMC circuit board

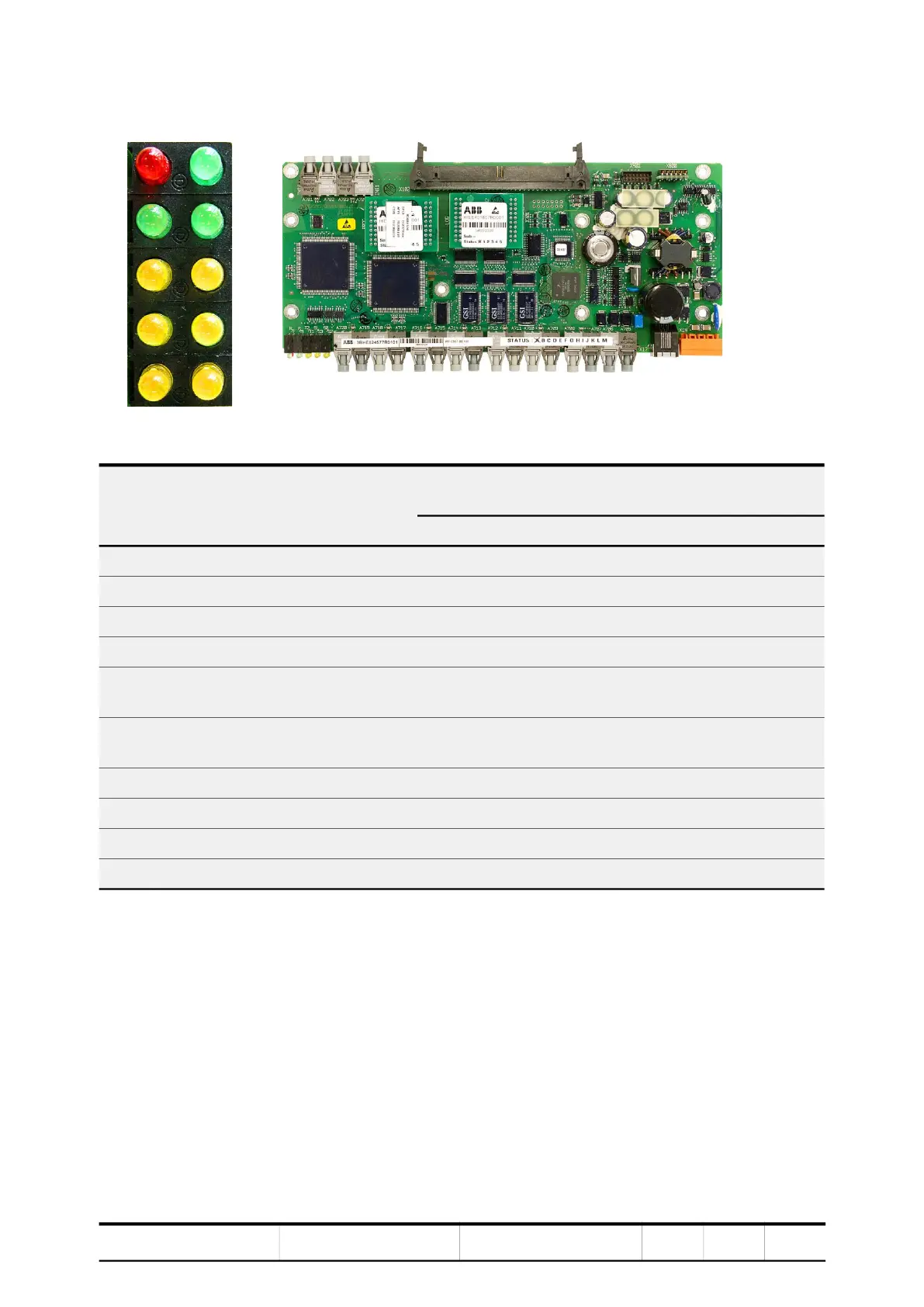

Figure 10-3 LEDs of AMC circuit board
LED Color Description Status when software
has loaded
Status when software
has not loaded
Booting ON Booting ON
F Red Fault ON OFF ON ON
R Green Run OFF OFF OFF OFF
M Green ON OFF ON ON
P Green Supply OK ON ON ON ON
T1 Yellow Receiving data on
DDCS channel 0
Flashing ON / OFF Flashing ON / OFF
T2 Yellow Receiving data on
DDCS channel 3
Flashing ON / OFF Flashing ON / OFF
S3 Yellow OFF OFF OFF OFF
S1 Yellow Flashing OFF Flashing OFF
S2 Yellow Flashing OFF Flashing OFF
S0 Yellow Flashing OFF Flashing OFF
F
M
T1
S3
S2
R
P
T2
S1
S0
