ABB ACS6080 - Frame with Type 2 Sealing Modules; Plates with Cable Glands; Figure 6-11 Cable Entry with Type 2 Sealing Modules; Figure 6-12 Cable Gland

ELECTRICAL INSTALLATION
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
127/266
6.5.2. Frame with type 2 sealing modules

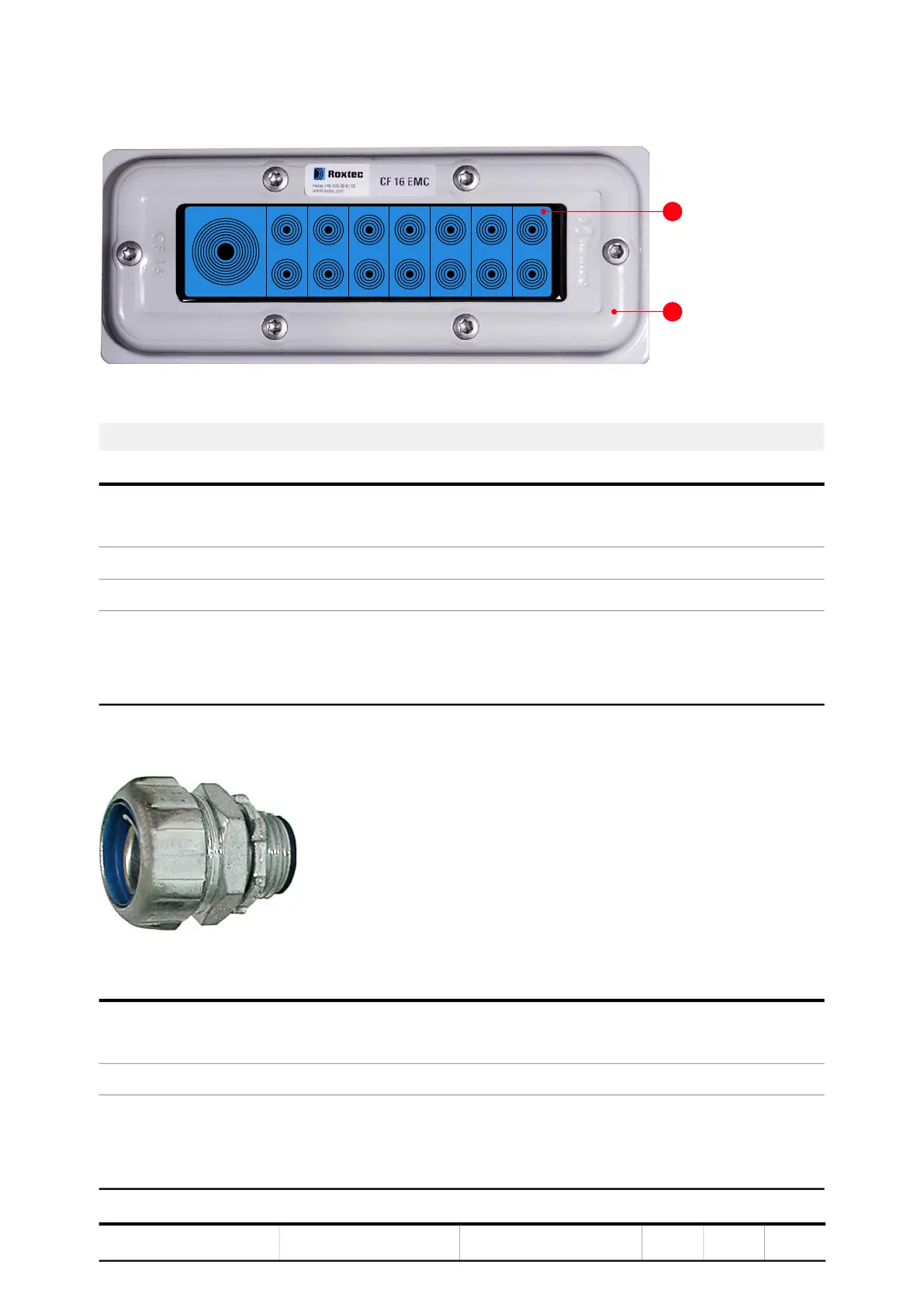

Figure 6-11 Cable entry with type 2 sealing modules
6.5.3. Plates with cable glands
Figure 6-12 Cable gland
1) EMC sealing modules 2) Frame
Usage – Auxiliary power cables
– Control cables
Included in delivery – Cable entry frame
Supplier – Roxtec AB (www.roxtec.com)
Not included in
delivery
– EMC sealing inserts
– Installation tools
– Accessories
Usage – Power cables, ground cables, bonding conductors
– Auxiliary power cables, control cables
Included in delivery – Undrilled gland plate
Not included in
delivery
– Cable glands
– Tools
– Accessories
1
2
