10.2. Identifying electrical equipment
This section describes how to identify electrical devices, cables, and wires.
10.2.1. Device designation
To facilitate the identification in wiring diagrams and parts lists, all devices are
labeled in accordance with IEC 81346-1.

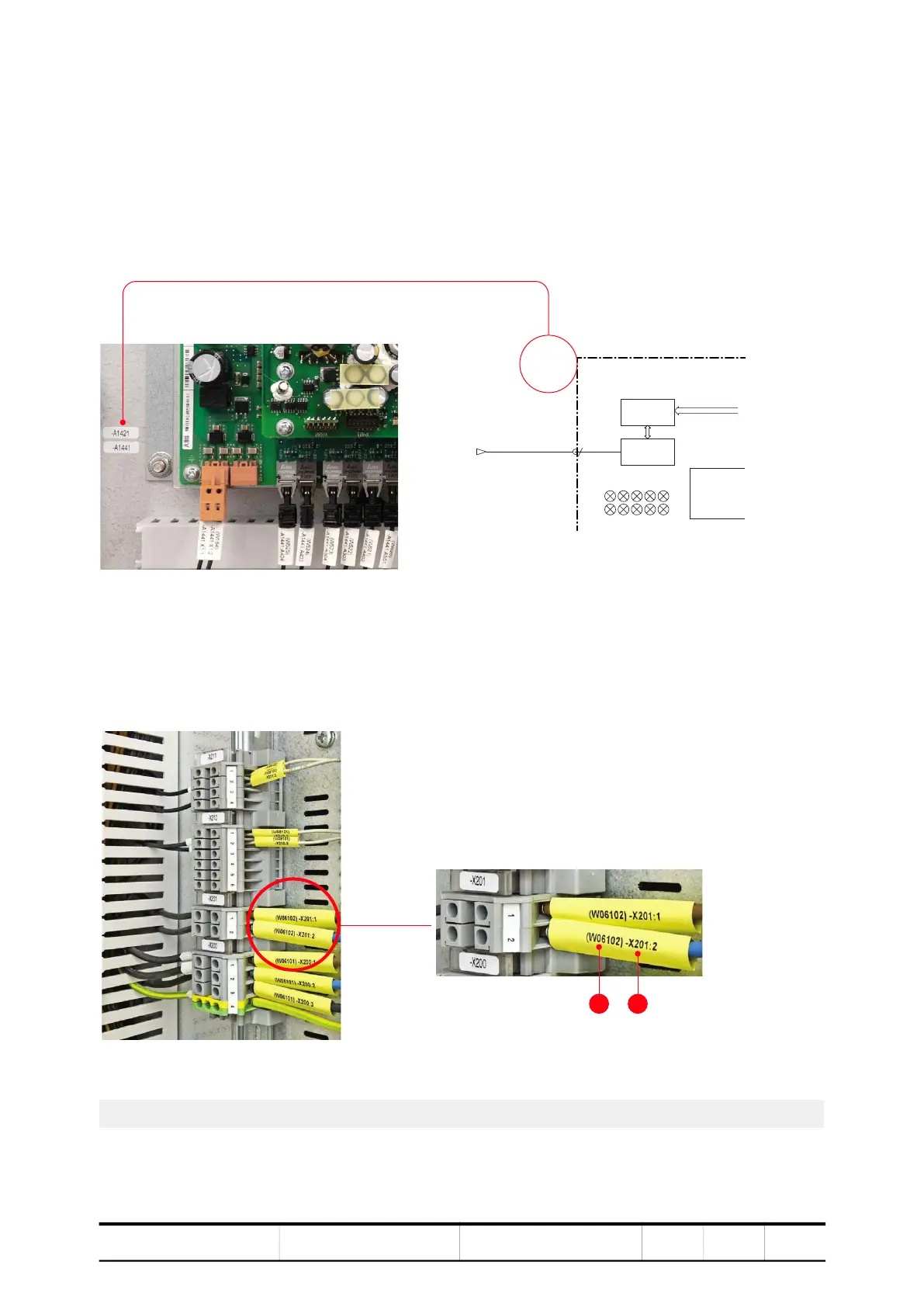

Figure 10-1 Device identification
10.2.2. Cables and wires
Cables and wires in the drive are equipped with marker sleeves that carry the same
identifying number as on the wiring diagrams.
Figure 10-2 Cable and wire designation
1) Wire number 2) Terminal number
–A1421
PP C907AE 275MHz
AMC34–BOARD
CDP312_ARU
141.F2
X17
R P T2 S1 S0
RX
TX
INTO
F M T1 S3 S2
DSP56311
RS485
6
PANEL & BUS
INTERFACE
1
2
