6.7.3. Preparing cables for cable glands
Prepare cables with an outer cable screen or shield for EMC bonding with the metal
enclosure of the cabinet as illustrated in Fig. 6-19.

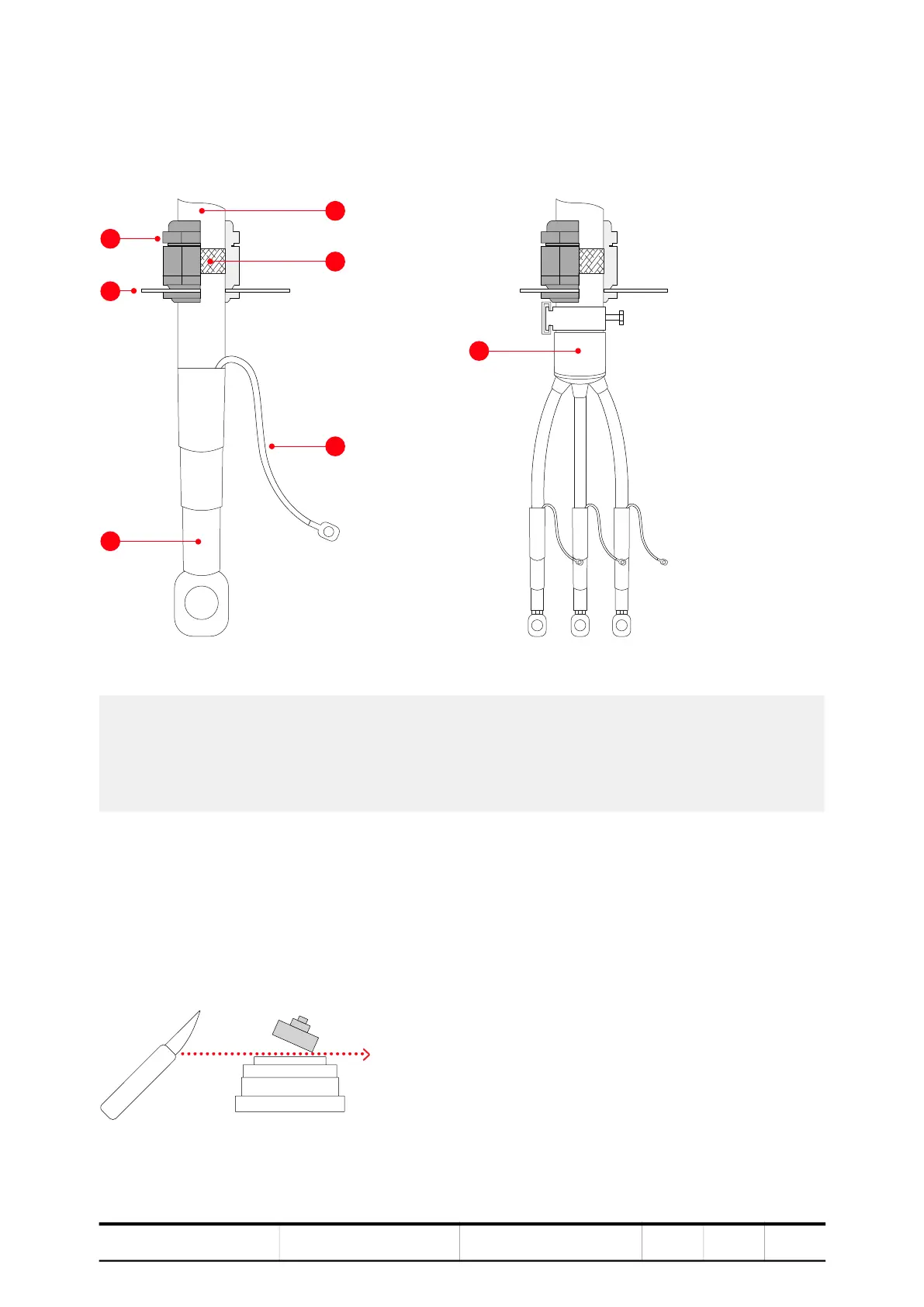

Figure 6-19 Prepare power cables for cable glands
6.7.4. Preparing cables for EMC plates
This section describes how to prepare standard cables for EMC plates as well as
cables for an EXU.
1. Remove the grommets from the entry plate.
2. To ensure proper sealing, cut along the marking that corresponds to the cable
diameter.
1) Cable gland
2) Plate
3) Heat shrinkable termination
4) Outer cable sheath
5) Conductor insulation removed to expose
cable shield
6) Cable screen extension to be connected to
PE ground busbar
7) Sheath seal
6
7
