9.2.5.4. Remote control
In remote control mode, operational commands or reference values usually come
from a higher-level control system via fieldbus or remote I/O.
However, with the following parameter settings it is possible to start and stop the
drive, to set the direction of rotation, and to enter reference values from the CDP
control panel.
– 11.01 EXT1 START/STOP/DIR = 10 (KEYPAD) or
12.03 EXT REF1 SELECT = 1 (KEYPAD) and
12.02 EXT1/EXT2 SELECT = 1 (EXT1)
– 11.02 EXT2 START/STOP/DIR 10 (KEYPAD) or
12.06 EXT REF2 SELECT = 1 (KEYPAD) and
12.02 EXT1/EXT2 SELECT = 2 (EXT2)
– To enter the remote control mode, press the LOC-REM key.
• A blank space indicates full remote control from a higher-level control
system.
• The letter R indicates partial remote control (some commands are enabled
locally).
NOTE – To prevent accidental switching from remote control to local control, see
“9.2.5.2 Disabling / enabling local lock function” on page 203.

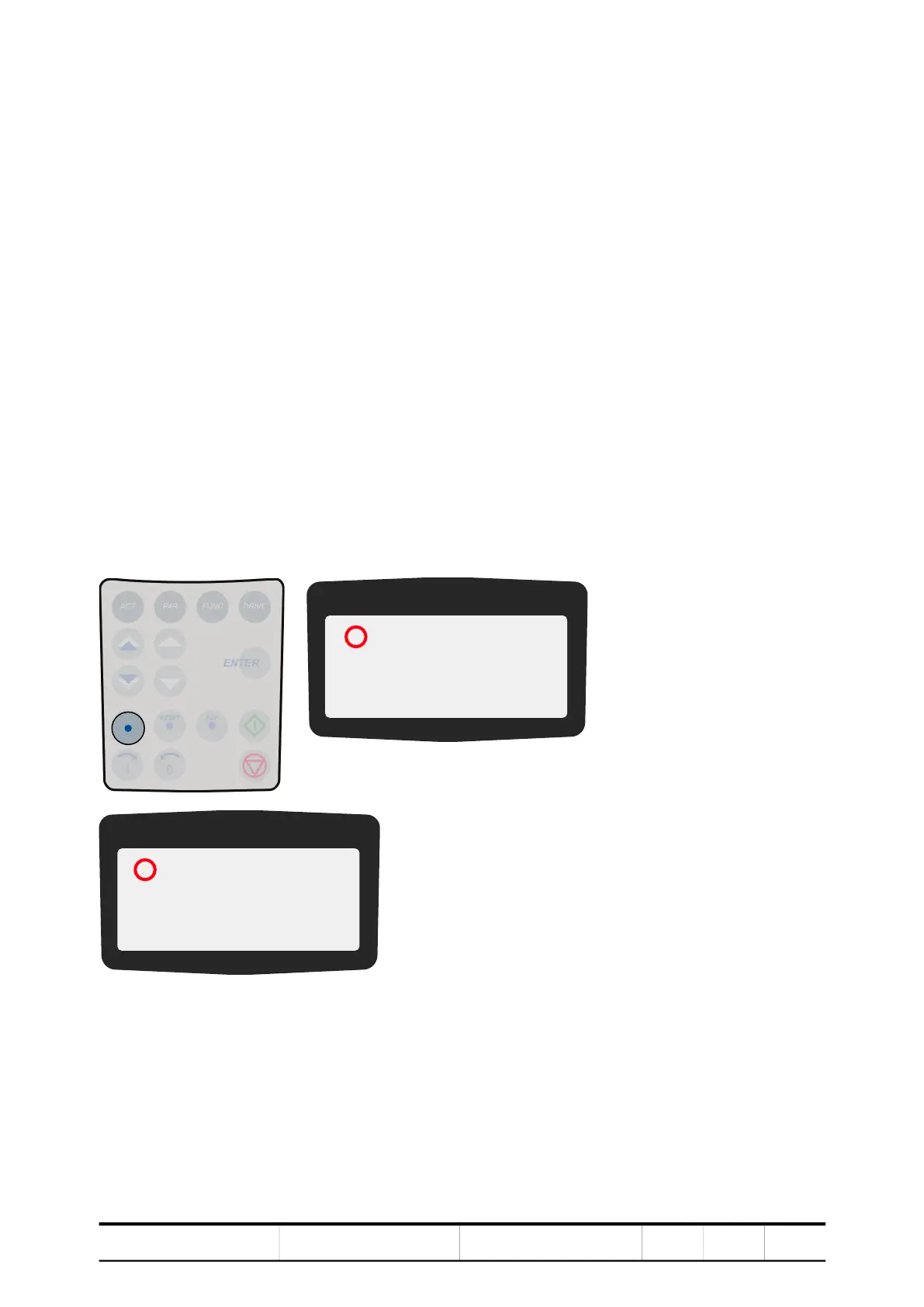

LOC
REM
1 600.0 rpm 0
StateINU ReadyRun
MOTOR SP 0.00 rpm
POWER 0.0 kW
1 R 600.0 rpm 0
StateINU ReadyRun
MOTOR SP 0.00 rpm
POWER 0.0 kW
