6.8.3. Preparing cables for cable glands
Prepare the cables with an outer cable screen for EMC bonding with the metal
enclosure of the cabinet as illustrated in Fig. 6-26.
Figure 6-27 Preparing auxiliary control cables for cable glands
6.8.4. Preparing cables for EMC plates
1. Remove the grommets from the entry plate.
2. To ensure proper sealing, cut along the marking that corresponds to the cable
diameter.
3. Slide the grommet onto the cable and ensure that the grommet fits tightly to
prevent water from entering the cabinet.
NOTE – If cables are routed through the cabinet floor, the grommets can be
discarded.
4. If necessary, remove the entry plate and pull the cable through the entry holes.

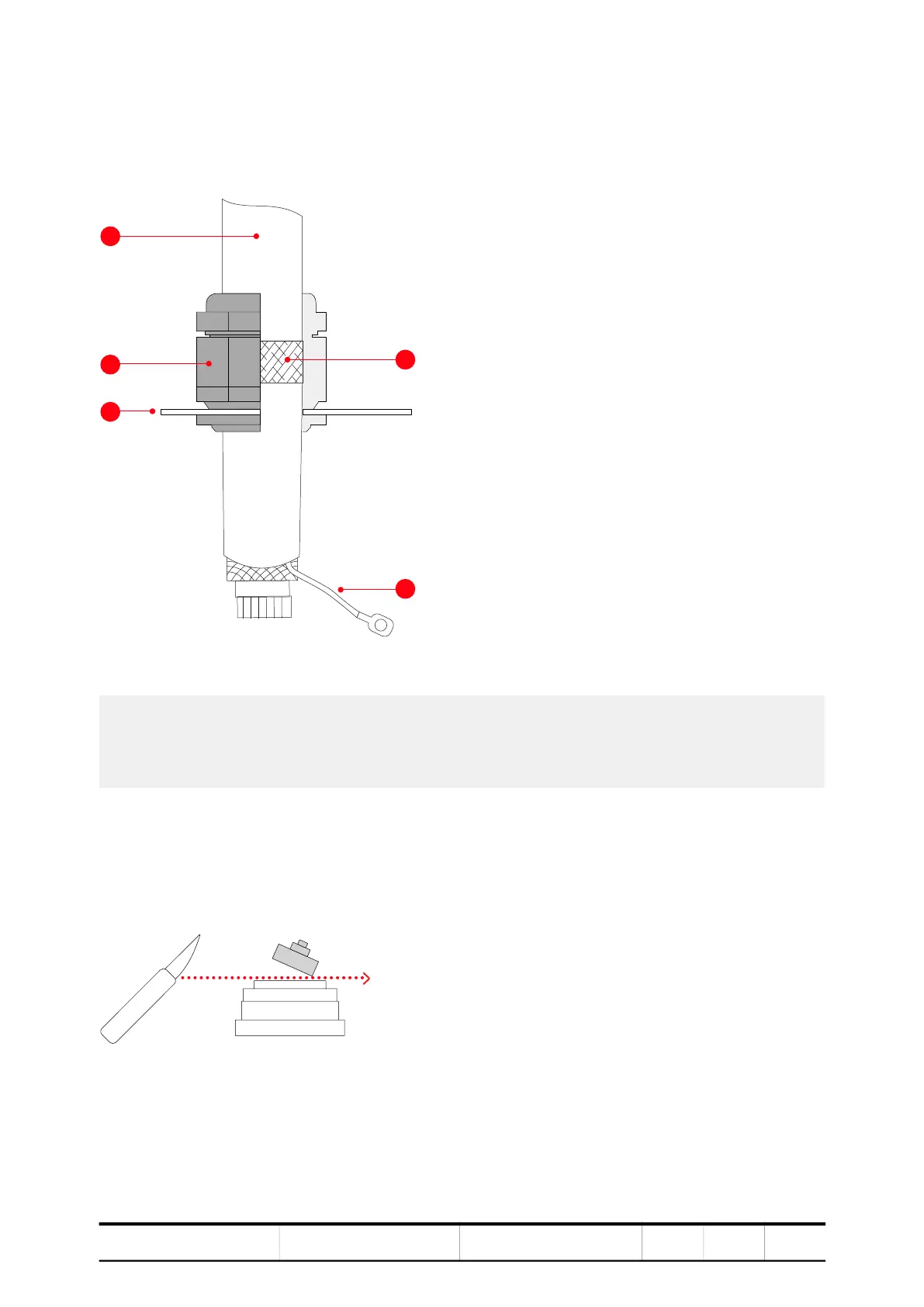

1) Outer cable sheath
2) Cable gland
3) Plate
4) Conductor insulation removed to expose
shield
5) Conductor screen extension to connect to
PE terminal
1
2
