13. Fasten the heat exchanger to the roof with 14 self-tapping M6x12 screws
(HAQN401205P0257).
5.8.2. Removing air-to-air heat exchangers
This section applies to drives that are delivered in several transport units.

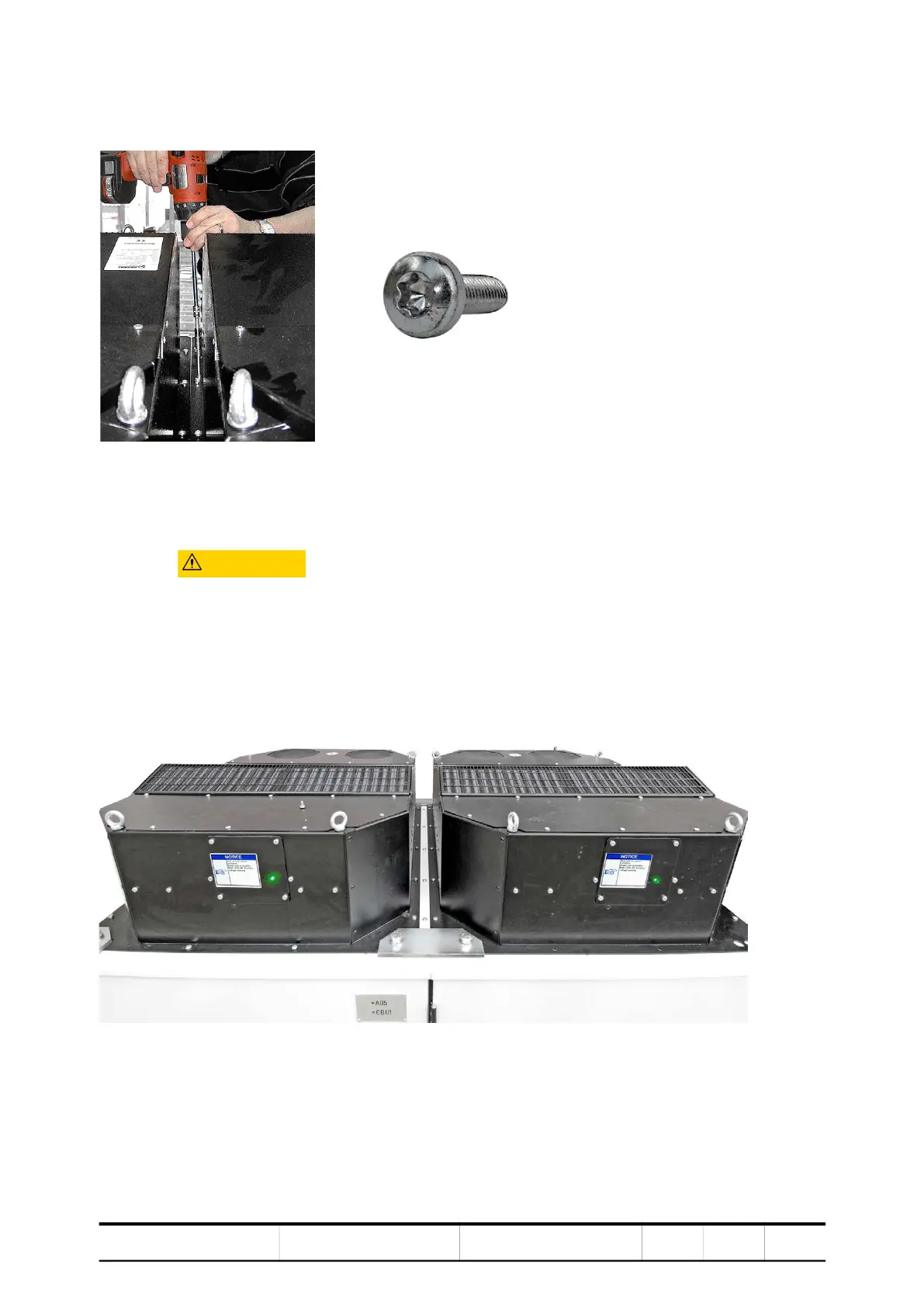

Figure 5-14 Air-to-air heat exchangers (type LT-5-5165-UL)
Air-to-air heat exchangers must be removed and refitted where two transport units
are joined.
Depending on the drive configuration, at least one heat exchanger must be
removed for joining the DC busbars of two adjacent transport units.
CAUTION Heavy object!
An air-air height exchanger weighs approximately 65 kg.
– Observe the installation height of the heat exchanger as well as the
dimensions and weight of the heat exchanger.
– Take appropriate measures for removing and installing the heat
exchanger safely.
