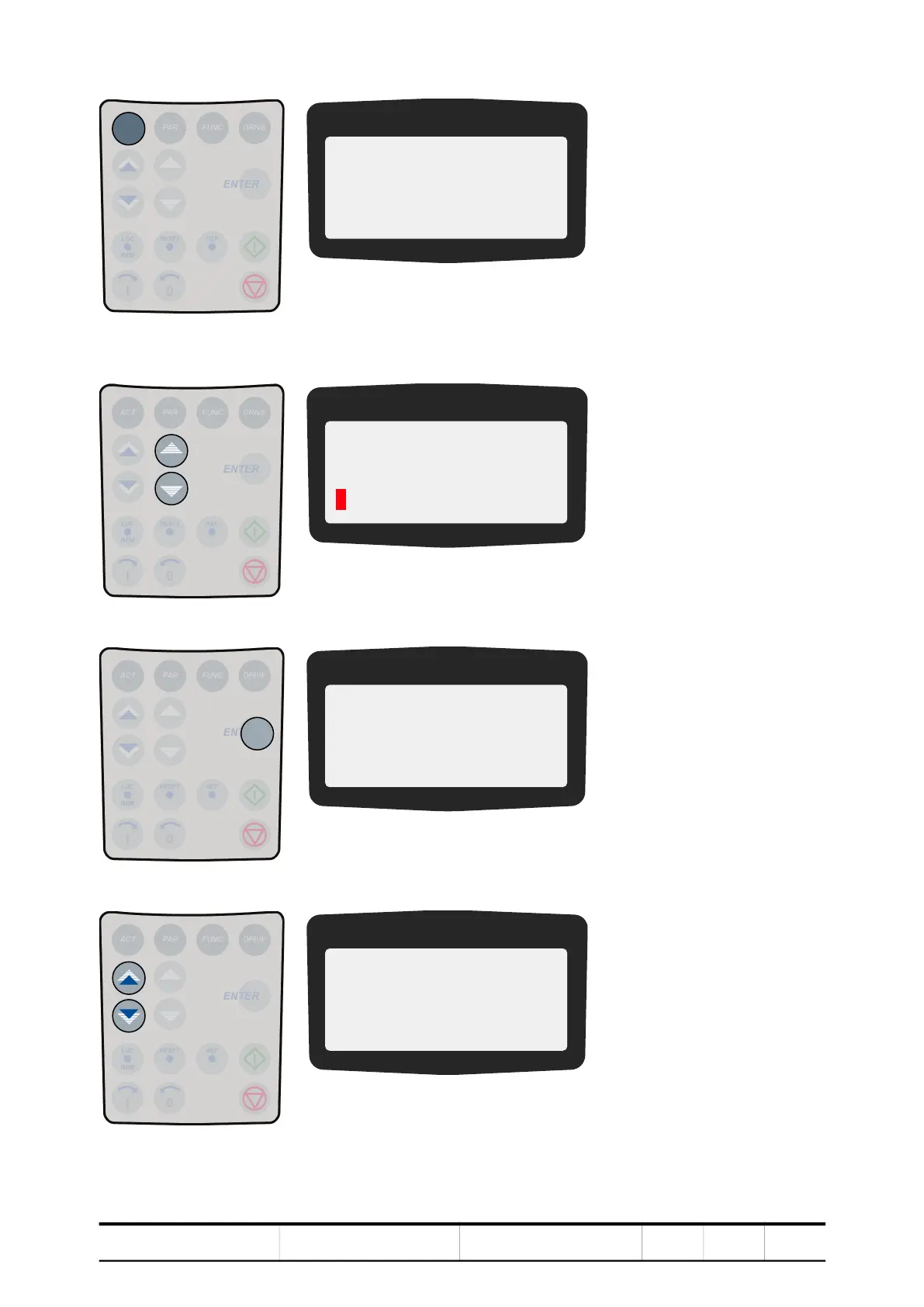

2. To select a line where the actual signal is to be displayed, press the slow
navigation keys. A blinking cursor indicates the selected line.
3. To enter the actual signals selection function, press the ENTER key.
4. To select a parameter group, press a fast navigation keys.
5. To select an actual signal, press a slow navigation keys.
1 L -> 600.0 rpm
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
ACT
1 L -> 600.0 rpm
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
ENTER
1 L -> 600.0 rpm
1 ACTUAL SIGNALS
15 POWER
0.0 kW
1 L -> 600.0 rpm
1 ACTUAL SIGNALS
01 DC VOLTAGE
1000 V
