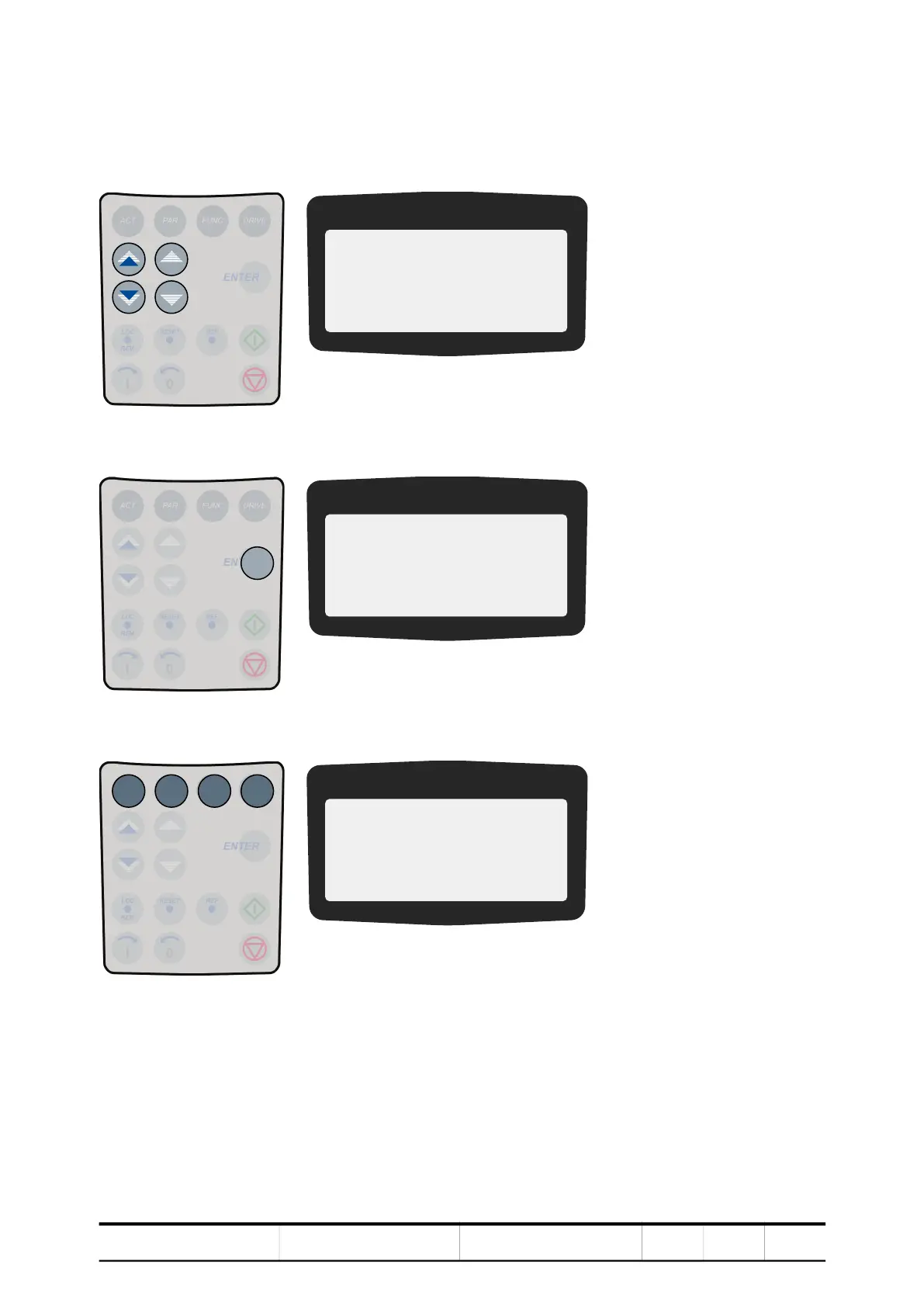

5. To change the parameter value, press:
• Slow navigation keys for numbers and text
• Fast navigation keys for numbers only
6. To confirm the setting and to return to the actual signals display, press the
ENTER key.
7. To cancel the setting and keep the original setting, press any of the mode
selection keys. The selected keypad mode is entered.
1 L -> 600.0 rpm
75 OPTION MODULES
07 C3P1/AI820 Module
[DI810 24VDC]
1 L -> 600.0 rpm
75 OPTION MODULES
07 C3P1/AI820 Module
DI810 24 VDC
ENTER
ACT PAR FUNC DRIVE
1 L -> 600.0 rpm
75 OPTION MODULES
07 C3P1/AI820 Module
DISABLED
