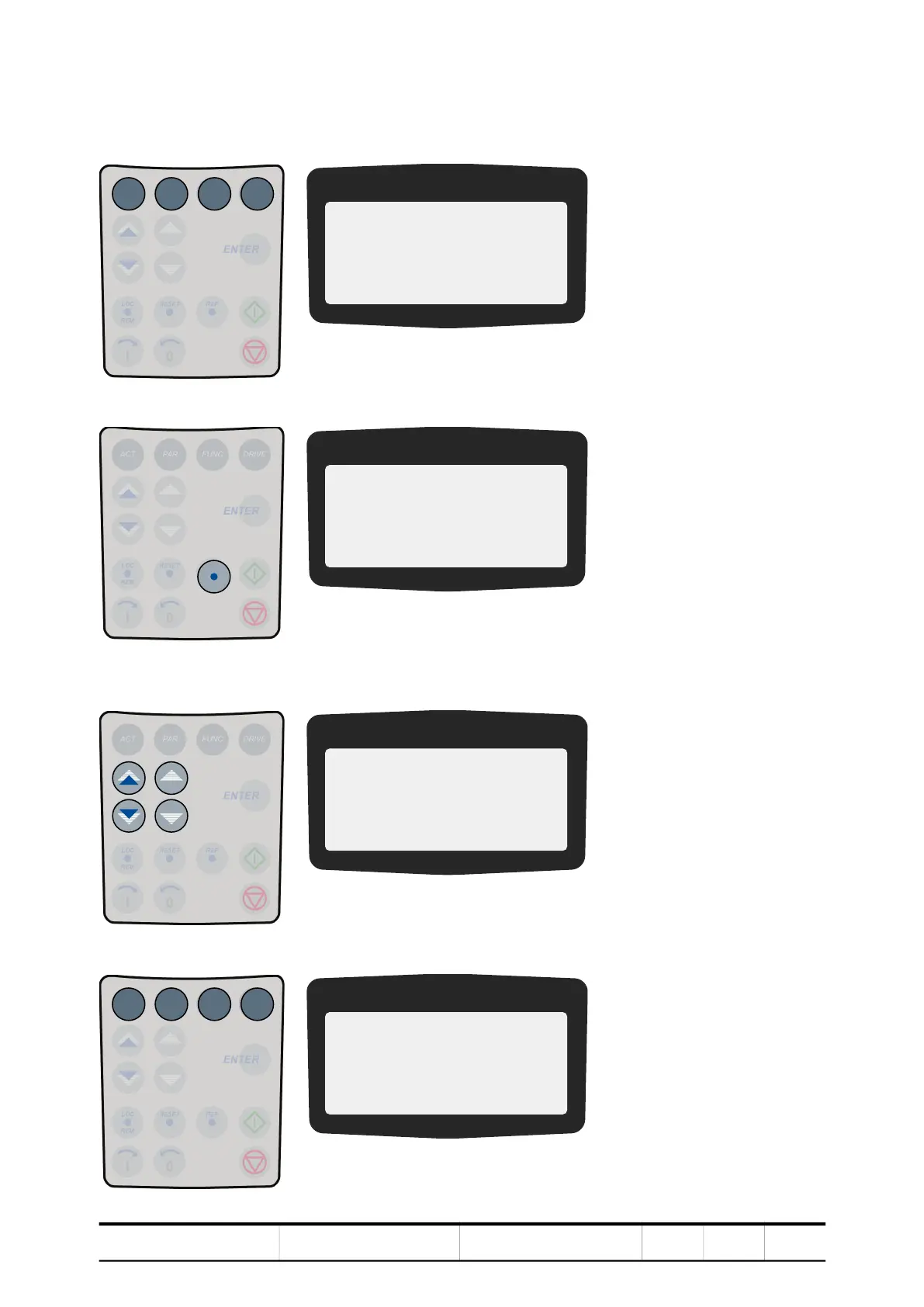

Procedure:
1. Press a mode selection key.
2. To enter the reference value input mode, press the REF key.
3. To enter / change the reference value, press the corresponding fast or slow
navigation key.
4. To exit the mode, press a mode selection key.
ACT PAR FUNC DRIVE
1 L -> 600.0 rpm 0
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
REF
1 L -> [600.0 rpm] 0
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
1 L -> [550.0 rpm] 0
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
1 L -> 550.0 rpm 0
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
