PREVENTIVE AND CORRECTIVE MAINTENANCE
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
256/266

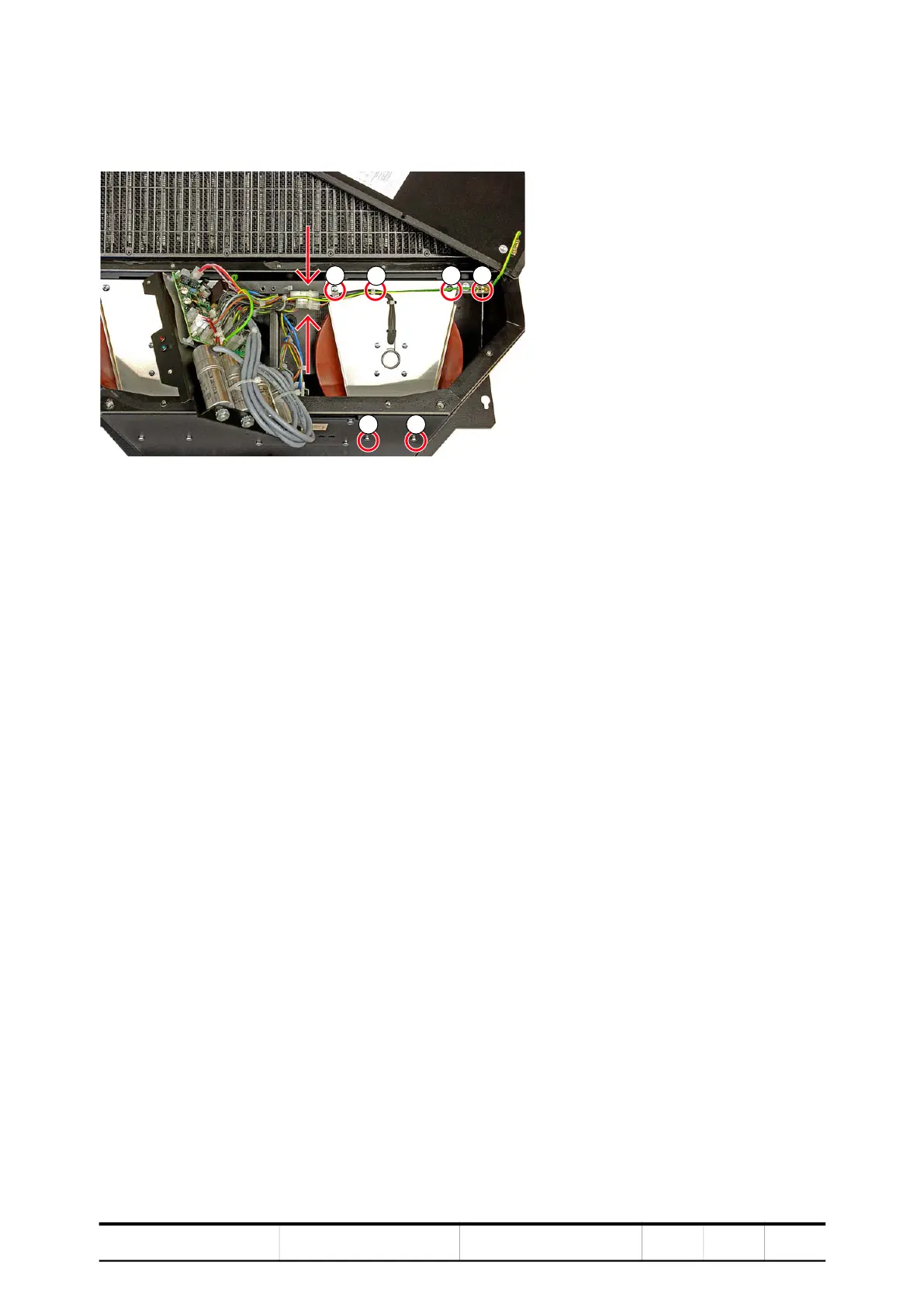

5. Disconnect the ground wire (1), cut off the cable tie (2), unplug the plug-in
connectors (arrows), and unscrew the screws (3, 4, 5 and 6) fixing the fan
mounting bracket to the housing.
6. Remove the fan from the housing, and unscrew the fan from the mounting
bracket.
7. Replace the fan and reassemble the unit in reverse order of removal.
1
3
4
56
