MECHANICAL INSTALLATION
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
89/266
4. Align the transport units and verify the following:

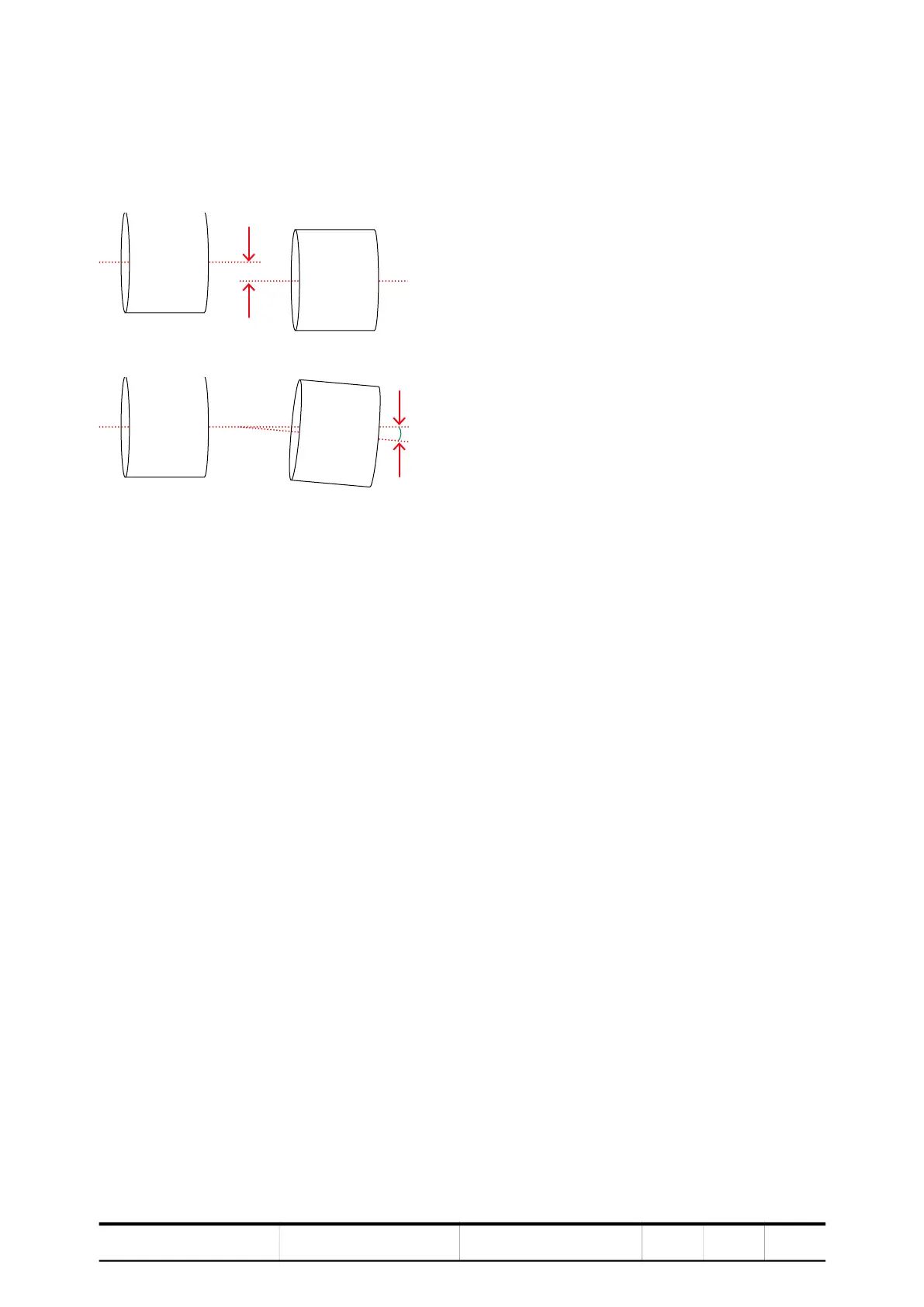

– Maximum values for the axial misalignment and the angular deflection of two
adjoining water pipes are not exceeded.
• Axial misalignment: ± 3 mm:
• Axial deflection: 5°:
– Bolt holes are aligned where transport units are joined (see the connection
points on Fig. 5-1)
– Cabinet doors are not misaligned and that there are no gaps between cabinet
walls and cabinet frame
– Adjoining surfaces of transport units meet perfectly all around
