Lesson 2 – Waveform Digitizer Setup with the Analog Setup Tool

172

Tools and Terms

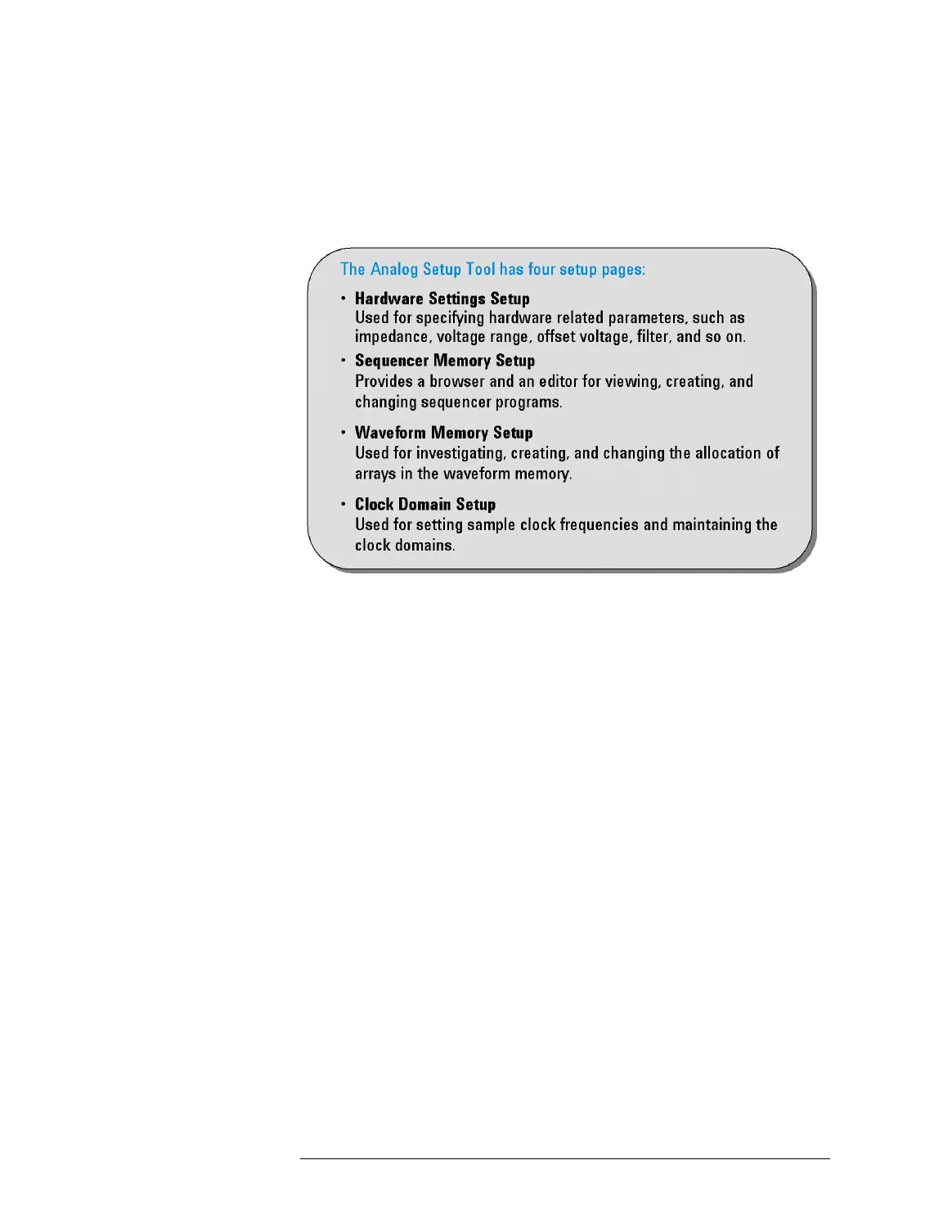

The Analog Setup Tool has four pages for setting up an analog

module:

Analog Setup Tool – Setup Pages

The following slide illustrates the use of the Hardware Settings,

Sequencer Memory, and Waveform Memory setup pages.
