Agilent Technologies 93000 SOC Series User Manual

Lesson 2 – Waveform Digitizer Setup with the Analog Setup Tool
186
How to Edit the Command Line
Proceed as follows:

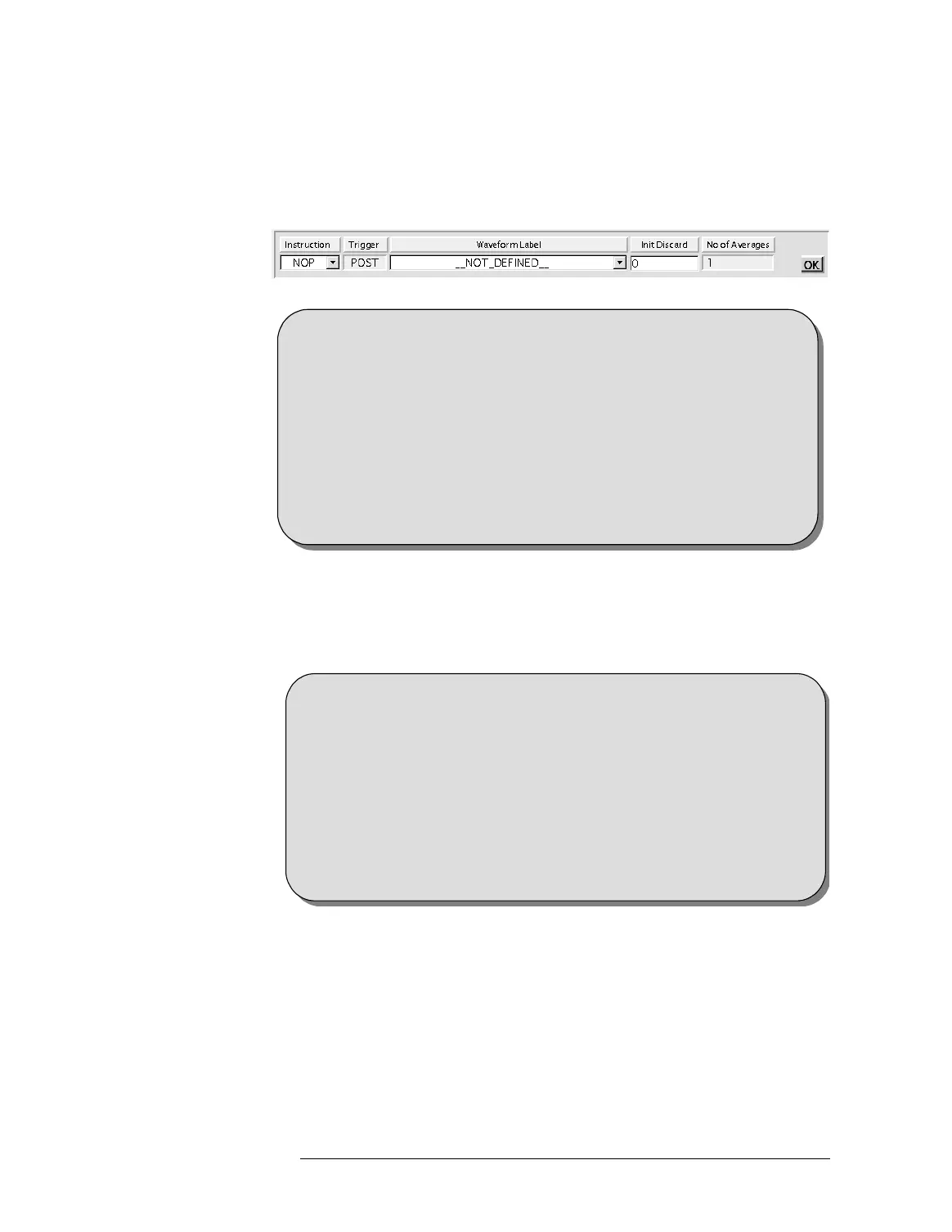

Editing a Command Line
The waveform digitizer supports the following sequencer
instructions:
Sequencer Instructions for a WD
NOTE
NOP stands for Next OPeration, that is, the next sequencer
instruction will be executed without another trigger signal.
1 Select Instruction.
2 Select Trigger reaction (if supported by module).
3 Set Initial hardware Discard.
4 Set No. Of Averages (if supported by module).
5 Select Waveform Label.
To create a new label, choose "__DEFINE_NEW_LABEL__".
6 Click OK.
•NOP
•HALT
The sequencer executes the next instruction as soon as it finishes the
waveform capturing specified in the NOP command line.
The sequencer pauses the sequence program flow at the line just after
the waveform capturing for the HALT line is finished. Then, the
sequencer waits for the next trigger.
At the end of sequence program flow, HALT must be used to stop the
sequence program execution.
