Lesson 2 – Waveform Digitizer Setup with the Analog Setup Tool
189
Calculate Required Number of Samples

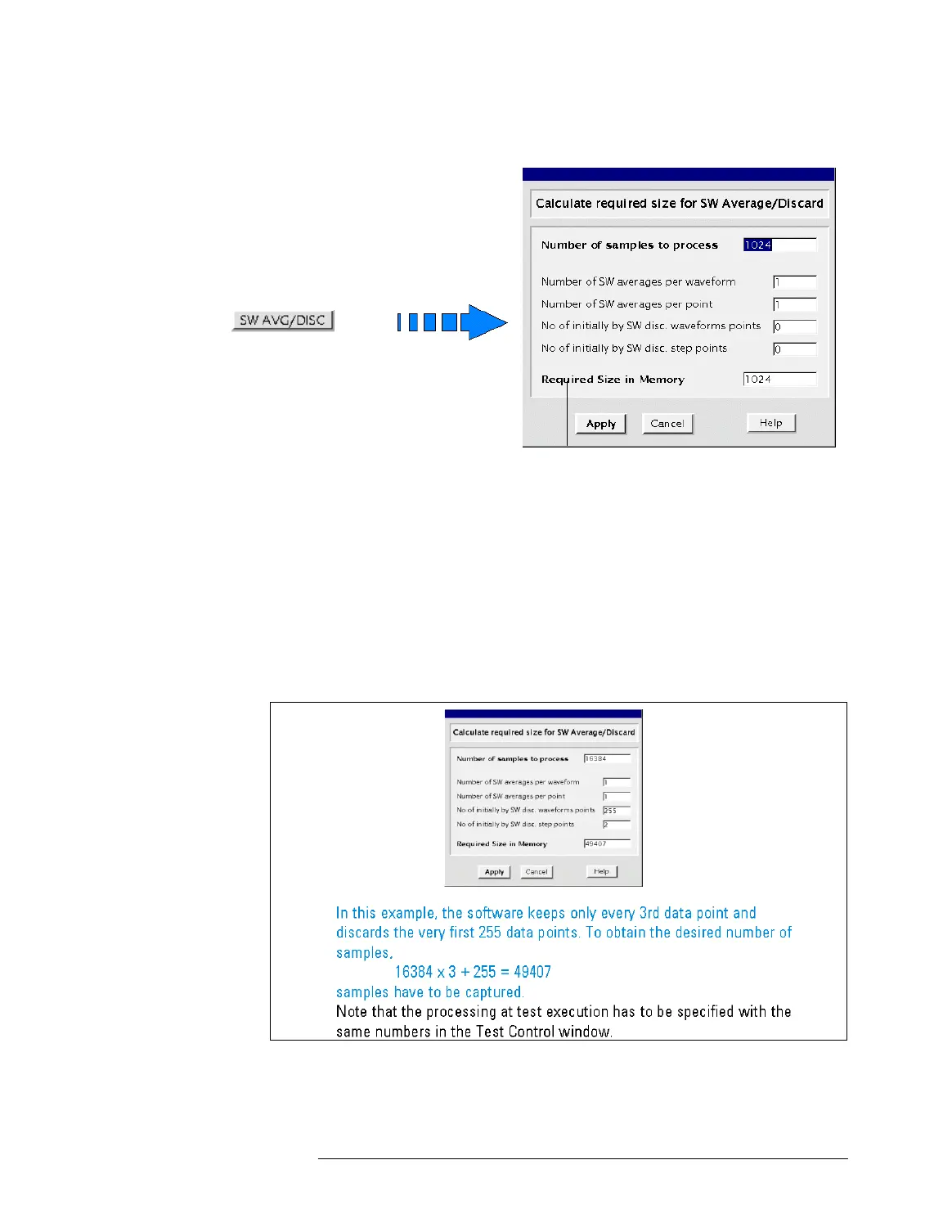

NUMBER OF SAMPLES TO PROCESS is the number of samples that shall
be finally used for calculating the test results.
Enter the types and number of software discards (SW disc.) or
averaging you are planning to run before the result calculation.
The required size in waveform memory, that is, the number of
samples to be taken, is automatically calculated and can be
transferred by clicking A
PPLY.
Example:
Size Calculation Example
NOTE
The Analog Setup Tool uses these numbers only for calculating the
required size of the waveform array.
To Next Page
