Lesson 1 – The Training ADC
297
The first code transition (from zero to one) of an ideal ADC occurs
at the analog equivalent of 0.5 LSB.
The last code transition (from 2
n
– 2 to 2
n
– 1, where n = number
of bits) of an ideal ADC occurs at the analog equivalent of FS –
1.5 LSB. There are 2
n
– 1 code transitions.
Example: An 8-bit ADC tested in binary format covers a numerical
range from 0 to 255 (= 2
n
– 1). The same ADC operated in 2’s
complement format would cover a numerical range from –128 to
+127. One LSB of this ADC is normally calculated as FS / 256.
The response of an ADC to an input voltage above FS – 0.5 LSB is
usually not defined.
Therefore, many ADCs have an additional voltage reference or
comparator and an additional output pin to signal overvoltage.
NOTE Some manufacturers consider that the first (zero) step and the last
step are only one half of a full width and therefore calculate:
1 LSB = FS / (2
n
– 1) for an n-bit converter.
Real ADCs show minor or major deviations from the ideal.

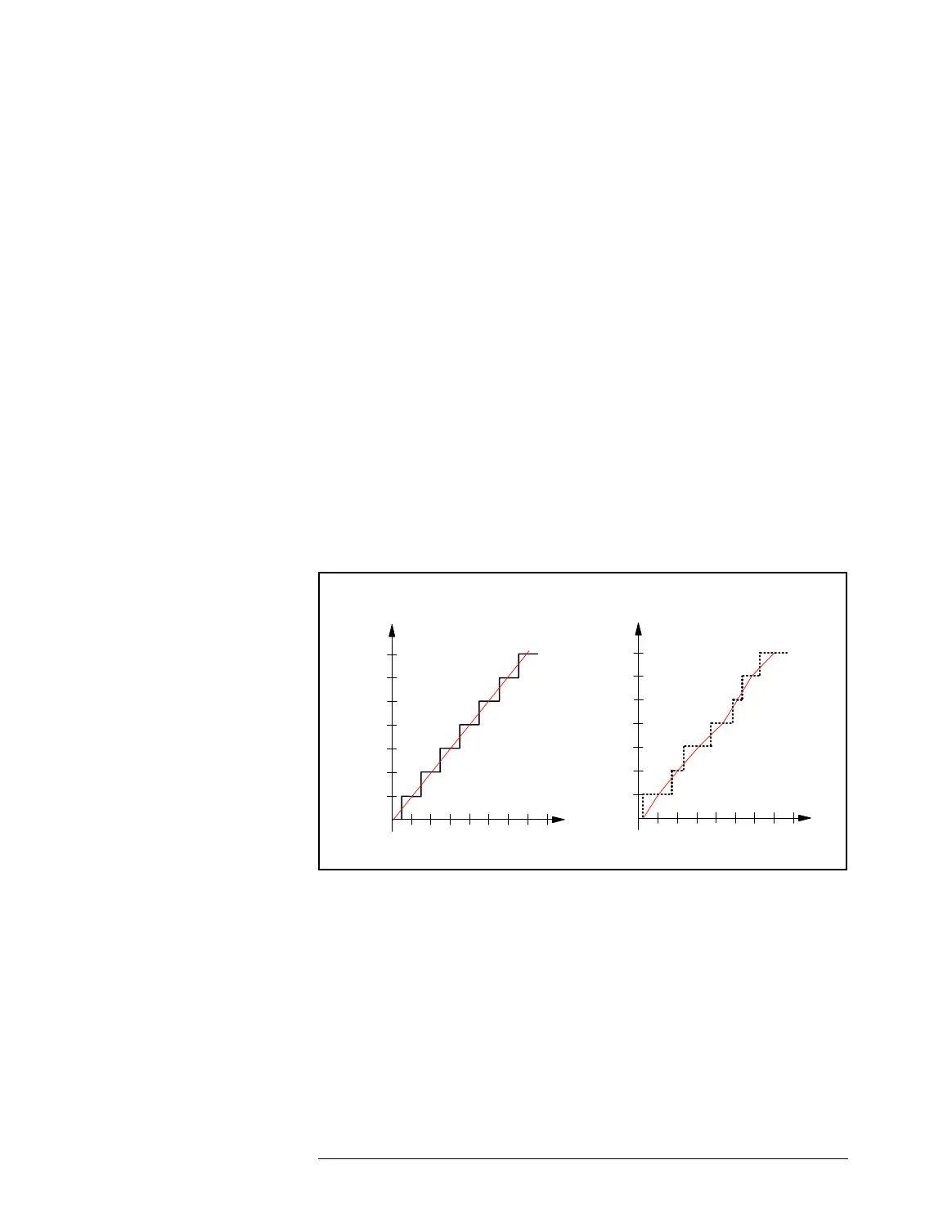

Ideal vs. Real ADC
A gain error, for example, would move the outer points further
out, an offset error would offset the whole curve.
1/4
1/2
FS
1/8
3/8
5/8 3/4
7/8
001
010
011
100
101
110
111
000
Ideal ADC
Analog Input
Binary Output Code
1/4
1/2
FS
1/8
3/8
5/8 3/4
7/8
001
010
011
100
101
110
111
000
Real ADC
Binary Output Code
Analog Input
