Lesson 3 – TIA Test Method Programming and Test Execution

503

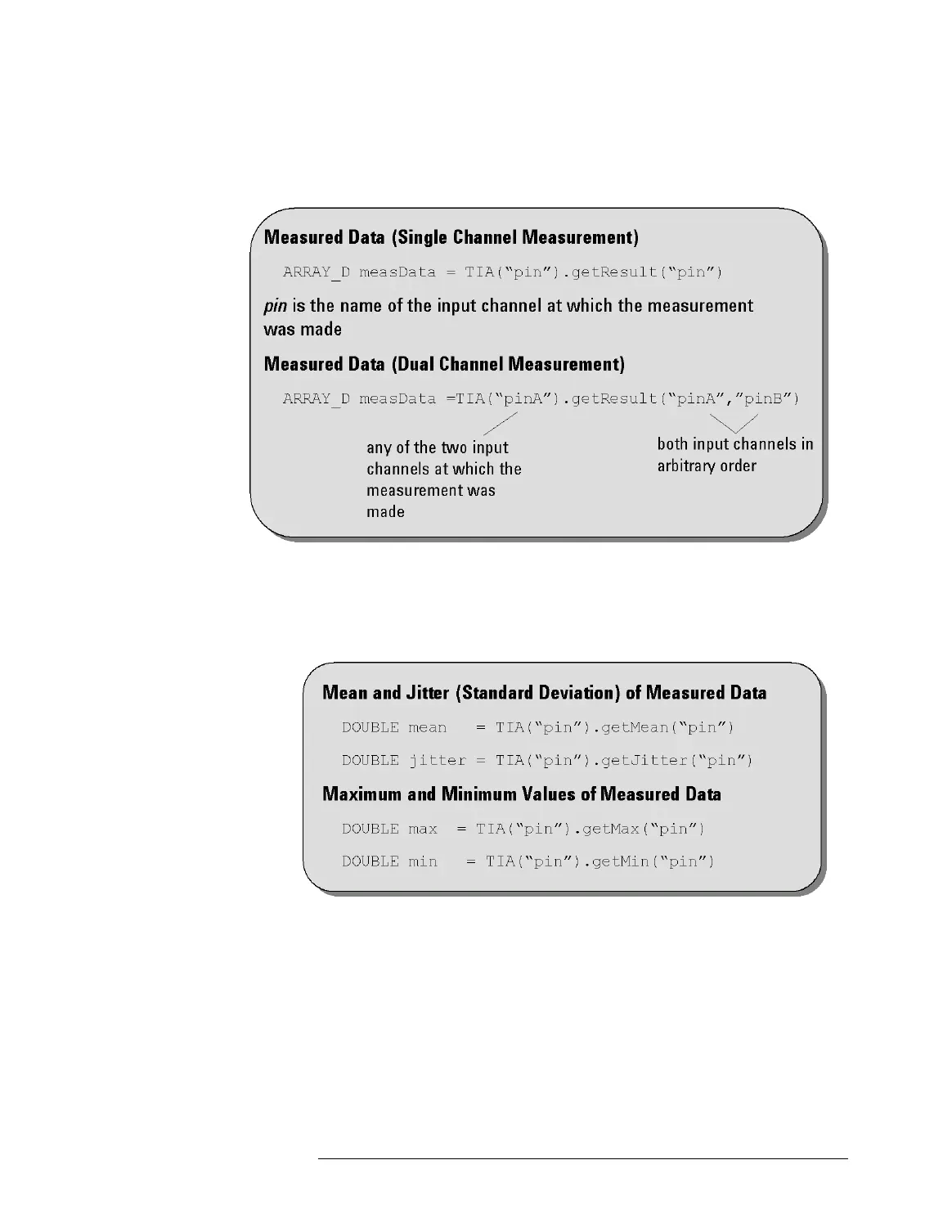

With the following API function, you can retrieve the measured

data:

Getting Measurement Results from the TIA

Calculated results can be retrieved with these API functions:

Getting Calculated Results from the TIA

In the next section, you will see an example test method that

demonstrates how to use these functions.

More test methods performing the various types of TIA

measurements will be used in the lab exercises.
