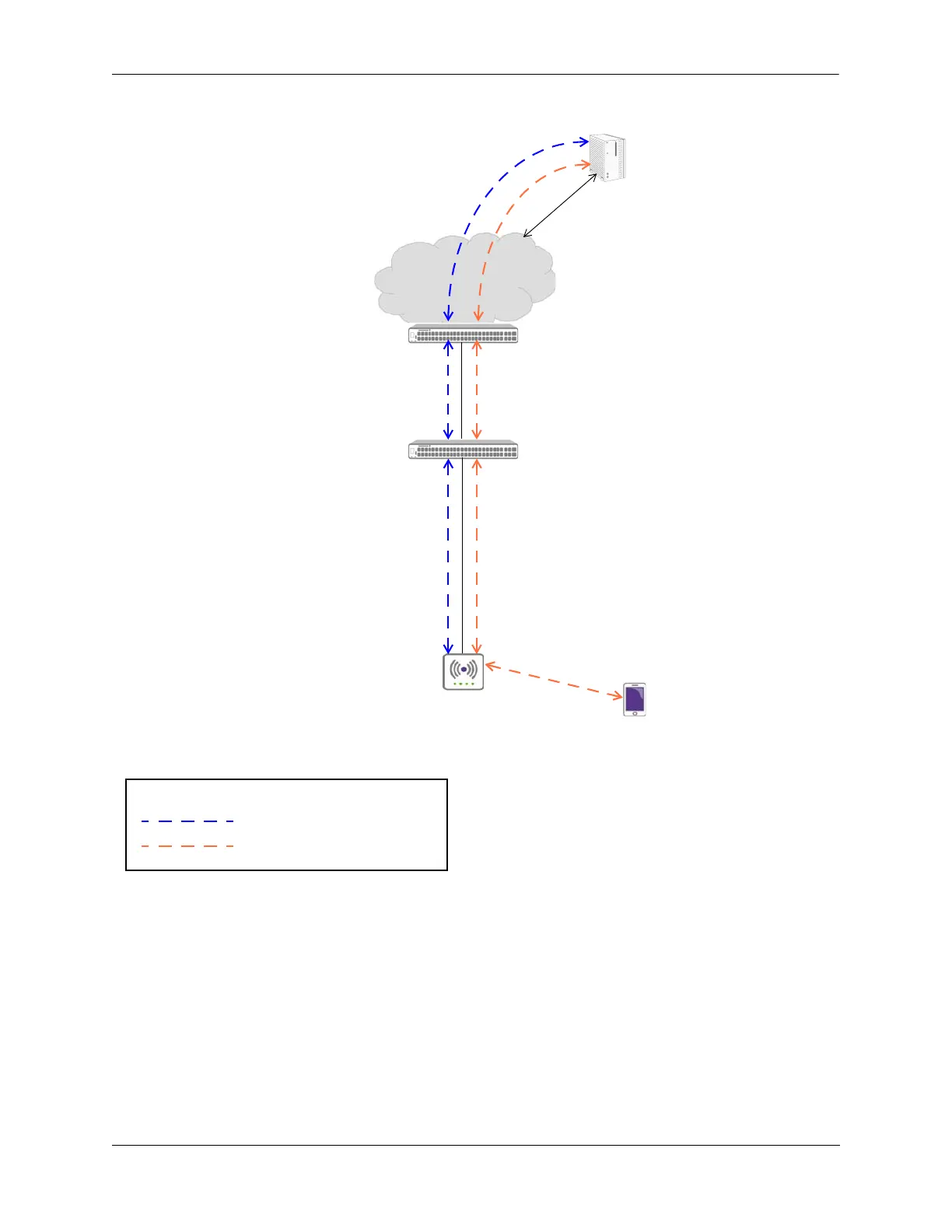

OmniSwitch AP Discovery and Integration Example
Configuration Guidelines
Consider the following guidelines when configuring the OmniSwitch feature components that are required
to discover and integrate wireless traffic that is forwarded by OmniAccess Stellar AP devices into an
OmniSwitch network:
LAN
DHCP Server
Stellar-AP
1.
AP connected to UNP bridge
2.
Switch classifies AP into the
3.
AP sends untagged DHCP request
DHCP scope:
4.
Switch sends LLDP with:
5.
AP updates context with:
10.255.125.0/24 (AP management subnet)
10.255.10.0/24 (AP client subnet)
VLAN 125
(10.255.125.1/24)
VLAN 10
(10.255.10.1/24)
port 1/1/1 sends LLDP MED TLV. on VLAN 125 to obtain IP address.
- Port VLAN ID = 125
- AP Location = Building1:1/1/1
- Management VLAN = 125
- AP Location = Building1:1/1/1
6.
Wireless client connects to
defaultWLANProfile; AP assigned
to VLAN 125.
Guest SSID (VLAN 10 tag).
7.
Trust tag enabled on 1/1/1; switch
dynamically assigns Guest client
traffic into VLAN 10.
1/1/1
1/1/24
8.
Wireless client DHCP request
sent on VLAN 10.
Untagged AP management traffic
Tagged AP client traffic
AP Traffic Flow
