Configuring Dynamic Link Aggregation Application Examples
OmniSwitch AOS Release 8 Network Configuration Guide December 2017 page 9-25
Application Examples
Dynamic link aggregation groups are treated by the software on the switch as similar to individual
physical ports. This section demonstrates the dynamic link aggregation feature by providing sample
network configurations that use dynamic aggregation along with other software features. In addition,
tutorials are provided that show how to configure these sample networks by using Command Line
Interface (CLI) commands.
Sample Network Overview

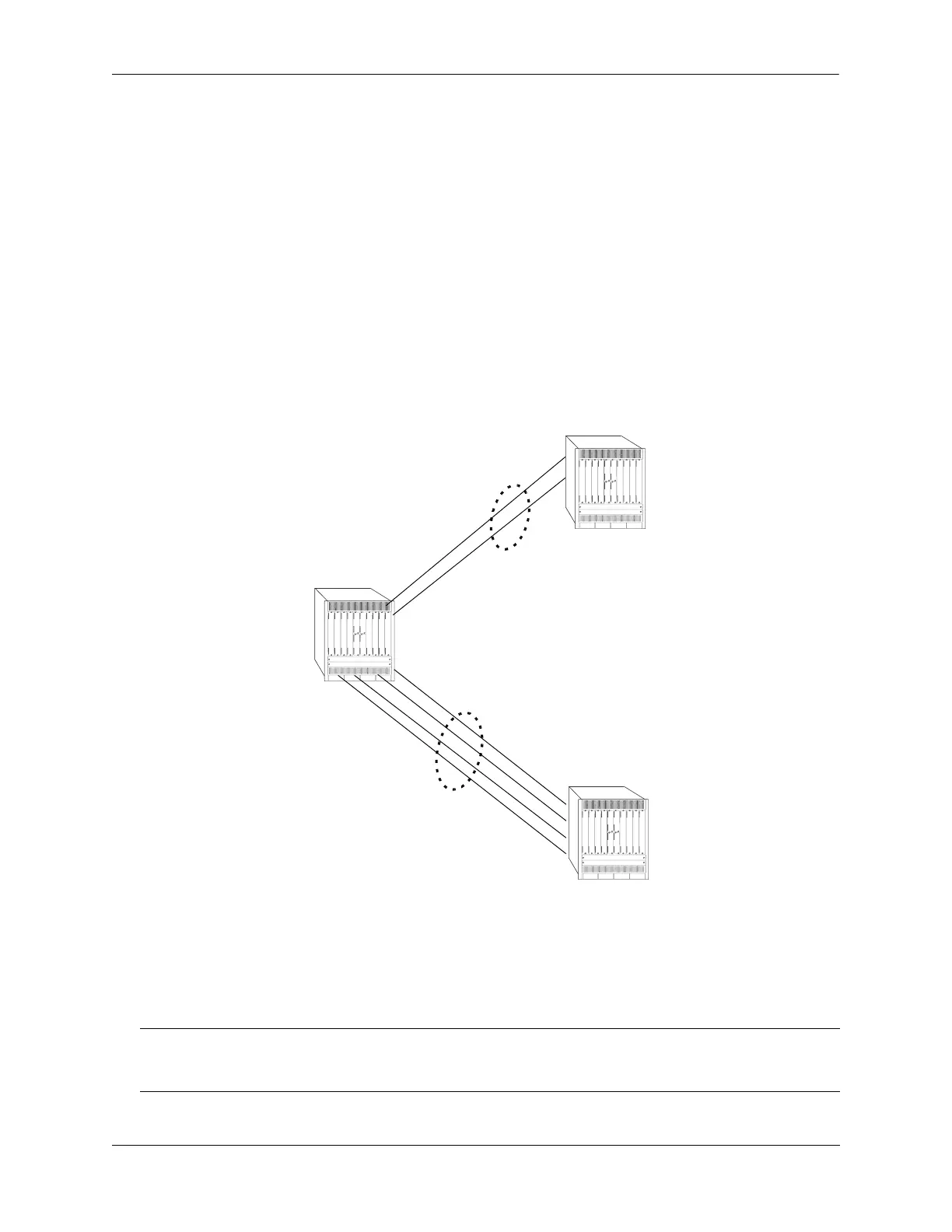

The figure below shows two VLANs on Switch A that use two different link aggregation groups. VLAN
10 has been configured on dynamic aggregate group 5 with Spanning Tree Protocol (STP) with the highest
priority (15) possible. And VLAN 12 has been configured on dynamic aggregate group 7 with 802.1Q
tagging and 802.1p priority bit settings.
Sample Network Using Dynamic Link Aggregation
The steps to configure VLAN 10 (Spanning Tree example) are described in “Link Aggregation and
Spanning Tree Example” on page 9-26. The steps to configure VLAN 12 (802.1Q and 802.1p example)
are described in “Link Aggregation and QoS Example” on page 9-27.
Note. Although you need to configure both the local ( Switch A) and remote ( Switches B and C) switches,
only the steps to configure the local switch are provided since the steps to configure the remote switches are
similar.
Switch A
Switch B
Switch C
Dynamic Aggregate
Group 7
VLAN 12 with 802.1Q tagging
using 802.1p priority has been
configured to use this group.
Dynamic Aggregate
Group 5
VLAN 10 has been configured to
use this group with Spanning
Tree with a priority of 15.
