Anritsu Site Master S331L User Manual

S331L UG PN: 10580-00321 Rev. M 3-65
Cable and Antenna Measurements 3-17 Trace Menu
3-17 Trace Menu
Key Sequence: Trace (5)
Trace:
Copy Trace to Display Memory: Copies the
current trace display to memory for use in Trace
Math and Trace Display options.
Trace Display: Press to change the display
options.
Trace Only: The active trace is shown
(yellow).
Memory Only: The trace stored in memory
is displayed in purple.
Trace & Memory: Displays both the stored
trace (purple) if a trace is stored in memory
and the current active trace (yellow).
Trace Math: Press to change the trace math
options.
None: The active trace is shown as is with
no math functions.
Trace – Mem: Displays the difference
between the active trace and the trace in
memory.
Trace + Mem: Displays the results of
logarithmic adding of the active trace and
the trace in memory.
(Trc + Mem) / 2: Displays the results of the
average of the active trace and trace in
memory.

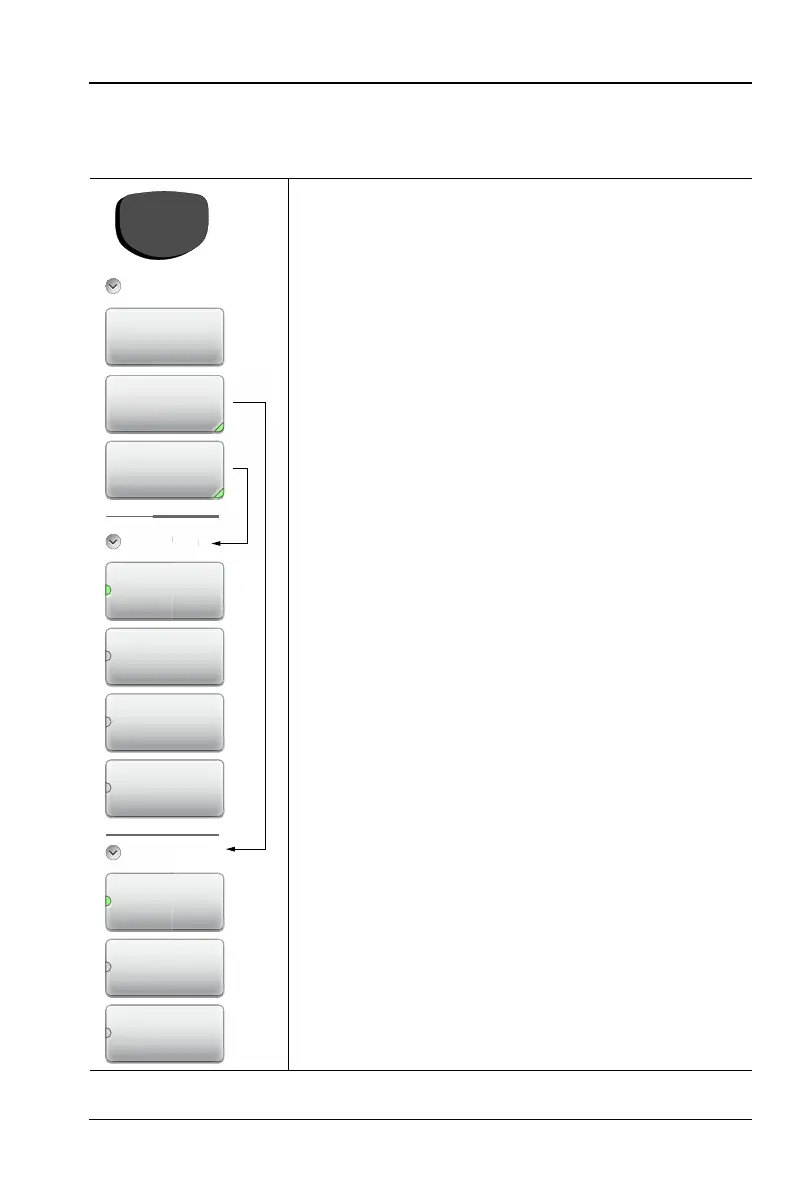

Figure 3-54. Trace Menu
Trace Display
Trace Only
Trace
D
Trace
O
Trace &
Memory
Memory Only
Trace Math
None
Tr
a
c
Non
Trace - Mem
Trace + Mem
(Trc + Mem) / 2
Copy Trace To
Memory
Trace Display
Trace Only
Trace
e
Displa
y
c
e Onl
y
Trace Math
None
Ma
th
e
M
c
e Mat
h
No
ne
Trace
5
