6-12 PN: 10580-00321 Rev. M S331L UG
6-4 MA24105A Inline Power Sensor High Accuracy Power Meter
6-4 MA24105A Inline Power Sensor
Introduction
Attaching the MA24105A inline peak power sensor adds additional
menus and submenus required for making the following in-line
measurements:
• Forward Measurements: Average Power, Crest Factor, Peak
Envelope Power (PEP), Burst Average Power, and CCDF.
• Reverse Measurements: Average Power, Reflection Coefficient,
Return Loss, and VSWR.
In the default view the analog meter displays the forward
measurements. The reverse measurements are displayed below the
numerical display of the forward measurements (Figure 6-6). To view
all of the forward and reverse measurements in table format, use the
Summary Table display (Figure 6-7).
Note
Refer to the previous sections in this chapter for a general
overview of using USB sensors with the Site Master.
This section is specific to the additional options and settings
available when the MA24105A in-line sensor is attached
(Figure 6-2 on page 6-3). There are numerous menu
changes with this meter. Refer to Figure 6-21 on page 6-25.

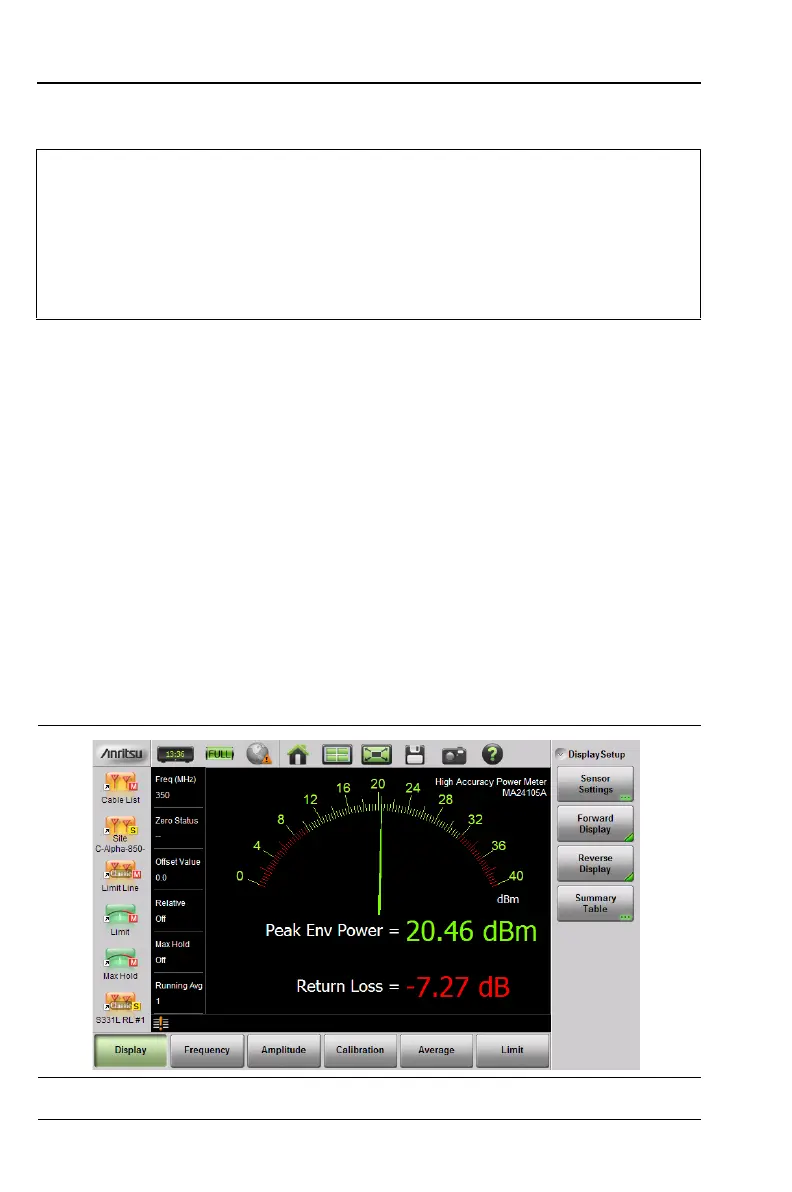

Figure 6-6. Power Meter View
