Anritsu Site Master S331L User Manual

3-26 PN: 10580-00321 Rev. M S331L UG
3-5 Advanced Measurements Cable and Antenna Measurements
1-Port Phase
The S331L can display the phase of the reflection measurements at the
RF Out/Reflect In port. The Phase display range is from –450 degrees to
+450 degrees.
The 1-port phase measurement is most useful when making relative
measurements (comparing the phase of one device to the phase of
another) by utilizing the Trace Math function (Trace – Memory).

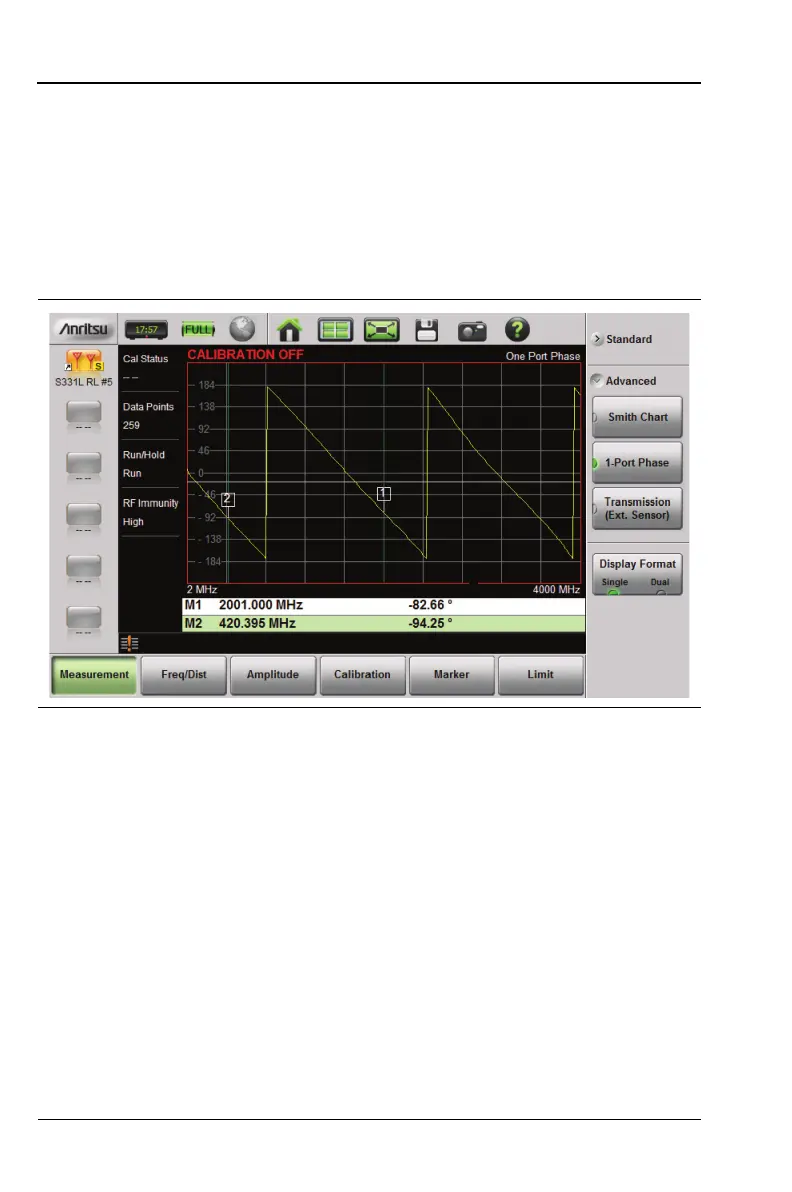

Figure 3-21. 1-Port Phase Measurement
