S331L UG PN: 10580-00321 Rev. M 6-13
High Accuracy Power Meter 6-4 MA24105A Inline Power Sensor
In-Line Sensor Setup
The Sensor Settings submenu under the Display main menu adjusts the
in-line sensor parameters (Figure 6-8). The on screen instructions
provide information for each parameter. To change a parameter, select
it with the Up/Down arrows or the touchscreen and press Edit.

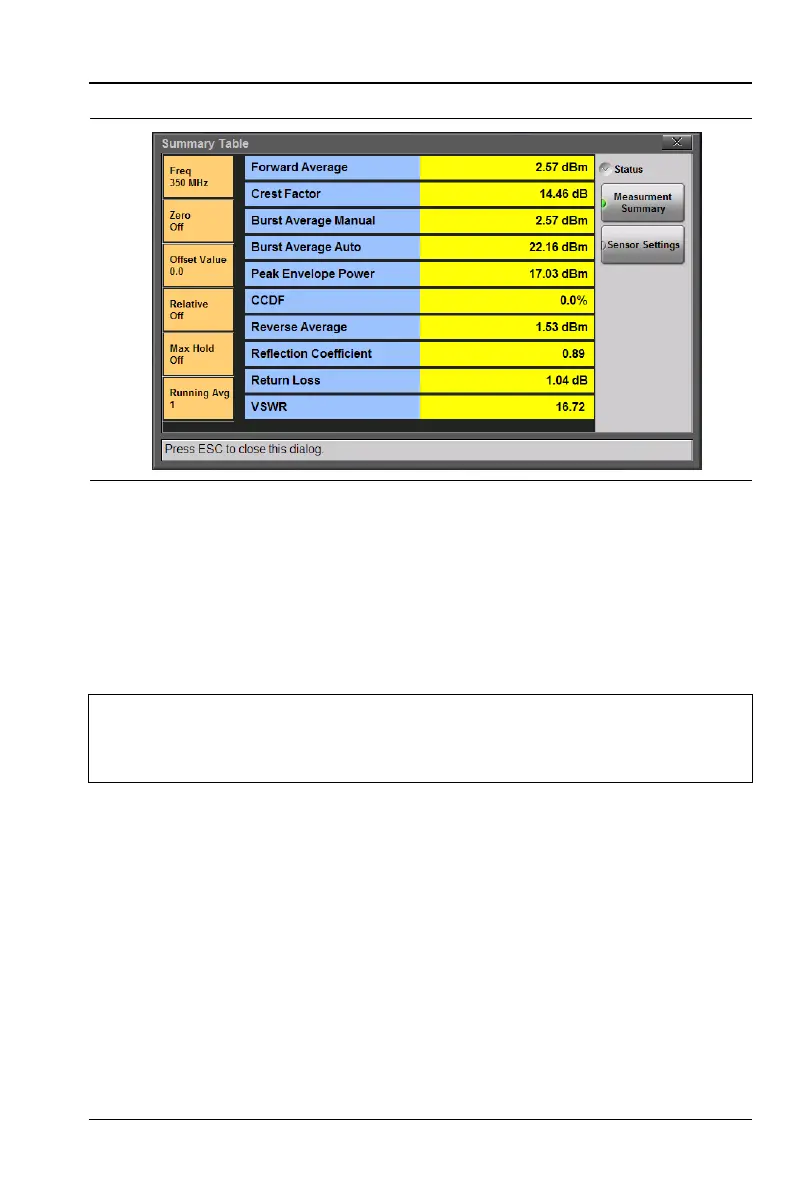

Figure 6-7. Summary Table View
Note
Several sensor settings are only appropriate for specific
measurements. Refer to the on screen information in the
Sensor Settings dialog for additional information.
