Anritsu Site Master S331L - Status Tool Bar

S331L UG PN: 10580-00321 Rev. M 2-17
Instrument Overview 2-5 Touchscreen Display Overview
Status Tool Bar
The Status Tool Bar includes icons to display the current time and date,
battery charge, GPS status, and screen lock state. Tap one of the icons
for additional information. Figure 2-7 shows the icons that are
displayed in the Status Tool Bar area.
1 Clock icon. Press to set the current date, time, and time zone. Refer to
“Date/Time” on page 9-13.
2 Battery icon. Press to view battery and charge status. Press ESC to
close.
The top row shows the battery icon when the battery is fully charged
and the Site Master is plugged into the AC adaptor or car charger.
The second row of battery icons show the charge level from 100% to
2% when the Site Master is running on battery power.
The lightning bolt is displayed when the Site Master is charging from
an AC adapter or the car charger and the battery is not fully charged
yet. The third row shows the battery level from 2% to 100% under this
condition.

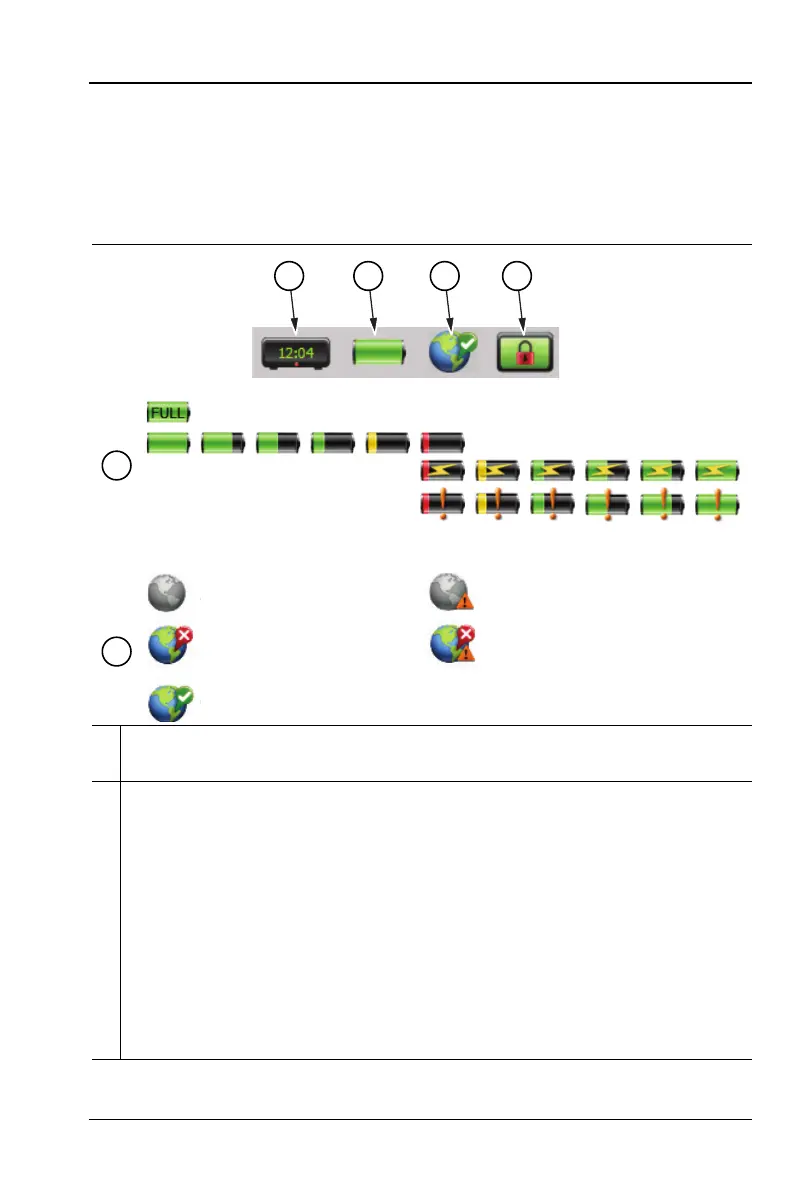

Figure 2-7. Status Tool Bar Icons (1 of 2)
1 2 3 4
2
3
a. Not Connected, No GPS d. Not Connected, Last fix
c. Connected, Good fix
e. Connected, Last fix
b. Connected, No fix
a
. Not Connected
,
No GP
S
c. Connected
,
Good fi
x
b. Connected
,
No fi
x
