Anritsu Site Master S331L User Manual

5-2 PN: 10580-00321 Rev. M S331L UG
5-2 Introduction Internal Power Meter
5-2 Introduction

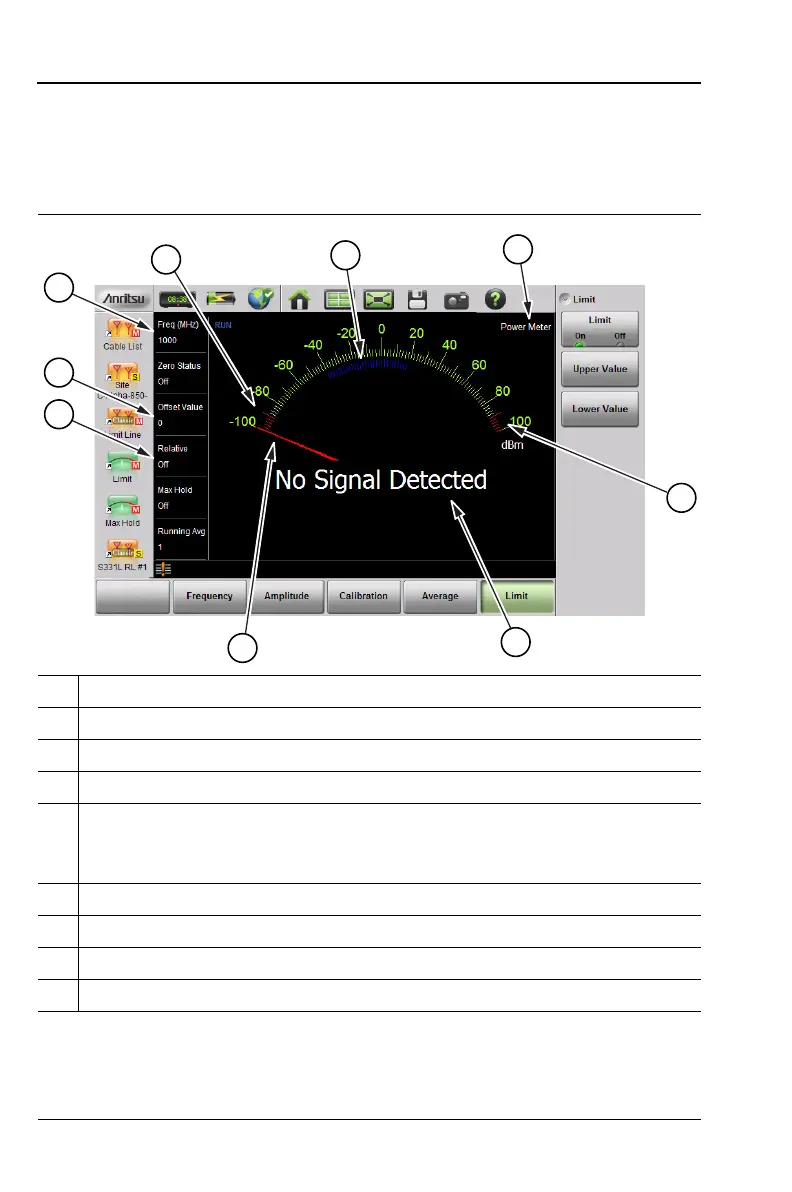

Figure 5-1 illustrates the preset Power Meter display with limits turned
on and no source power.
1 Preset -90 dBm Lower Limit
2 Blue Ticks Indicate Approximate Power Meter Range
3 Power Meter Mode
4 Preset 90 dBm Upper Limit
5 Current Power in dBm and Watts (including any Offset Value) or
“No Signal Detected” if the Current Power Level is Below the Power
Meter Range
6 Power Meter Needle (No Source Power)
7 Relative Power (db and %) or Absolute Power (dBm and Watts)
8 Offset Value to Account for External Attenuation or Gain
9 Source Frequency Used for Correction Factor
Figure 5-1. Power Meter Display Overview
2
3
4
1
9
8
7
6
5
