2-12 PN: 10580-00321 Rev. M S331L UG
2-5 Touchscreen Display Overview Instrument Overview
2-5 Touchscreen Display Overview

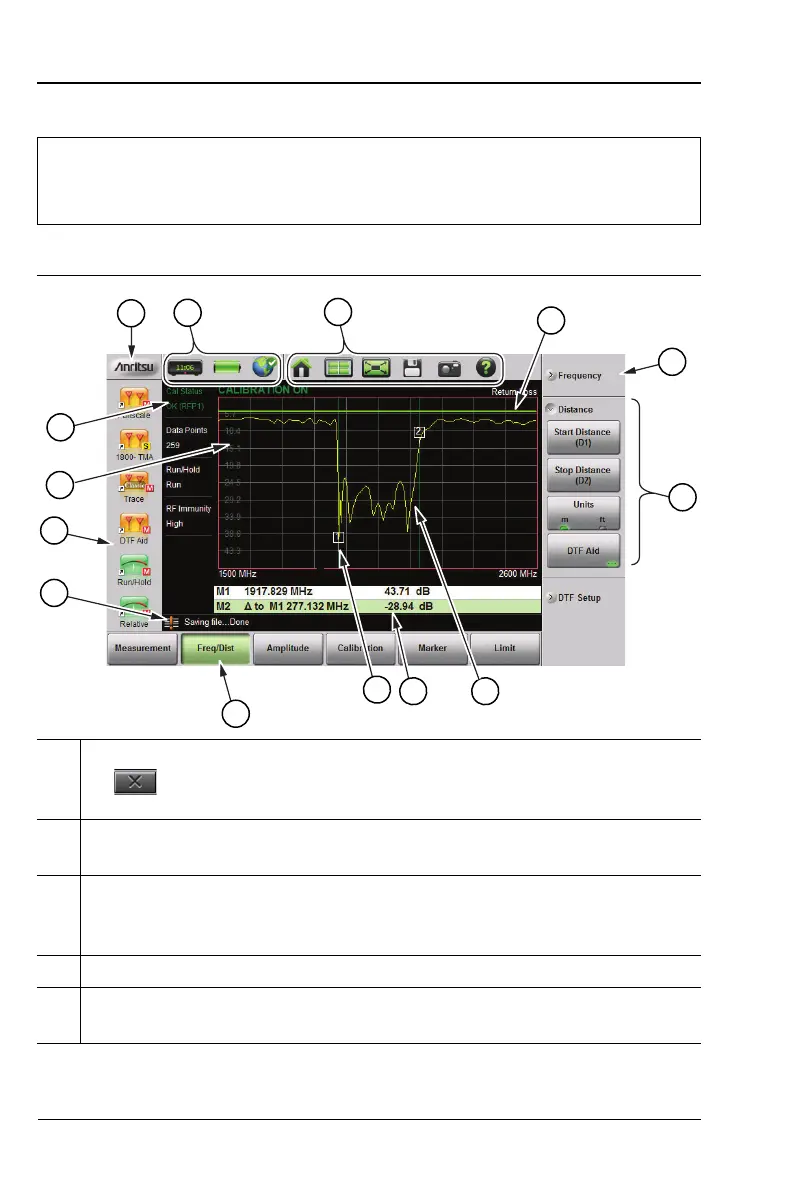

Figure 2-5 illustrates some of the Site Master user interface features.
Note
Screen captured images are provided as examples. The
image and measurement details shown on your instrument
may differ from the examples in this measurement guide.
1 Anritsu Logo. Displays the System Status dialog screen. Press ESC
or to close. Refer to the “Status Menu” on page 9-15 for
additional information.
2 Status Tool Bar. Refer to “Status Tool Bar” on page 2-17 for
information on each icon.
3 System Function Tool Bar. Shortcuts to various system functions.
See “System Function Tool Bar” on page 2-20 for information on
each icon. Not displayed in Classic Mode.
4 User-defined Limit Line.
5 Collapsed submenu. Pressing a collapsed submenu will cause it to
expand as shown in row 2. Refer to “Submenu Keys” on page 2-13.
Figure 2-5. Site Master Display Overview (1 of 2)
