6-2 Introduction High Accuracy Power Meter
6-2 Introduction

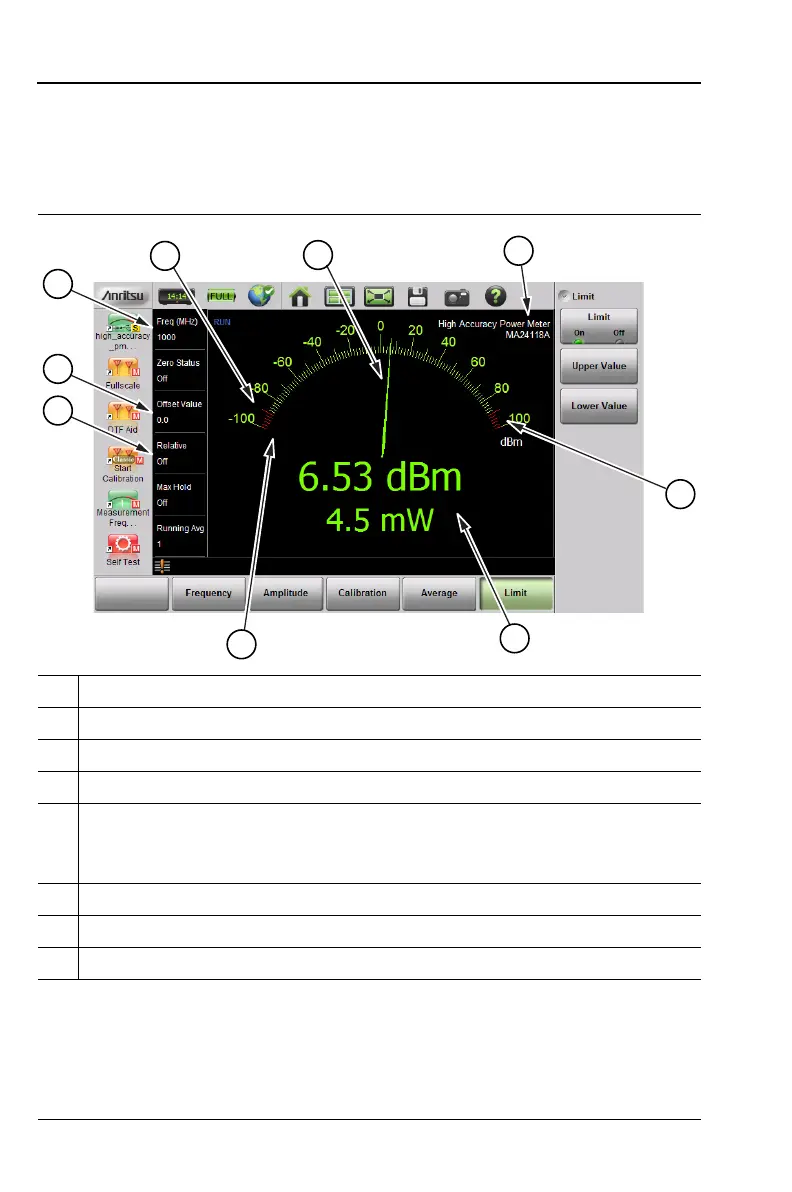

Figure 6-1 illustrates the preset Power Meter display with limits turned
on and no source power.
1 Preset -90 dBm Lower Limit
2 Power Meter Needle
3 High Accuracy Power Meter Mode and Connected USB Sensor
4 Preset 90 dBm Upper Limit
5 Current Power in dBm and Watts (including any Offset Value) or
“No USB sensor detected” if an external USB sensor is not
connected or recognized by the Site Master.
7 Relative Power (db and %) or Absolute Power (dBm and Watts)
8 Offset Value to Account for External Attenuation or Gain
9 Source Frequency Used for Correction Factor
Figure 6-1. Power Meter Display Overview
2
3
4
1
9
8
7
6
5
