8-4 Save File File Management
File Type
The default file type in the Save dialog box is Measurement. To select a
different type of data to save, press the Filetype button, then touch the
appropriate key under the File Type menu. The selected file type
determines the file name extension, as shown in Figure 8-5.
Measurement files are typically saved for reporting and monitoring.
They contain both the measurement data and setup data.
Setup files help ensure consistent instrument setup when making
future measurements. They contain basic setup details including:
measurement type, frequency span, distance span, DTF setup,
amplitude settings, markers, limit lines, calibration coefficients, and
additional instrument settings (data points, run/hold status and RF
immunity status).
Screen shot files contain a screen capture of the current display. The
image appearance is set using the ScrnShot Settings.
Note
User-defined EZ Name keys are saved until a Master Reset is
performed or you delete custom files with Preset (9) > Reset
> Delete Custom Files > Keyboard EZ Names. Refer to the
“Preset Menu” on page 9-23 for additional information.

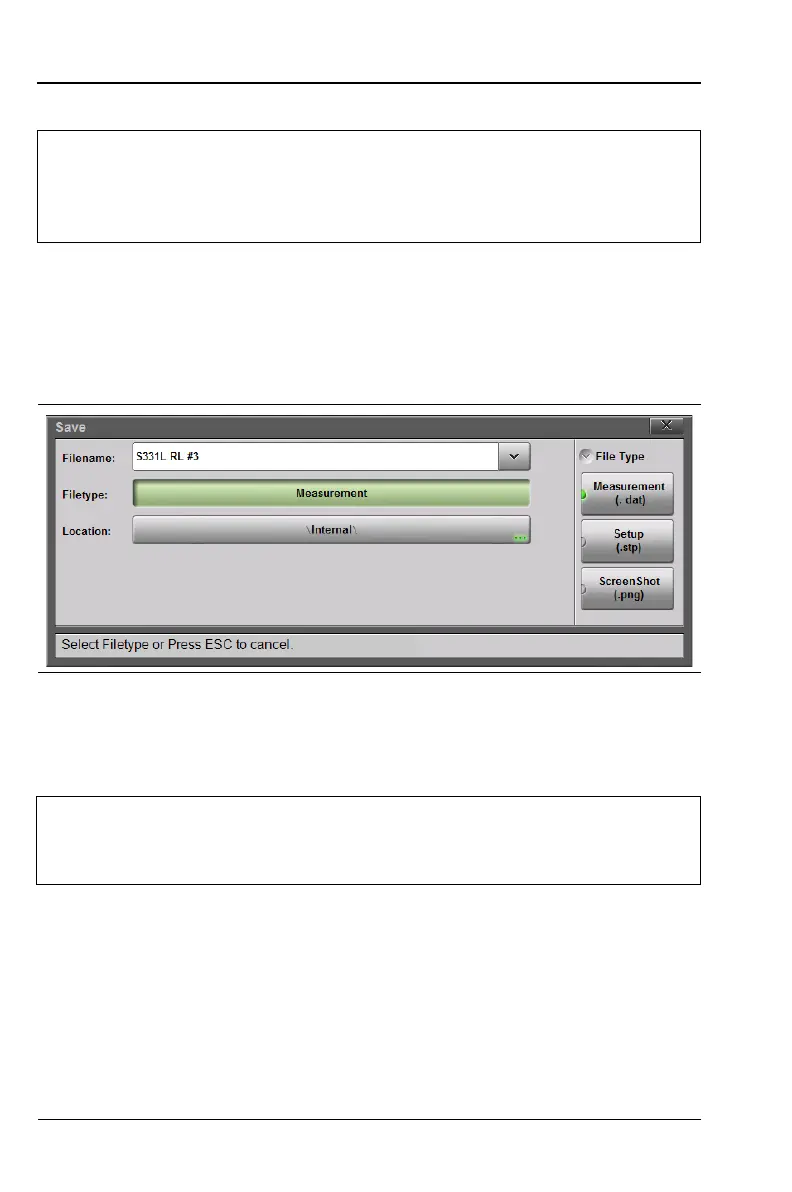

Figure 8-5. Save File Type
Note
In Video Inspection Probe mode, the Measurement file type
(.vipi extension) saves the captured VIP image and analysis
results. See Chapter 12, “Video Inspection Probe (VIP)”.
