5-9 Limit Menu Internal Power Meter
5-9 Limit Menu
Key Sequence: Limit or Limit (6)
5-10 Sweep Menu
This menu is not available in Power Meter measurement mode.
5-11 Trace Menu
This menu is not available in Power Meter measurement mode.
5-12 Other Menus Keys
Refer to Table 2-1, “Site Master Keypad Functions” on page 2-10.
Limit: Turns the limits On or Off.
Upper Value: Sets the upper limit (displayed as red
hash marks). Enter the desired number by using the
keypad, the rotary knob, or the Up/Down arrow keys. If
the keypad was used to enter new values, press Enter
to set the new setting or press the Esc button to restore
the previous setting.
Lower Value: Sets the lower limit (displayed as red
hash marks). Enter the desired number by using the
keypad, the rotary knob, or the Up/Down arrow keys. If
the keypad was used to enter new values, press Enter
to set the new setting or press the Esc button to restore
the previous setting.

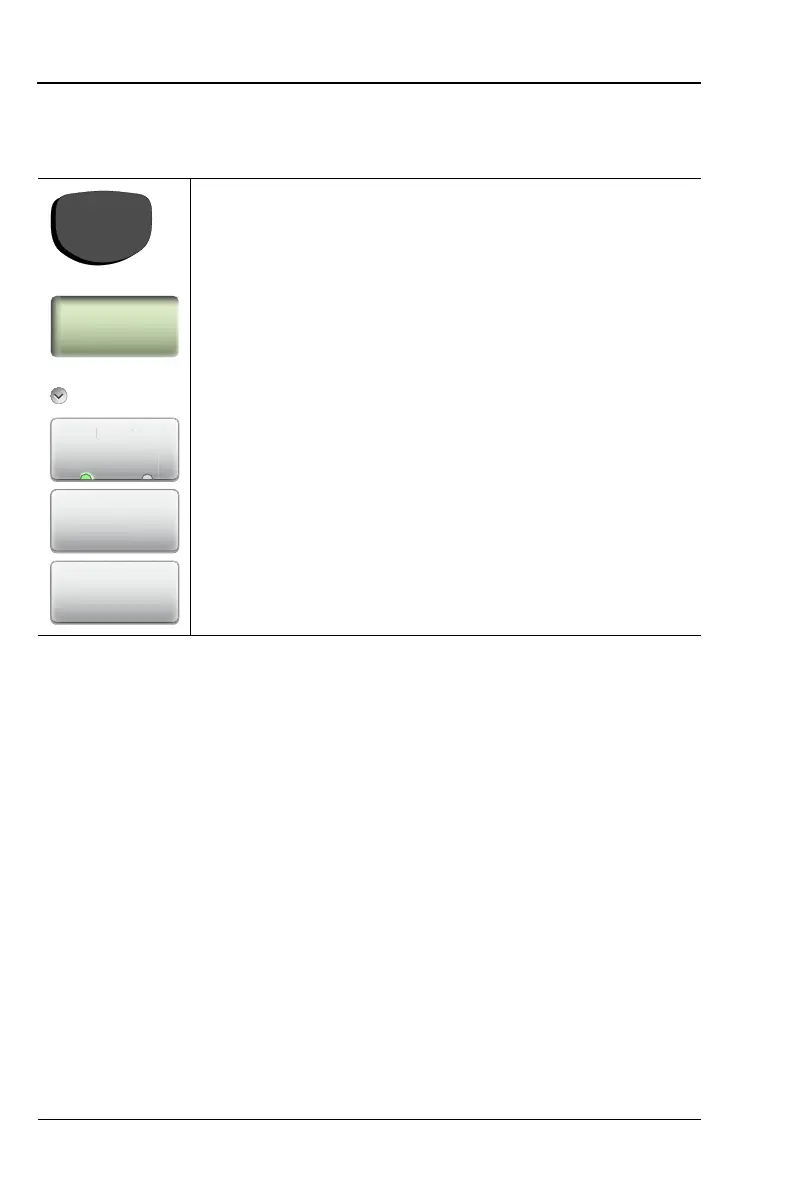

Figure 5-11. Power Meter Limit Menu
