3-3 Overview Cable and Antenna Measurements
3-3 Overview
What is Measured?
Line sweeping is a quality measure of the transmission lines and/or
antenna system. Systems may include cables, connectors, lightning
protectors, tower mounted amplifiers, and antennas (Figure 3-2). Line
sweeping can measure the power losses in the system at the functional
frequencies and measures system impedance and confirms whether the
system meets carrier specifications.
If the system does not meet specification, line sweeping can also locate
components that are reflecting power above specified levels.

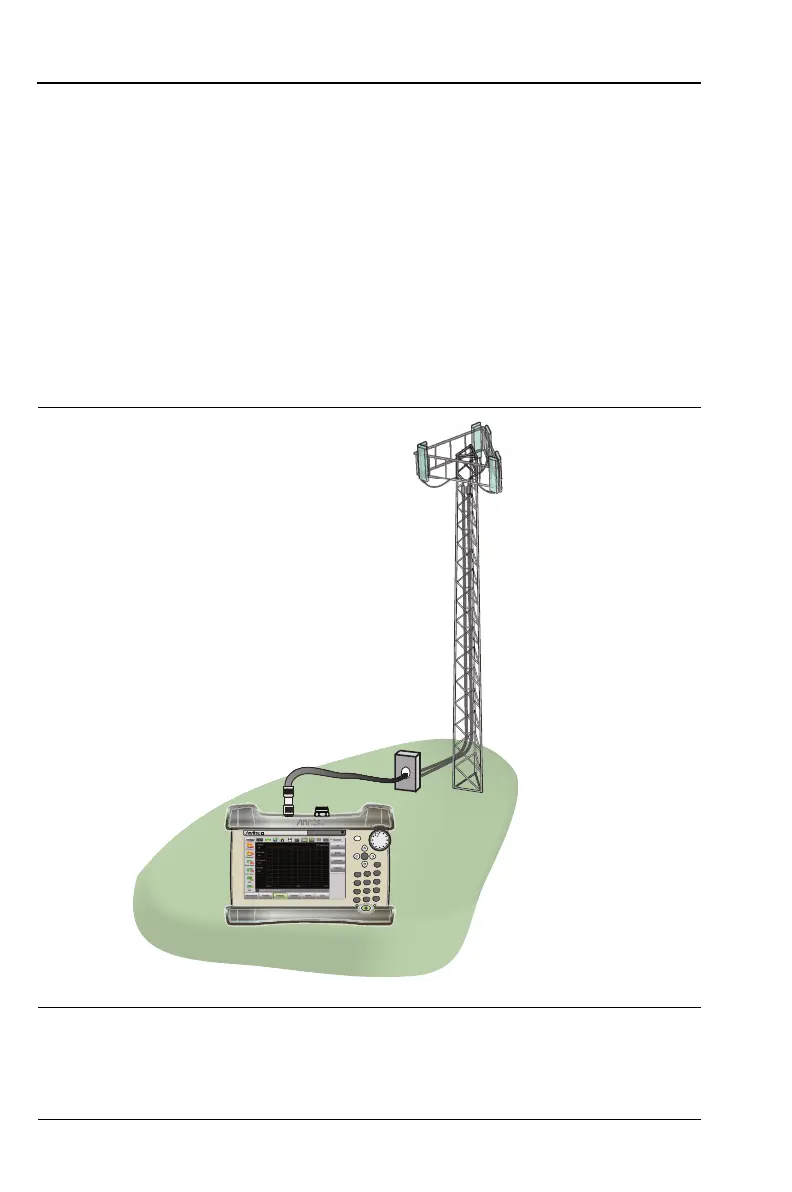

Figure 3-2. Cable and Antenna Line Sweeping
