S331L UG PN: 10580-00321 Rev. M 10-1
Chapter 10 — Battery
Replacement
10-1 Introduction
This chapter provides details and procedures about the Site Master
batteries including replacing the existing batteries.
10-2 Site Master Battery
The batteries that are supplied with the Site Master may need charging
before use. The batteries can be charged using either the AC-DC
Adapter (40-187-R) or the DC adapter (806-141-R). Refer to Figure 2-7
on page 2-17 for a description of battery symbols.
The batteries are charged in the instrument and only removed for
replacement.
Pressing the battery icon will display the current battery
information (Figure 10-1). Press ESC to clear the message.
Note
Use only Anritsu Company approved batteries, adapters, and
chargers with this instrument.

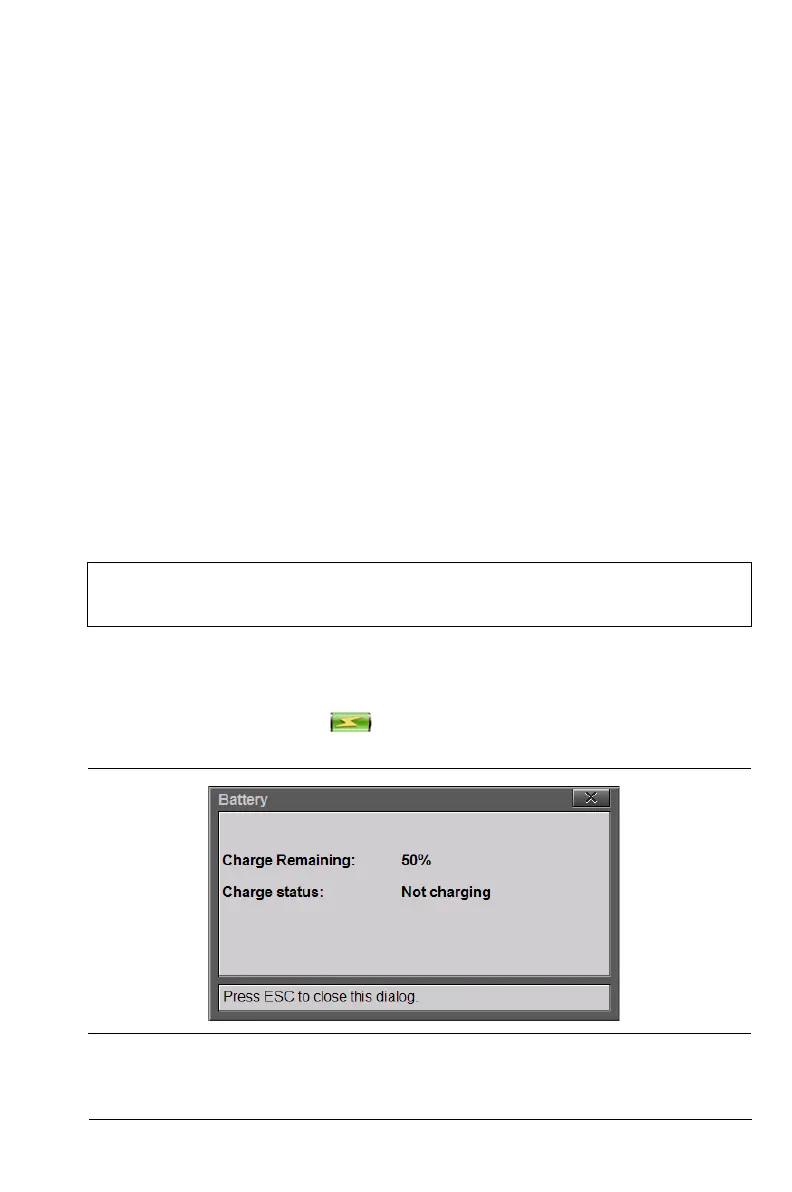

Figure 10-1. Battery Information
