9-26
PN: 10580-00321 Rev. M
S331L UG
9-9
Prese
t
Menu
System O
perations
Figure
9-26.

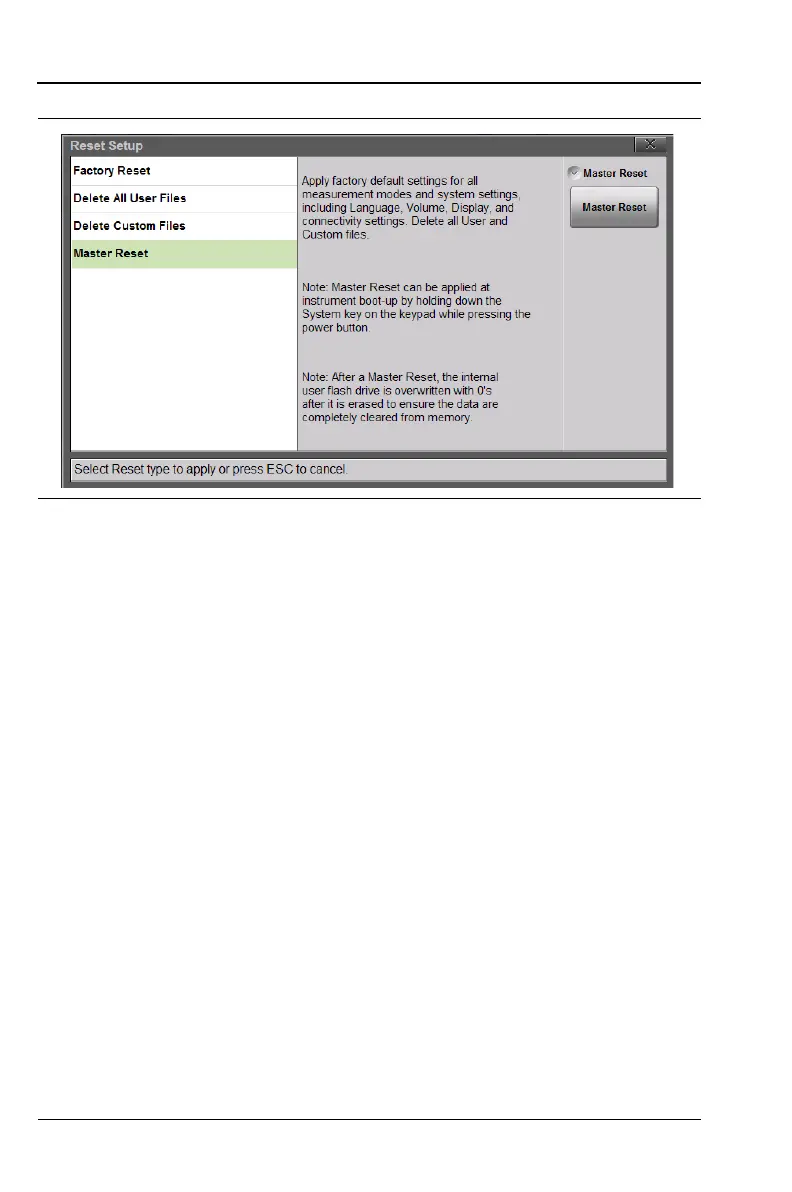

Master Reset
237
239
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1-General Information
11
Introduction
11
About this Manual
11
Document Conventions
12
Additional Documents
12
Contacting Anritsu for Sales and Service
13
Instrument Description
13
Available Options
14
Accessories
14
Battery Information
15
Instrument Care and Preventive Maintenance
16
ESD Caution
16
RF Input Warning
17
Calibration and Annual Verification
17
Secure Environment Workplace
18
Site Master Memory Types
18
Erase All User Files in Internal Memory
19
Usage in a Secure Environment
20
Chapter 2-Instrument Overview
23
Introduction
23
Turning on the Site Master
23
Test Panel Connector Overview
26
Front Panel Overview
28
Front Panel Keys
28
S331L UG PN: 10580-00321 Rev. M
29
Keypad Menu Keys (1 to 9)
31
LED Indicators
33
Touchscreen Display Overview
34
Main Menu Keys
35
Submenu Keys
35
Submenu Button Types
37
Instrument Overview
38
Status Tool Bar
39
System Function Tool Bar
42
S331L UG PN: 10580-00321 Rev. M
43
Dual Display Format
44
Display Modes
46
S331L UG PN: 10580-00321 Rev. M
47
Calibration Symbols
48
Soft Carrying Case
49
Chapter 3-Cable And Antenna Measurements
51
Common RF Terms
52
Overview
54
What Is Measured
54
Why Measure
55
Line Sweeping
56
Calibration
58
Line Sweep Measurements
59
Return Loss/Vswr Measurement
59
Cable Loss Measurement
61
DTF Measurement
63
Advanced Measurements
74
Smith Chart
74
1-Port Phase
76
Transmission (Ext. Sensor)
77
Measurement Setup
78
Frequency
78
Distance
78
Amplitude
78
Sweep
79
Limit Lines
81
Markers
87
Trace
94
Measurement Review
99
C&A Menus
100
Measurement Menu
102
Measurement Menu (Continued)
102
Freq/Dist Menu
104
Freq/Dist Menu (Continued)
105
Windowing Menu
106
Amplitude Menu
107
Calibration Menu
109
Marker Menu
110
Marker Menu (Continued)
111
Limit Menu
112
Limit Menu (Continued)
113
Sweep Menu
114
Trace Menu
115
Other Menus Keys
116
Chapter 4-Classic Mode Operation
117
Introduction
117
Marker Menu
122
Marker Menu (Continued)
123
Limit Menu
124
Chapter 5-Internal Power Meter
127
Overview
127
Introduction
128
General Measurement Setup
129
Connection and Offset
129
Set the Measurement Frequency
129
Setting the Amplitude
129
Changing the Display Units
131
Displaying Relative Power
131
Setting Upper and Lower Limits
133
Average Menu Options
135
Calibration
135
Power Meter Menus
137
Frequency Menu
138
Amplitude Menu
138
Calibration Menu
139
Average Menu
139
Limit Menu
140
Sweep Menu
140
Trace Menu
140
Other Menus Keys
140
Chapter 6-High Accuracy Power Meter
141
Overview
141
Introduction
142
General Measurement Setup
143
Connection
143
Connection and Offset
144
Set the Measurement Frequency
144
Setting the Amplitude
144
Changing the Display Units
146
Displaying Relative Power
146
Setting Upper and Lower Limits
148
Average Menu Options
150
Calibration
150
Zero Failure
151
MA24105A Inline Power Sensor
152
Introduction
152
In-Line Sensor Setup
153
Displayed Measurements
157
Summary View
158
Displaying Relative Power
159
Limits for Forward and Reverse Measurements
160
High Accuracy Menus
161
Frequency Menu
162
Amplitude Menu
162
Calibration Menu
163
Average Menu
163
Limit Menu
164
MA24105A Menus
165
Display Setup Menu
166
Forward Menu
167
Reverse Menu
168
Frequency Menu
169
Amplitude Menu
170
Calibration Menu
171
Average Menu
171
Limit Menu
172
Sweep Menu
172
Trace Menu
173
Other Menus Keys
173
Chapter 7-Calibration
175
Introduction
175
Calibration Methods
177
Calibration Procedures
179
Calibration Procedure
179
Cal Info
180
Temperature Window
181
Save and Recall Calibration Coefficients
181
Instacal Module Verification
182
Calibrate Menu
183
Chapter 8-File Management
185
Introduction
185
Overview
185
File Types
186
Save File
186
File Name
187
File Type
190
Save Location
191
Recall File
192
Recall a Measurement
192
Recall a Setup
194
Recall/Preview a Screen Shot
194
Recall a VIP Measurement (VIP Mode Only)
196
Recall a VIP Image (VIP Mode Only)
197
Rename File
198
Copy and Paste File
199
Delete Files
202
Create a Folder
203
File Menu Overview
205
File Menu
206
Save Menu
207
File Management
208
Recall Menu
209
File Mgmnt Menu
211
Chapter 9-System Operations
213
Introduction
213
Self Test
213
Touch Menu
215
Section 9-3 "Touch Menu
215
Help Menu
217
Section 9-4 "Help Menu
217
Updating the Site Master Firmware
221
Section 9-5 "Updating the Site Master Firmware
221
Screen Shot Capture
222
Section 9-6 "Screen Shot Capture
222
System Menu Overview
224
Section 9-7 "System Menu Overview
224
System Menu
225
Section 9-8 "System Menu
225
Status Menu
227
Time and Date Menu
228
Display/Audio Menu
230
GPS Menu
232
Ethernet Configuration Menu
234
Preset Menu
235
Section 9-9 "Preset Menu
235
Chapter 10-Battery Replacement
239
Introduction
239
Site Master Battery
239
Battery Replacement
240
Chapter 11-Anritsu Tool Box
243
Introduction
243
Line Sweep Tools (LST)
243
Easytest Tools
244
Chapter 12-Video Inspection Probe (VIP)
245
Introduction
245
Setup and Operation Summary
246
VIP Setup
247
Connect the VIP
247
Launch the VIP Application
248
VIP Test Settings
248
Operation
250
VIP Image Analysis
250
VIP Reporting
253
VIP Menus
255
Setup Menu
256
Measurement Menu
257
File Menu
258
Report Menu
259
Appendix A-Instrument Messages
261
Introduction
261
A-1 Introduction
261
Appendix B-Glossary of Terms
265
Introduction
265
B-1 Introduction
265
Glossary Terms
267
Index
279
