2-10 PN: 10580-00321 Rev. M S331L UG
2-4 Front Panel Overview Instrument Overview

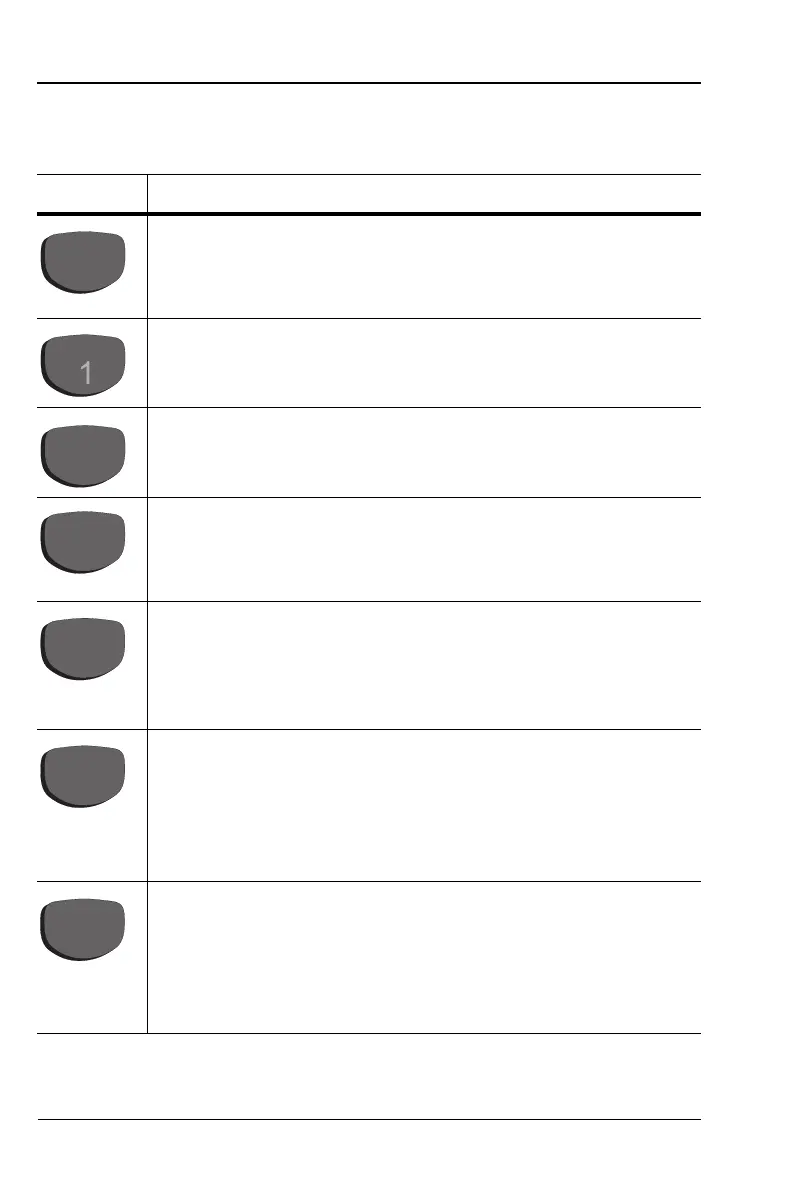

Table 2-1. Site Master Keypad Functions (1 of 2)
Menu Description
Displays options to view information about the instrument
status, an on screen list of Frequently Asked Questions
(FAQ) and the User Guide in .html format. Refer to
Chapter 9.
Allows the user to save, recall, copy, and delete files in
internal memory or an external USB flash drive. Refer to
Chapter 8.
Opens the touchscreen calibration function. Refer to
Chapter 9.
Displays the Sweep Setup menu to adjust Sweep Type.
Sweep settings are displayed left of the graticule. Function
varies by measurement mode. Refer to Chapter 3 for Cable
& Antenna mode and Chapter 5 for Power Meter mode.
Captures an image of the current display and saves a .png
file to internal memory. Files are named based on the
measurement type and automatically saved to internal
memory in the ScrnShots folder. Refer to “Screen Shot
Capture” on page 9-10 for additional information.
Displays the Trace menu. Trace operations include Copy
Trace to Memory, Display Trace only, Display Memory only,
Display Trace and Memory. Trace math functions include
Trace – Memory, Trace + Memory, (Trace + Memory) / 2, or
none. Not applicable in Power Meter mode. Refer to “Trace”
on page 3-44 for detailed instructions.
Displays the Limit menu to set user defined limits. Limit
Alarms and Pass/Fail messages may be activated to indicate
when a limit has been exceeded by the active measurement.
Refer to Chapter 3 for Cable & Antenna mode and Chapter 5
for Power Meter mode. Refer to “Limit Menu” on page 4-8 for
the Classic mode Limit menu.
To Next Page
