Cable and Antenna Measurements 3-4 Line Sweep Measurements
Custom Cables can be created and uploaded to the instrument using
Line Sweep Tools (LST). Instructions for using the LST Cable Editor
are available in the software Help menu. The latest version of LST is
available from the Anritsu web site: http://www.anritsu.com/.
The name, propagation velocity, and cable loss of the selected cable are
displayed below the trace window during distance measurements
(Measurement > DTF Return Loss or DTF VSWR) as shown in
Figure 3-11.

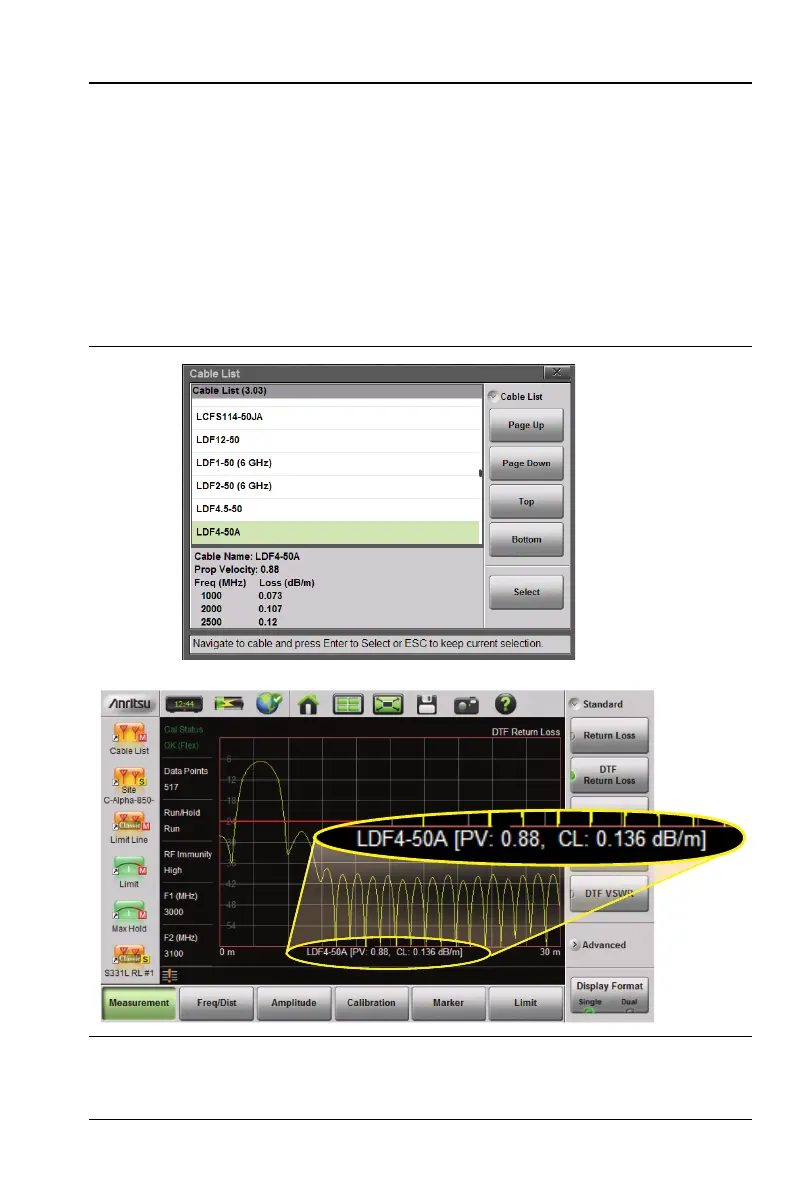

Figure 3-11. Cable List Selection Displayed Under Graticle
