Anritsu Site Master S331L User Manual

S331L UG PN: 10580-00321 Rev. M 3-23
Cable and Antenna Measurements 3-4 Line Sweep Measurements

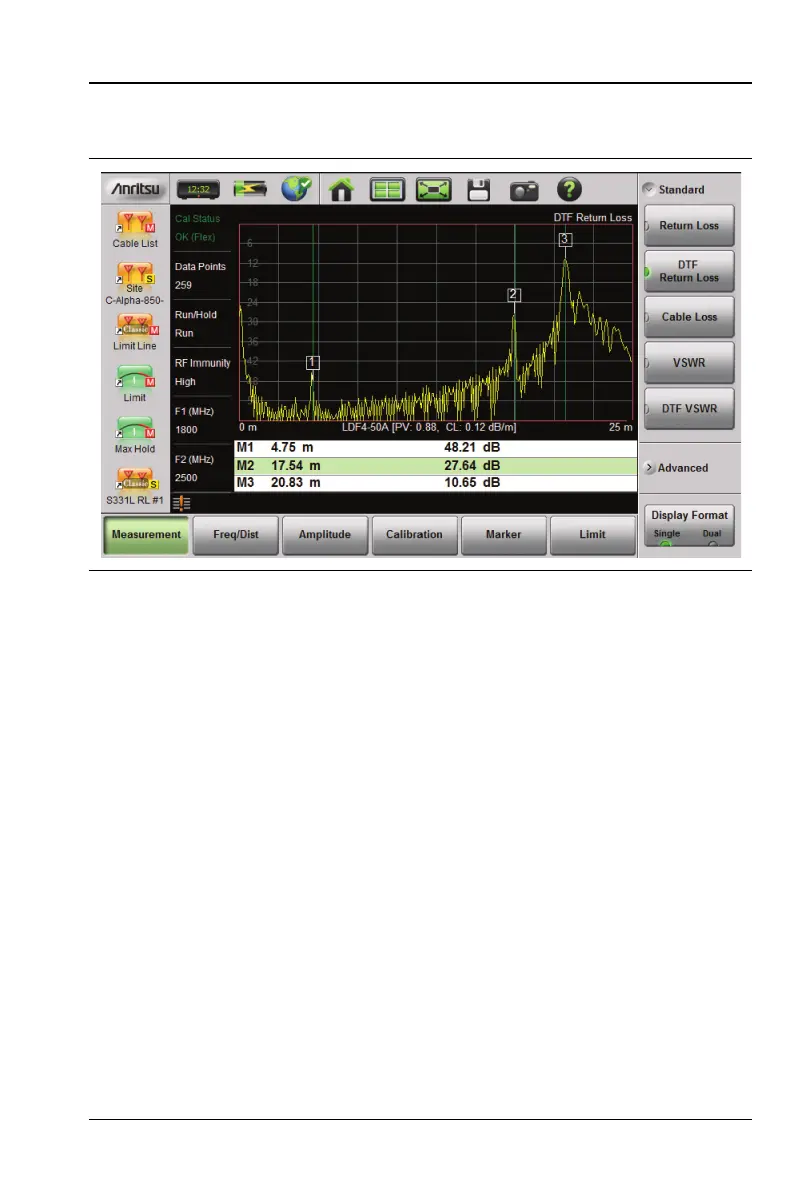

Figure 3-18 shows the same system with the antenna reattached. The
reflection of the jumper connector in now reduced to 27.64 dB.
Figure 3-18. DTF Return Loss Measurement (Antenna at 20.83 m)
