S331L UG PN: 10580-00321 Rev. M 3-43
Cable and Antenna Measurements 3-6 Measurement Setup
In Figure 3-34, Marker M5 is set for Tracking a Valley between markers
M1 and M2. Marker M6 is Tracking a Valley between markers M3 and
M4. The table of markers (below the sweep window in Figure 3-34)
shows only 4 markers, but the table can be expanded or reduced by
tapping on the table.

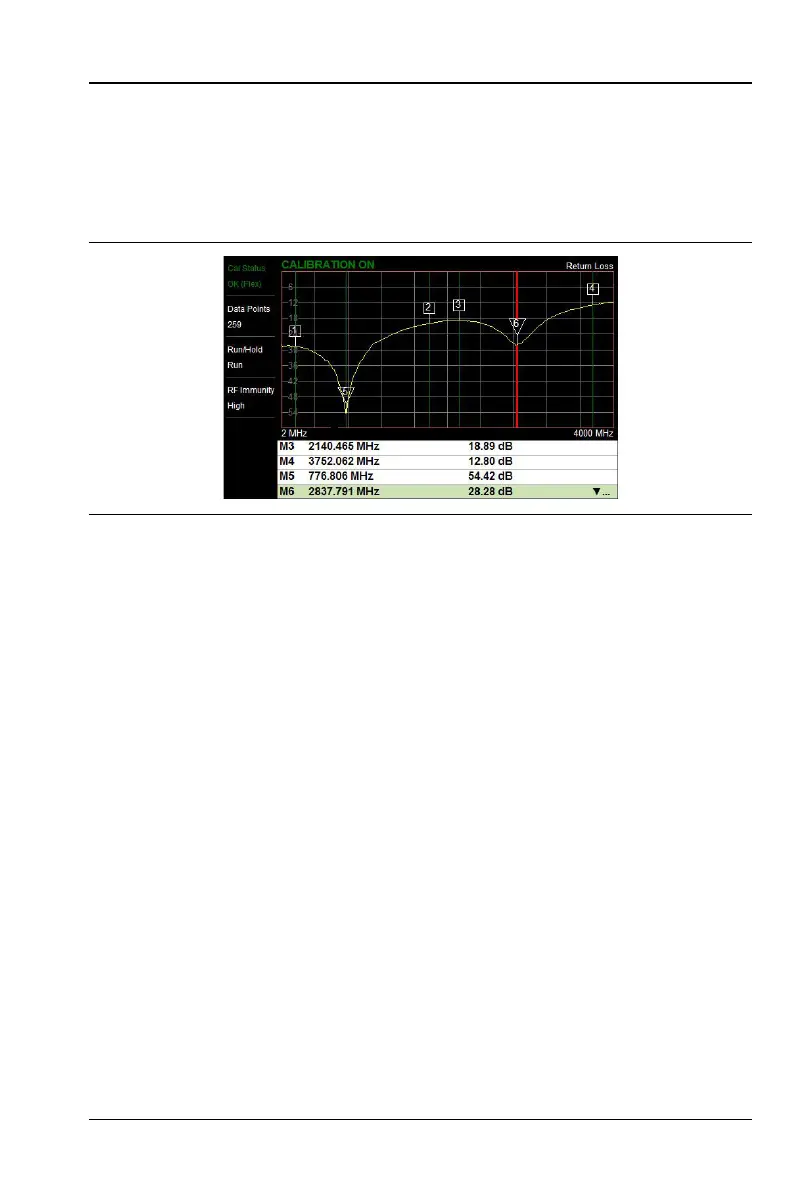

Figure 3-34. Tracking a Valley Between Markers
