B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
173
Parts belonging to siphon cutting system are shown in the following exploded assembly
drawing (1522-siphon cutter intermediate hose; 470-siphon elbow; 8355 and 471-drain
hose assembly).

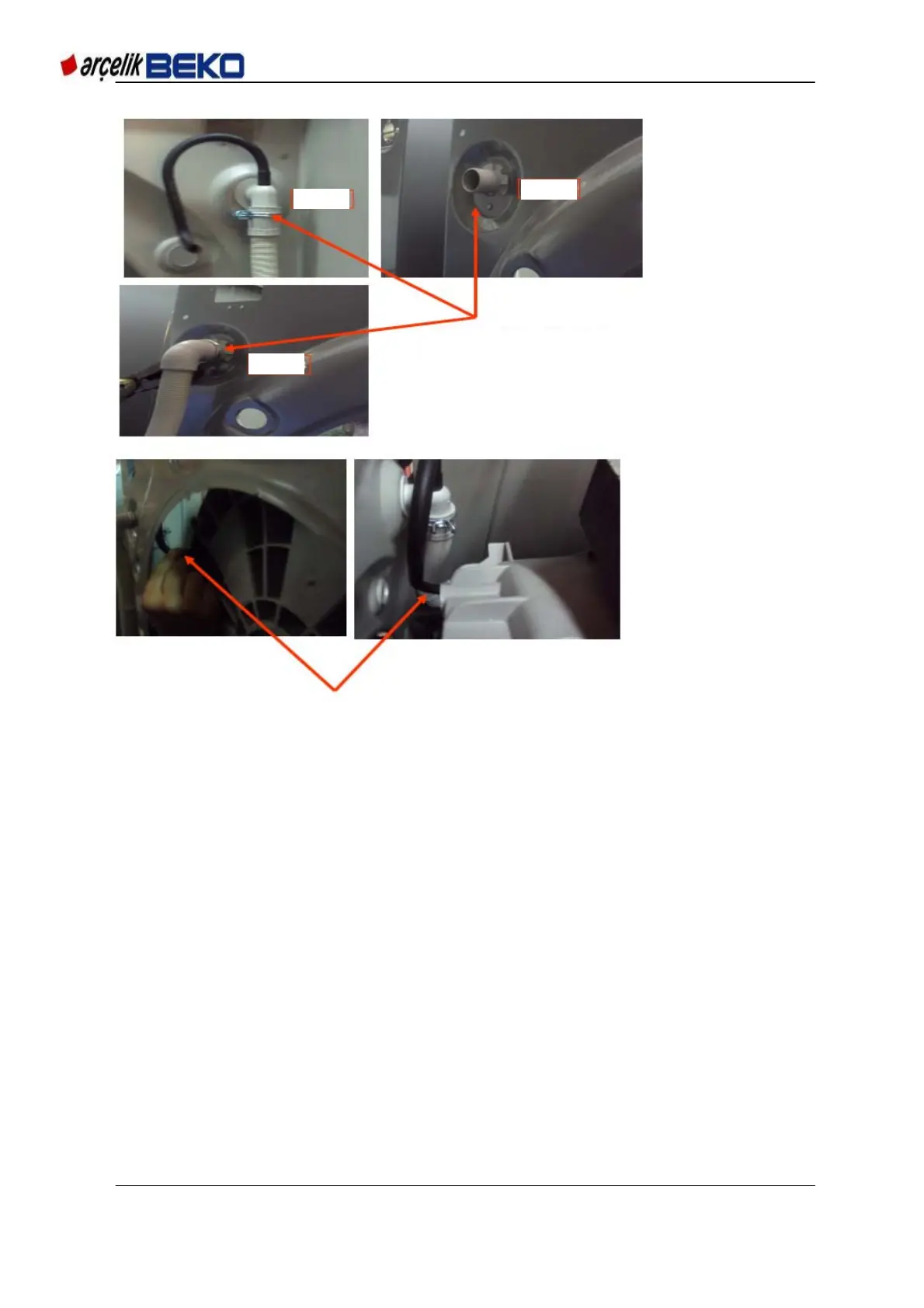

Drain hose as 2 pieces is attached to
the body assembly. Drain hose
attachment is made in the oder shown
in the picture.
Siphon cutter intermediate hose is attached to the drum siphon
cutter empty part.
Picture 1
Picture 2
Picture 3
