The unit offers “Hold” and “Busy” LED signals in addition to the zone LED’s, and these features allow
an easy identification of Selection/Busy signals for users. In addition, to meet the compliance with
EN 54-16, POWER, FAULT and EVAC indicators are provided with.

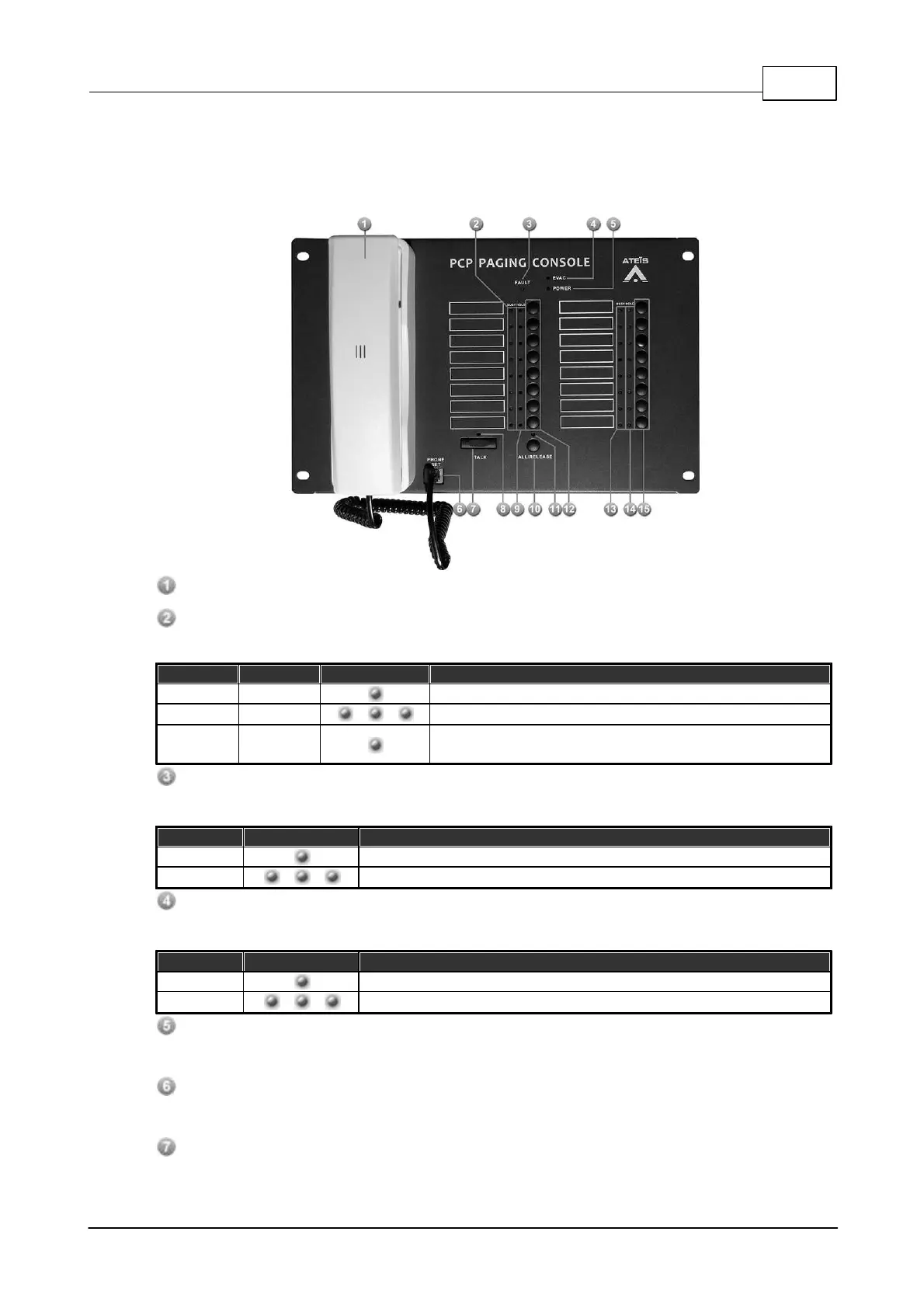

3.2.1.8.1 Control Panel
A telephone styled microphone for paging.
Busy Indicator (1~8):
Show the status of zone:
Color
Status
Frequency
Activity
Red
Permanent
Priority of the zone is lower than other sources.
Green
Blinking
° °
Priority of the zone is higher than other sources.
Green
Permanent
The zone only desired for paging is not using by other
sources.
Fault Indicator:
To display fault status of system. The following table lists the states of fault:
Status
Frequency
Activity
Permanent
There are faults in audio processor.
Blinking
° °
Lost communication with audio processor.
EVAC Indicator:
Light up when the system is under evacuation paging.
Status
Frequency
Activity
Permanent
System is under evacuation paging.
Blinking
° °
PCP does not do a "Plug-in" in Ateis Studio before using.
Power Indicator:
Light up when the PCP is powered on.
Microphone Connector:
A phone jack connector for connection of telephone styled microphone.
Talk Button:
Press this button to request paging. There are two modes for this button: push to talk and lock.
