IDA8 Global-Net User Manual208
© 2020, ATEÏS. All rights reserved.
It is signalled by a yellow LED and it's available on dry contact with 5 sec delay (fail-safe) for
remote monitoring.
If the mains is not serve or < 185 V+/-5% as long as the charger was switched off, <165V+/-
5% if it was switched on.
If the mains fuse is blown.
If the charger is faulty.
If the internal temperature is too high.

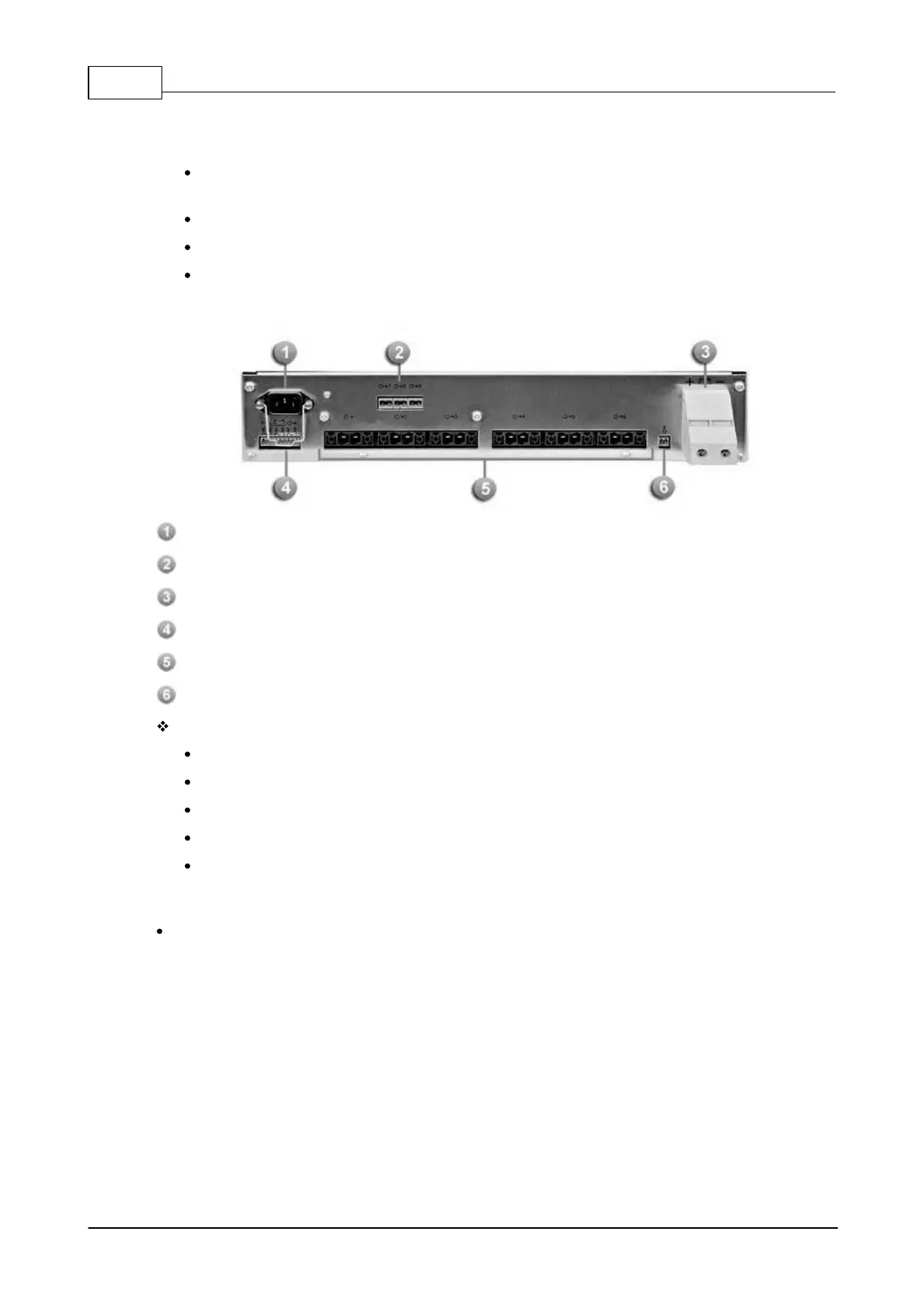

3.5.2.2 Rear Panel
Main power socket
Auxiliary output terminals
Battery terminal
Output contacts
Main output terminals
Temperature sensor
Connection Specifications
Mains: 2.5 mm²
Battery: 16 to 50 mm²
Main outputs (outputs 1 to 6): 16 mm²
Auxiliary outputs (outputs 7 to 9): 2.5 mm²
Alarm reports (plug-in): 1.5 mm²
3.5.2.3 Installation
Block diagram:
To secure from the battery with a fuse with low resistance.
