Open (Lo) to Close (Hi) or from Close (Hi) to Open (Lo).
Log Enabled: Tick the checkbox to record the logs on Machine Log list when the evac input of
IDA8 processor has been triggered.
Activation: This parameter to determine under what condition the hardware will generate 1 output.
There are two choices:
o Open (Lo): The component output=1 when the contact open (contact mode) or voltage low
(voltage mode).
o Close (Hi): The component output=1 when the contact close (contact mode) or voltage hi
(voltage mode).
Latch Mode: Tick the checkbox to enable the latch mode, which it requires to input state from Low
to Hi to activate the action, and input state from Low to Hi again to stop the action.
Monitor Mode:
o Voltage: The logic output component is triggered by a voltage polarization change.
o Contact With Monitor: The logic output component is triggered by opening/closing the
connector of +/- Pin on rear panel, and this will detect the faults and display on front panel.
Please see Evacuation Inputs(Contact Mode) for details.
o Contact Without Monitor: The logic output component is triggered by opening/closing the
connector of +/- Pin on rear panel without detection/monitoring.

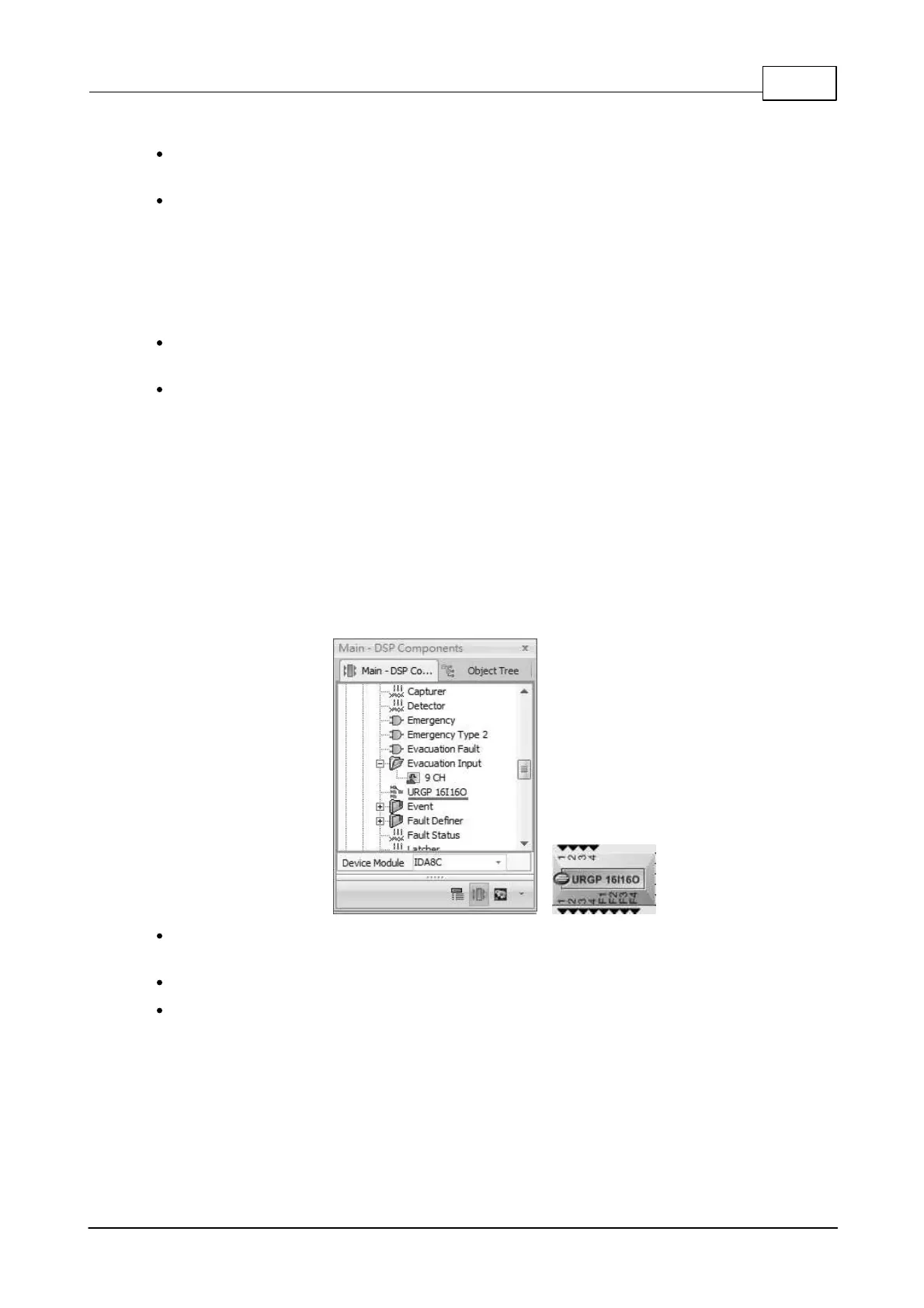

6.13.9 URGP 16I16O
This component corresponds to URGP peripheral devices, which offers more logic input channels of
audio processor.
Input Pins: When the Input Pin is high, the Evacuation Output channel on URGP 16I16O will
output 5VDC.
Output Pins: The input status of Evacuation Input channel on URGP 16I16O.
Fault Pins: The fault status of Fault Input channel on URGP 16I16O.
