Ateis IDA8 Series User Manual

IDA8 Global-Net User Manual370
© 2020, ATEÏS. All rights reserved.

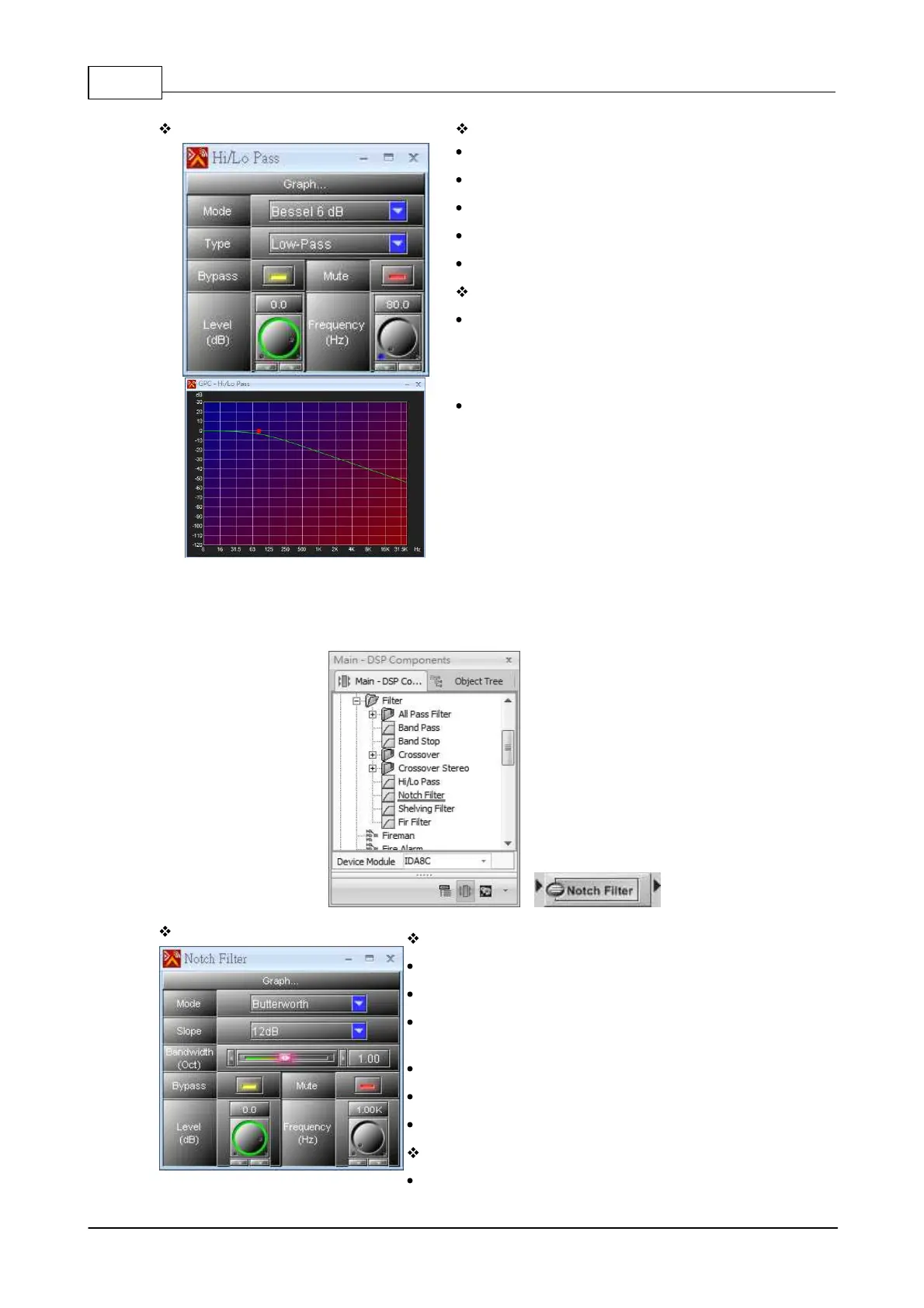

Control Window
Element Description
Mode: The type of filtering.
Type: Low or High pass.
Bypass/Mute: Disable/mute the filter's module.
Level: The gain of signal.
Frequency: The frequency of cut.
Graphical Control Window
Axis:
o X: Frequency of output signal (Hz).
o Y: Level of input signal (dB).
Control Points:
o Red: Adjust element Frequency (Horizontal) and
Level (Vertical).
6.6.6 Notch Filter
A notch filter is a band-stop filter with a narrow stop band (high Q factor). It works in an opposite
function to Band Pass component.
Control Window
Element Description
Mode: The type of filtering.
Slope: The slope of attenuation.
Bandwidth: The difference between the upper and lower cut
of frequency.
Bypass/Mute:Disable/mute the filter's module.
Level: The gain of filter's module.
Frequency: The center frequency to be cut.
Graphical Control Window
Axis:
