Battery terminal
Output contacts
Main output terminals
Temperature sensor
Connection Specifications
Mains: 2.5 mm²
Battery: 16 mm²
Amplifiers load (outputs 1 and 2): 16 mm²
Controllers load (outputs 3 to 5): 2.5 mm²
Alarm reports (plug-in): 1.5 mm²
3.5.1.3 Installation

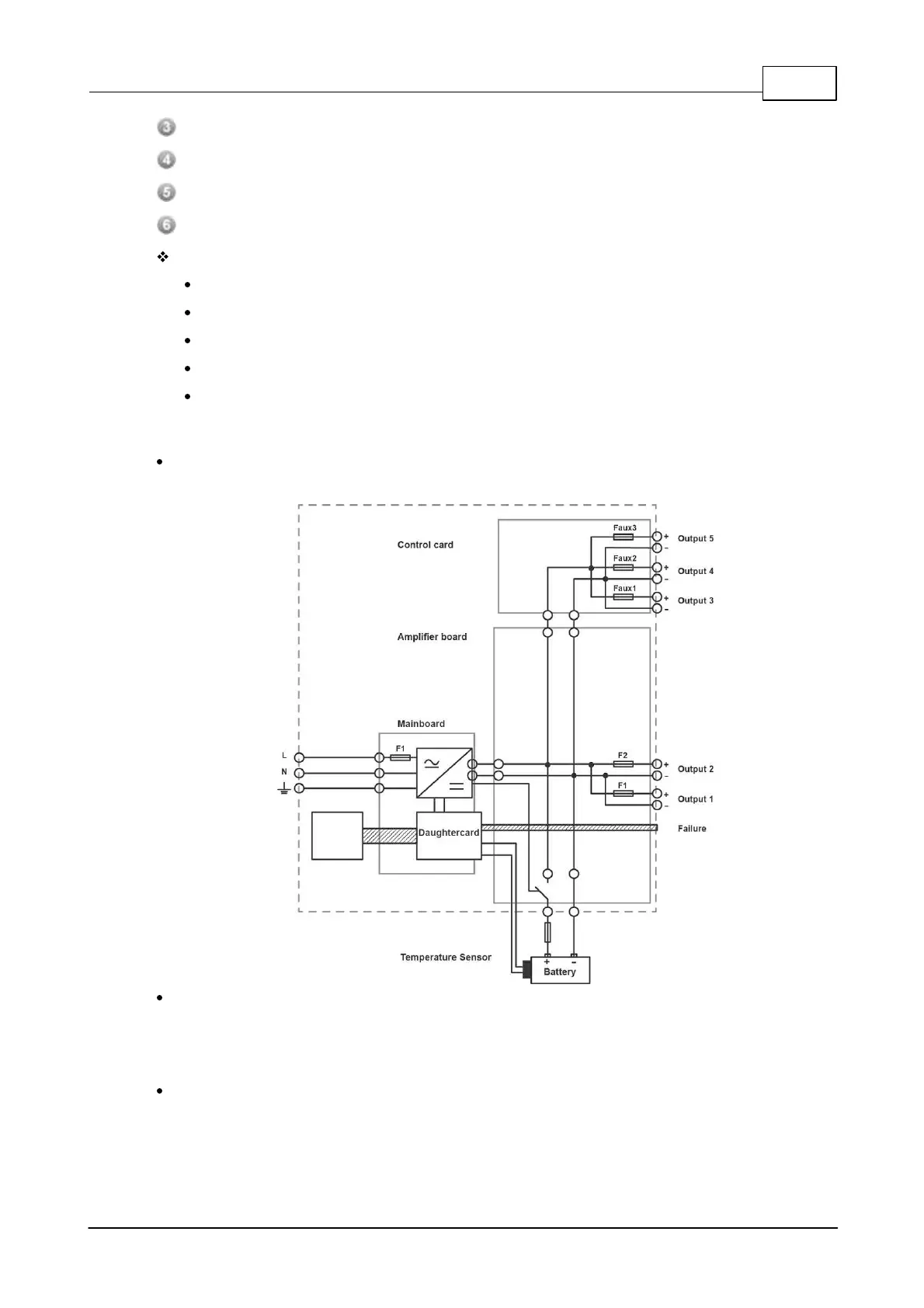

Block Diagram:
To secure from the battery with a fuse with low resistance.
Batteries:
The battery temperature sensor must be placed as close to the battery as possible without
being in physical contact with it. For example, it may be fixed on the battery cables by mean of
the two tire wraps fitted.
Battery wiring instructions:
The power supply takes a resistance measurement of the battery including connections every 4
hours.
The trigger threshold of the fault is 50 mW ±10 %.
